12.4.7.2 Function block
M13500-3 v5
SXCBR
BLOCK
LR_SWI
OPEN
CLOSE
BL_OPEN
BL_CLOSE
BL_UPD
POSOPEN
POSCLOSE
CBOPCAP
TR_OPEN
TR_CLOSE
RS_CNT
EEH_WARN
EEH_ALM
XIN*
XPOS
EXE_OP
EXE_CL
OP_BLKD
CL_BLKD
UPD_BLKD
OPENPOS
CL OSEPOS
TR_POS
CNT_VAL
L_CAUSE
EEHE ALTH
CBOPCAP
IEC05000338-4-en.vsdx
IEC05000338 V5 EN-US

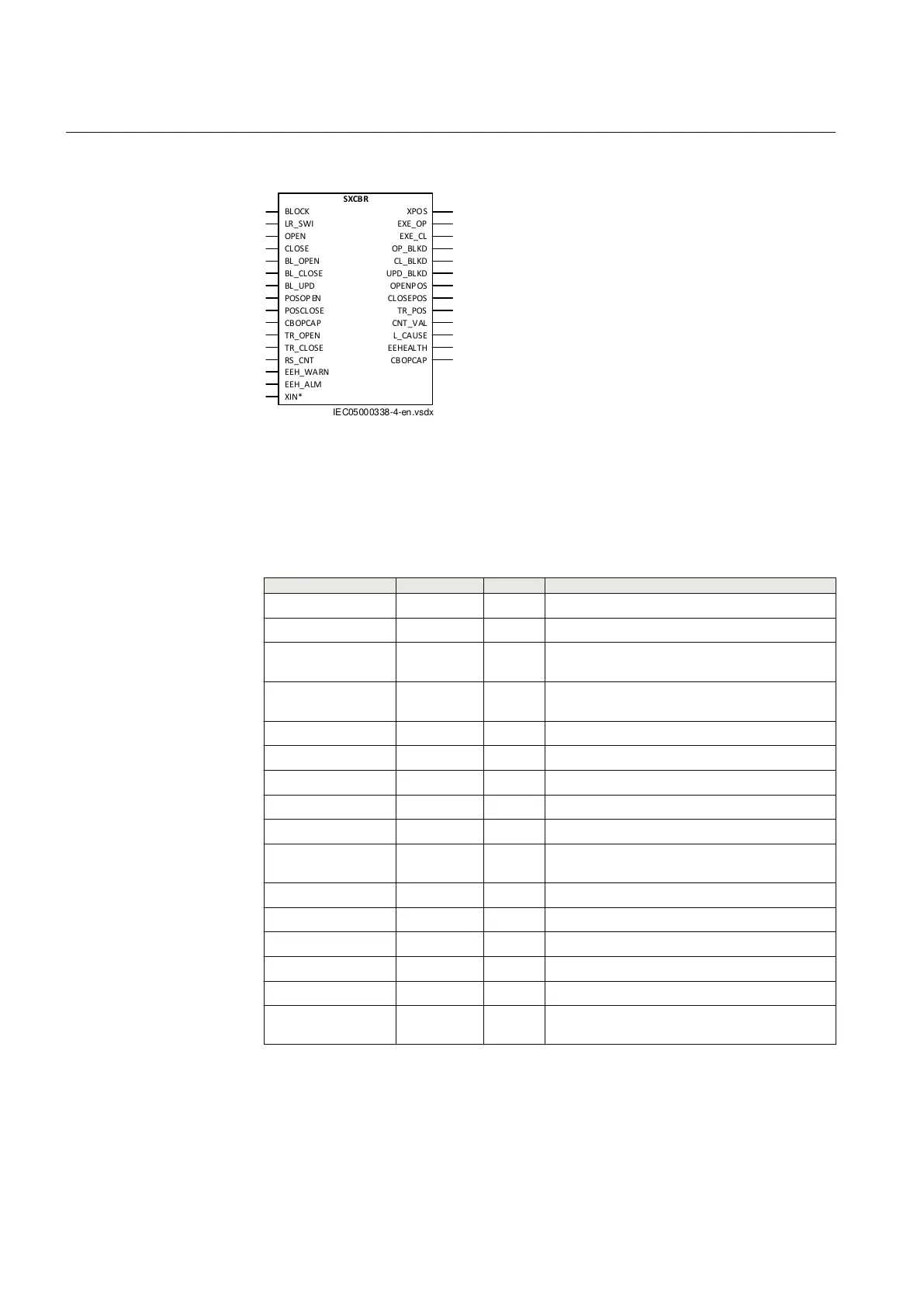

Figure 179: SXCBR function block
12.4.7.3 Signals
PID-6799-INPUTSIGNALS v2
Table 198: SXCBR Input signals
Name
Type Default Description
BLOCK BOOLEAN 0 Block of function
LR_SWI BOOLEAN 0 Local/Remote switch indication from switchyard
OPEN BOOLEAN 0 Pulsed signal used to immediately open the
switch
CLOSE BOOLEAN 0 Pulsed signal used to immediately close the
switch
BL_OPEN BOOLEAN 0 Signal to block the open command
BL_CLOSE BOOLEAN 0 Signal to block the close command
BL_UPD BOOLEAN 0 Steady signal for block of the position updating
POSOPEN BOOLEAN 0 Signal for open position of apparatus from I/O
POSCLOSE BOOLEAN 0 Signal for close position of apparatus from I/O
CBOPCAP INTEGER 3 Breaker operating capability 1 = None, 2 = O, 3 =
CO, 4 = OCO, 5 = COCO, 6+ = More
TR_OPEN BOOLEAN 0 Signal for open position of truck from I/O
TR_CLOSE BOOLEAN 0 Signal for close position of truck from I/O
RS_CNT BOOLEAN 0 Resets the operation counter
EEH_WARN BOOLEAN 0 Warning from external equipment
EEH_ALM BOOLEAN 0 Alarm from external equipment
XIN GROUP
SIGNAL
- Execution information from CSWI
