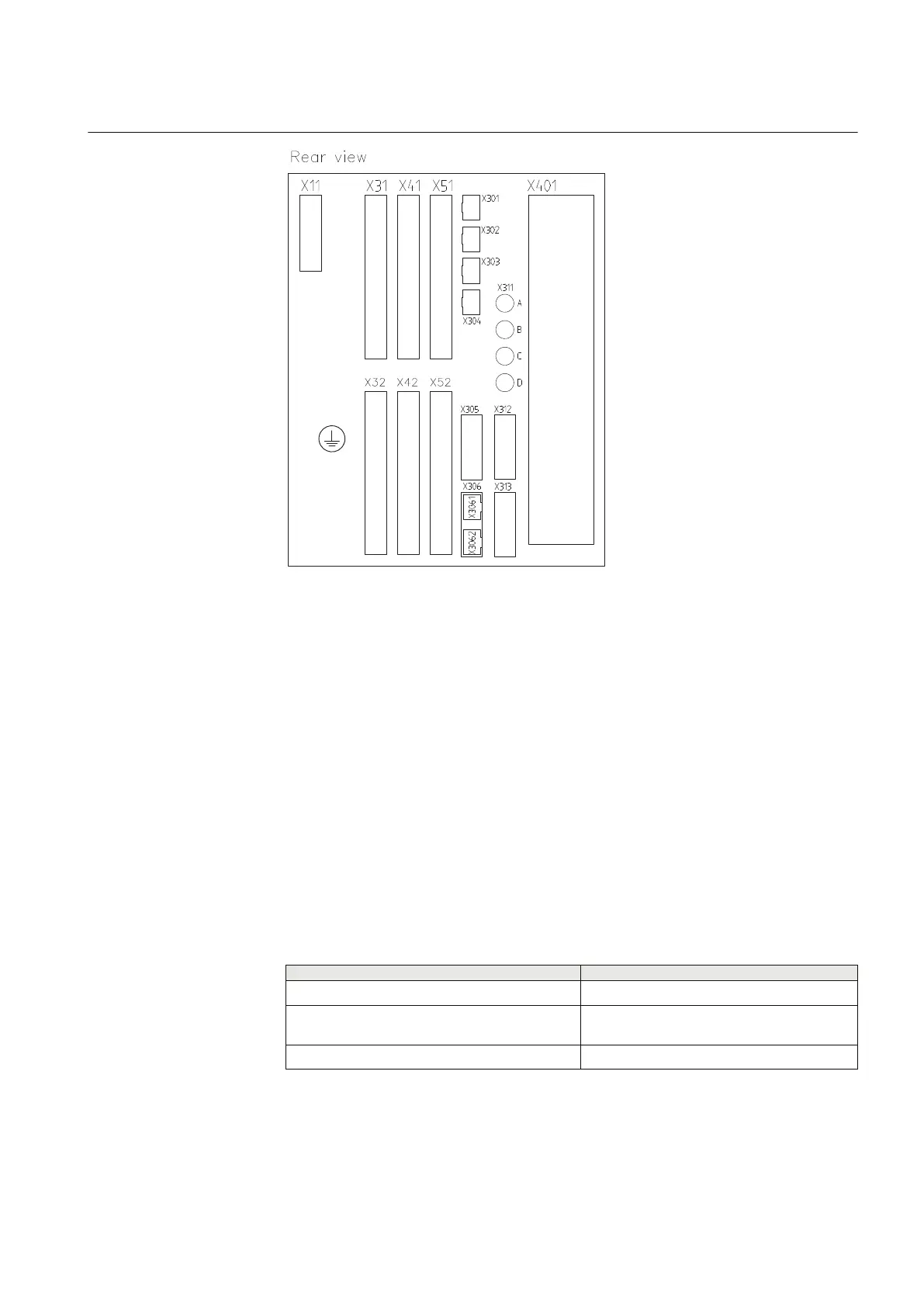

Figure 336: Rear view of 1/2 x 19” casing with 1 TRM slot
There are two types of IO connectors: snap-in connector for plastic fibre cables and
ST/bayonet connector for glass fibre cables. The SLM can be equipped with either
type or connector or with a combination of both types of connectors. This is
identified with a tag.
Connect the incoming optical fibre to the RX receiver input, and the outgoing
optical fibre to the TX transmitter output. Pay special attention to the instructions
concerning handling and connection of fibre cables.
For setting the transfer rate (baud rate) and slave number, please refer to the
Application manual and Commissioning manual respectively.
18.7.5 Technical data
IP14404-1 v1
M11901-1 v2
Table 499: SPA communication protocol
Function
Value
Protocol SPA
Communication speed 300, 1200, 2400, 4800, 9600, 19200 or 38400
Bd
Slave number 1 to 899
1MRK 505 394-UEN A Section 18
Station communication
Line differential protection RED650 2.2 IEC 705
Technical manual
