18.4.11 Horizontal communication via GOOSE for interlocking
GOOSEINTLKRCV
SEMOD173197-1 v2
18.4.11.1 Functionality
GUID-92ECE152-892C-4214-95DE-B92718689434 v2
GOOSE communication can be used for exchanging information between IEDs via
the IEC 61850-8-1 station communication bus. This is typically used for sending
apparatus position indications for interlocking or reservation signals for 1-of-n
control. GOOSE can also be used to exchange any boolean, integer, double point
and analog measured values between IEDs.
18.4.11.2 Function block
SEMOD173210-4 v5
IEC07000048-4-en.vsd
GOOSEINTLKRCV
BLOCK
^SRCRESREQ
^SRCRESGR
^SRCAPP1
^S RCAPP2
^S RCAPP3
^S RCAPP4
^S RCAPP5
^SRCAPP6
^SRCAPP7
^SRCAPP8
^SRCAPP9
^SRCAPP10
^SRCAPP11
^SRCAPP12
^SRCAPP13
^SRCAPP14
^SRCAPP15
^RESREQ
^RESGRANT
^APP1_OP
^APP1_CL
APP1VAL
^APP2_OP
^APP2_CL
APP2VAL
^APP3_OP
^APP3_CL
APP3VAL
^APP4_OP
^APP4_CL
APP4VAL
^APP5_OP
^APP5_CL
APP5VAL
^APP6_OP
^APP6_CL
APP6VAL
^APP7_OP
^APP7_CL
APP7VAL
^APP8_OP
^APP8_CL
APP8VAL
^APP9_OP
^APP9_CL
APP9VAL
^APP10_OP
^APP10_CL
APP10VAL
^APP11_OP
^APP11_CL
APP11VAL
^APP12_OP
^APP12_CL
APP12VAL
^APP13_OP
^APP13_CL
APP13VAL
^APP14_OP
^APP14_CL
APP14VAL
^APP15_OP
^APP15_CL
APP15VAL
COMMVALID
TEST
IEC07000048 V4 EN-US

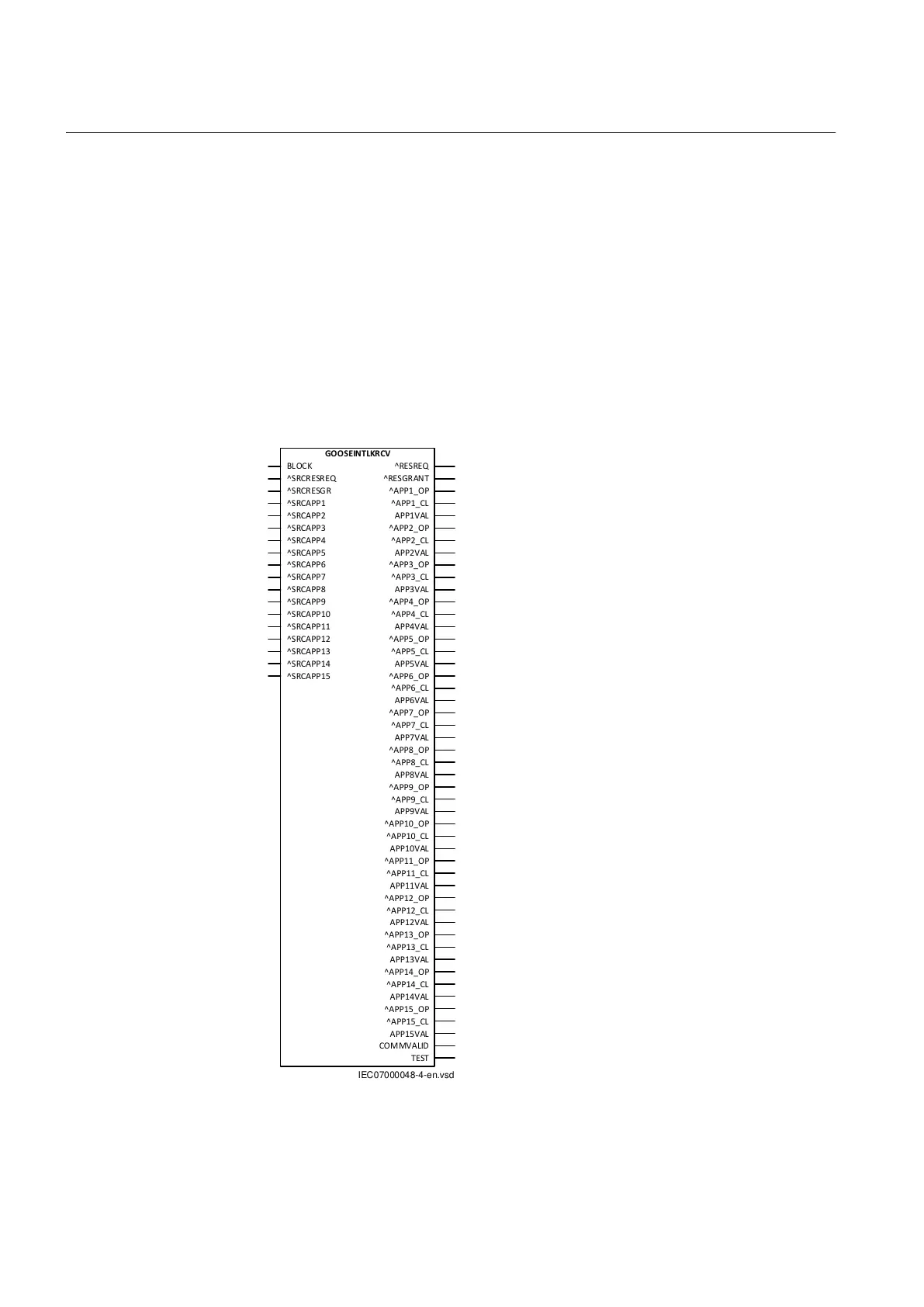

Figure 324: GOOSEINTLKRCV function block
