Tube-head characteristics
Model
MPV 05
Manufacturer
de Götzen S.r.l.
21057 Olgiate Olona (VA) - Italy
Maximum tube voltage
86 kVp
kVp accuracy
± 8 %
Maximum anodic current
12.5 mA
Anodic current accuracy
± 10 %
Duty cycle
1 : 16
Reference loading conditions related
to maximum energy input to the
anode
2812.5 mAs/h @ 86 kVp
Nominal power
1.075 kW (86 kVp – 12.5 mA)
Total filtration
≥ 2.5 mm Al eq. @ 86 kVp
HVL (Half value layer)
> 3.2 mm Al eq. @ 86 kVp
Transformer insulation
Oil bath
Target angle and reference axis
See Figure 5
Cooling
By convection
Leakage radiation at 1 m
< 0.5 mGy/h @ 86 kVp – 12.5 mA – 3s
duty cycle 1/16
Tube-head maximum thermal capacity
310kJ

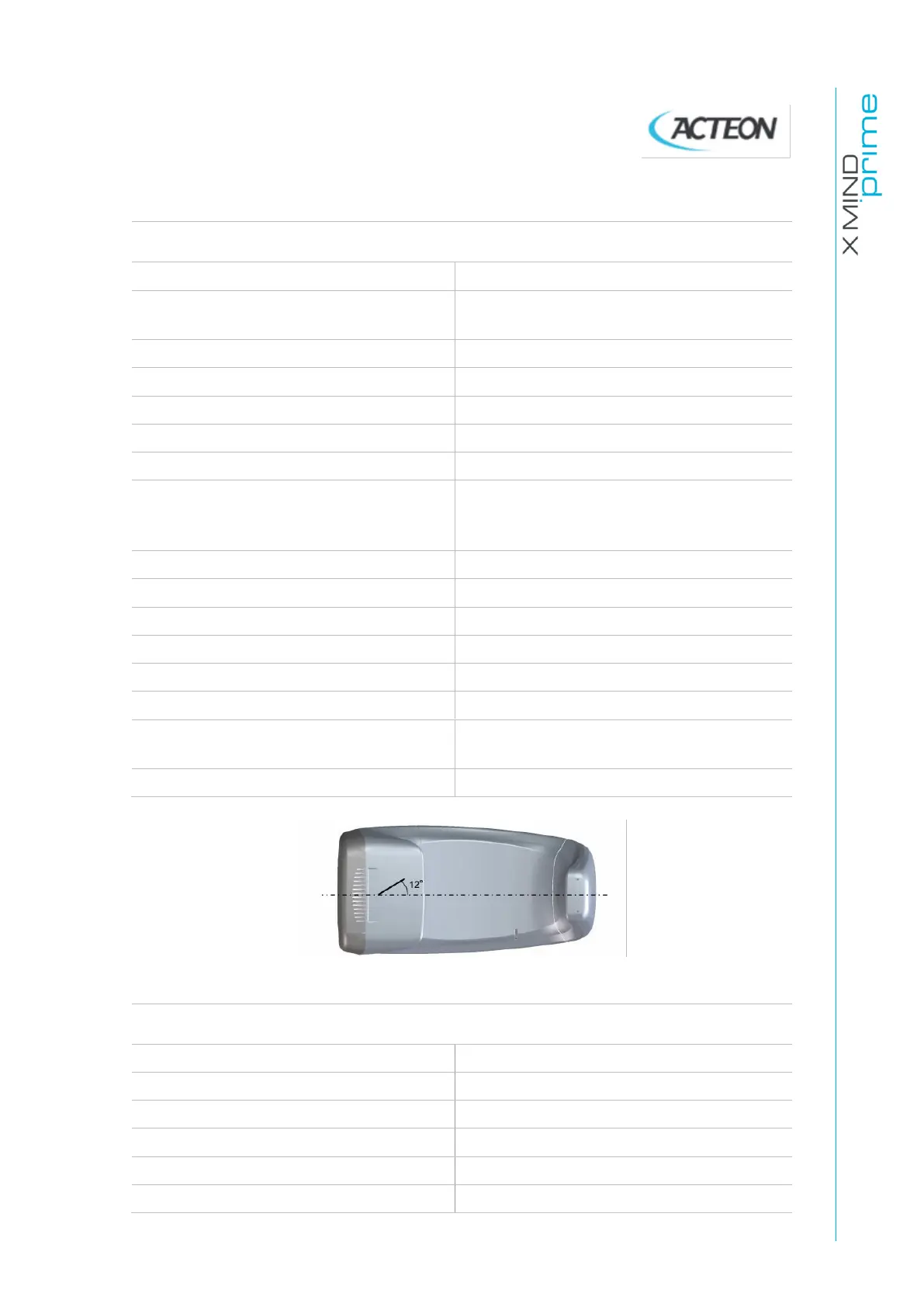

Figure 5: Tube-head target angle (view from the bottom)
X-ray tube characteristics
Manufacturer
CEI
Type
OPX 105-12
Nominal focal spot
0.5 EN 60336
Inherent filtration
0.5 mm Al eq.
Anode tilt
12°
Anode material
Tungsten
