Akai MPC 4000 User Manual

Appendix: Installing storage devices (for service engineers)
254

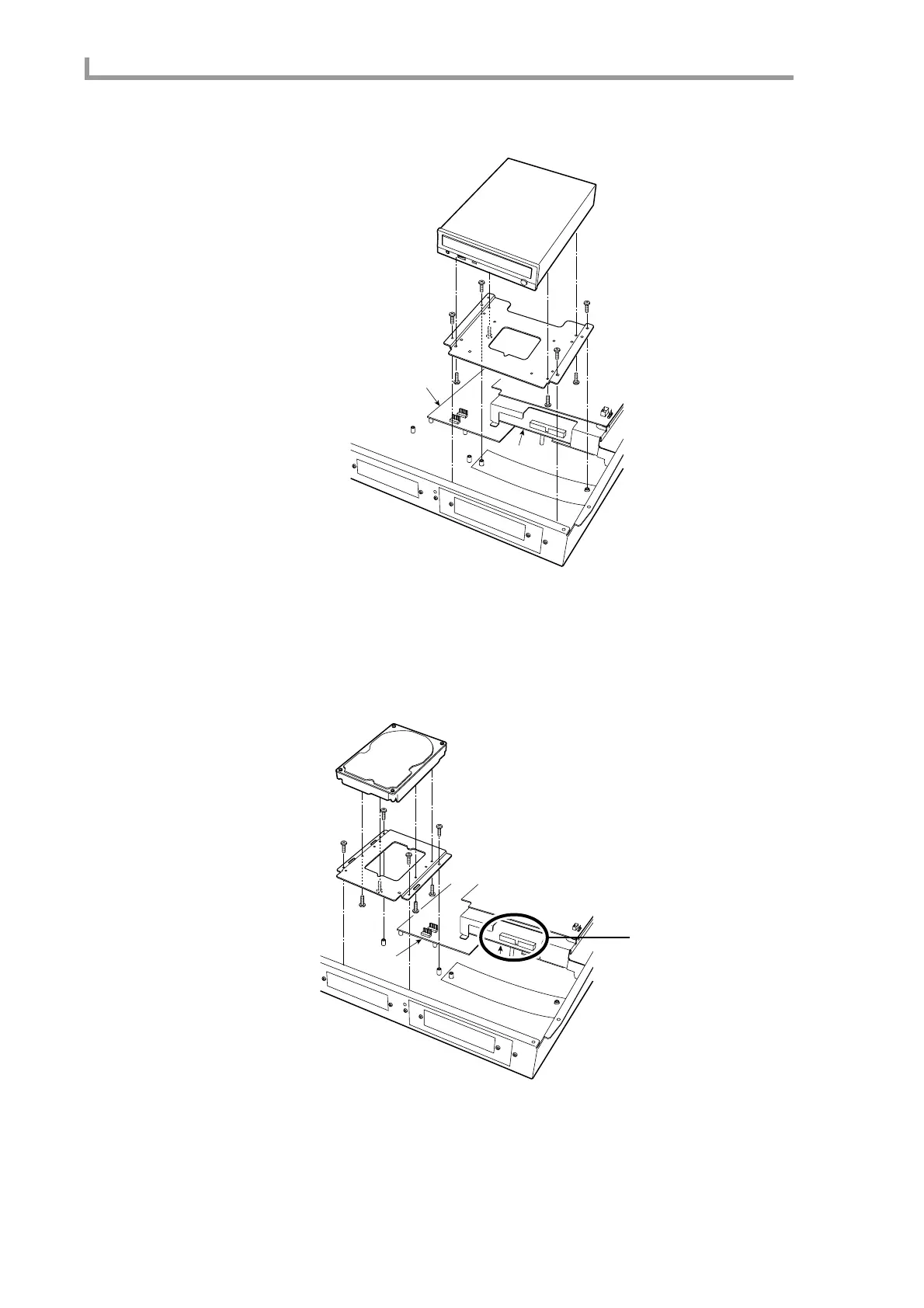

When installing a drive in the 5 inch bay
Cable connections
Connecting the flat cable
1. Remove two screws from the cover that conceals the PC CPU board.
When you remove the cover, you will see the P2 connector for the ATA drive.
2. 3Insert the blue connector of the included flat cable into the P2 connector of
the PC CPU board.
3. Reattach the cover that you removed.
4. Connect the other end of the flat cable to the drive.
P7
P8
P2
P23
PC IO
PC CPU
PC IO AD_DA
P2
P7
P8
PC IO
PC CPU
PC IO AD_DA
Step 1

Akai MPC 4000 Specifications

General

Polyphony	64 voices
RAM	272 MB (expandable to 512 MB)
Pads	16 velocity and pressure-sensitive pads
MIDI	2 MIDI inputs, 4 MIDI outputs
Sampling Frequency	44.1 kHz
Display	240x64 backlit LCD
Effects	4 internal effects processors
Storage	Internal Hard Drive
Sequencer	300, 000 notes capacity
Filter	Multi-mode filter (Low Pass, High Pass, Band Pass, Band Boost, Band Reject)
