EARLIER GENERATION SETS TERMINALS

Ed. 044/14 Réf. 3EH 21000 BSAA

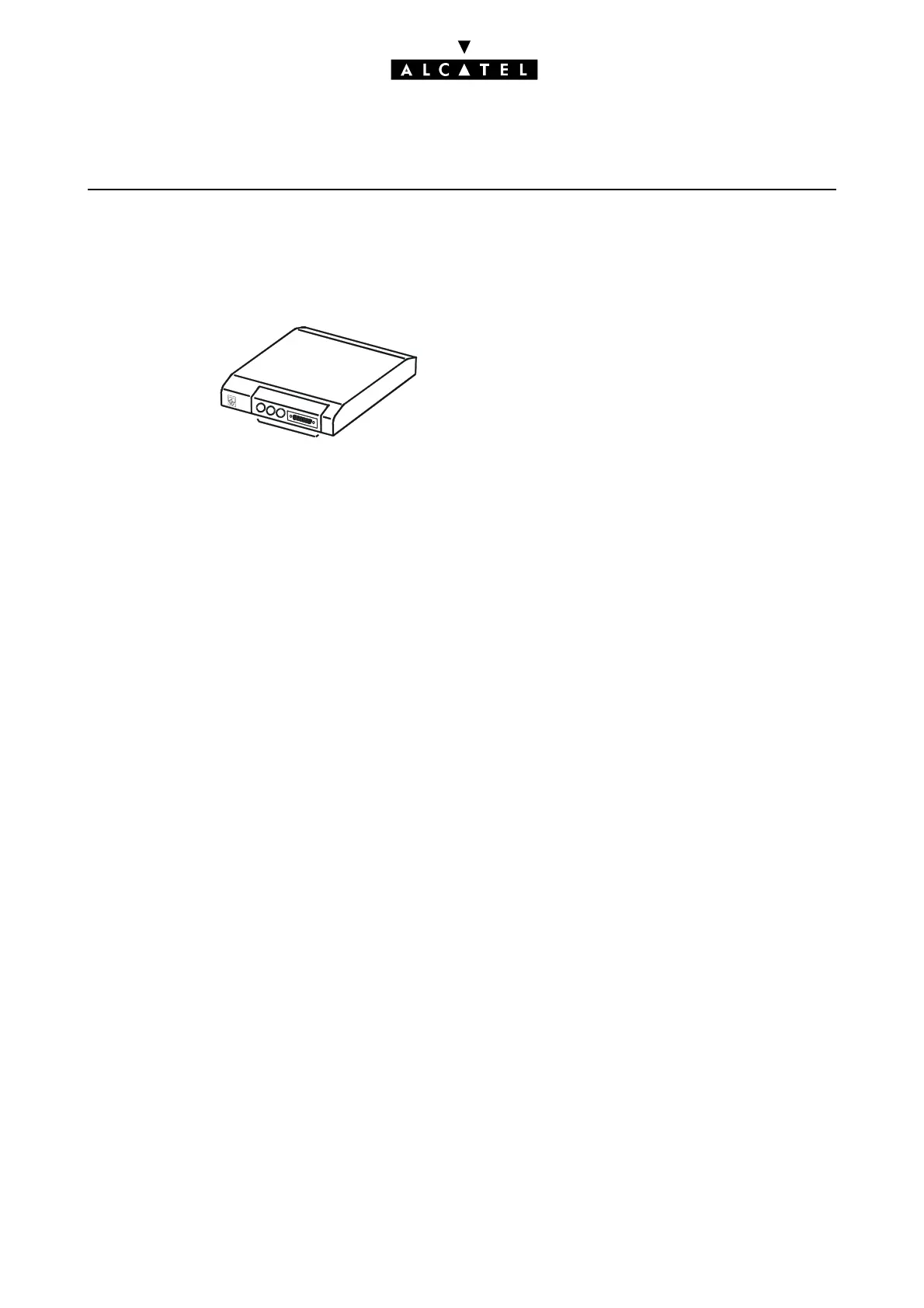

CONNECTING THE 4088 ADAPTER

The 4088 adapter is connected directly to an Alcatel UA set interface and enables the installation of

an optional 4083 ASM, 4083 PCT, 4084 IS/ISW or 4085 AB board.

Link with UAI

Modular-jack

Int

ace

Output pins of the 6-pin Modular jack for connection to UAI

1 -not used

2 -not used

3 - IL+

4 - IL-

5 - not used

6 - not used
