RACK 1 - RACK 2 - RACK 3 MODULES
RACK 1
The RACK 1 module consists essentially of a plastic frame.
The plastic frame receives all the parts for attaching the power supply board, the fans, the battery and
the mains power connector, and everything needed to facilitate the routing of the cables.
There is no backplane board: the metric connectors are on the power supply module.
The enclosure comprises 3 parts: metal cover and base, plastic front face.
Access to the fans, the power supply module and the battery is gained by disconnecting the mains ca-
ble and removing the top metal cover (it is vital to removal all the boards before opening the cover).

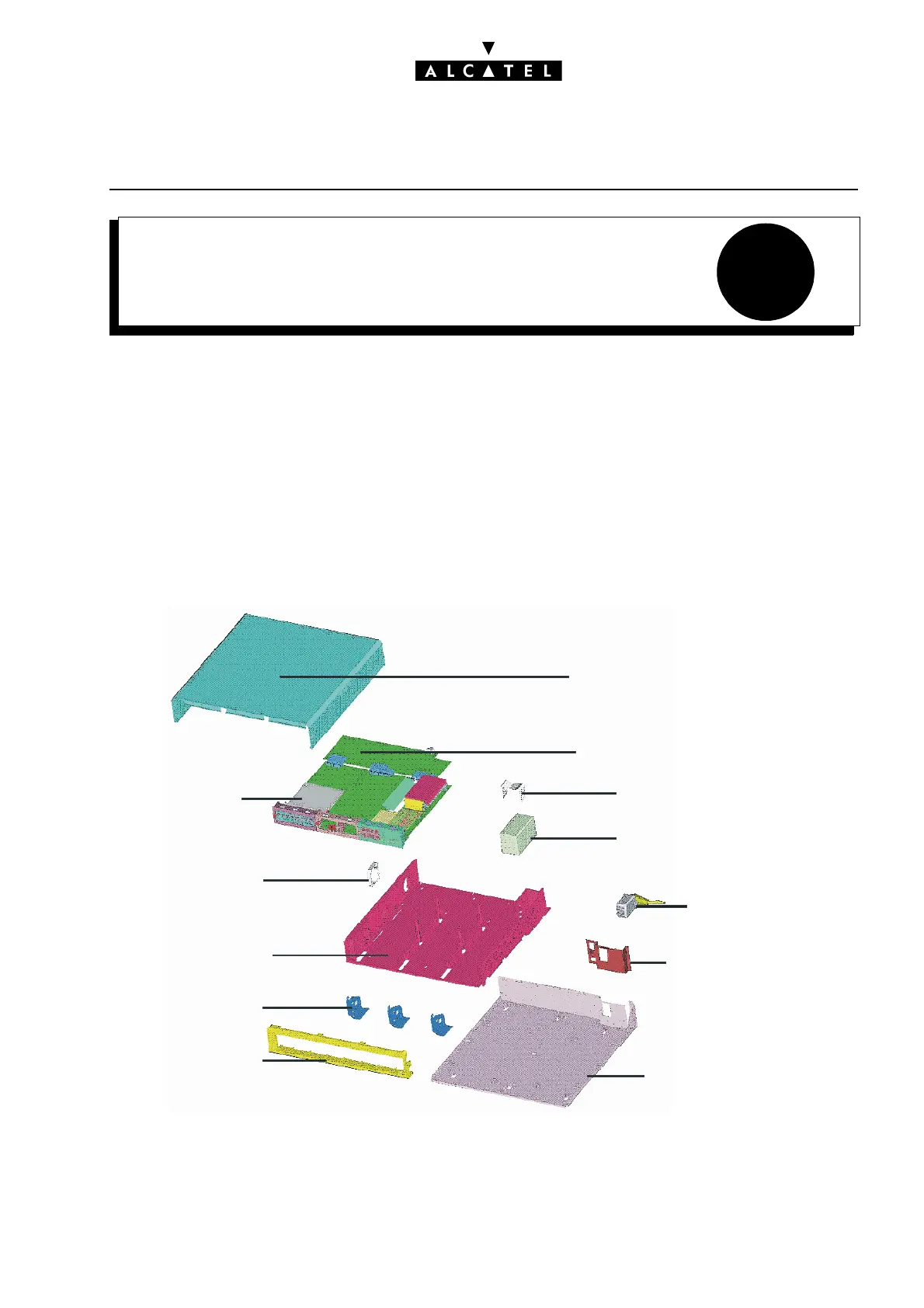

Metal cover
Power supply (+ Backpanel)
Battery
Battery retaining clip
Fa n
Boa rds (CPU +
interfaces)
Metal base
Grounding clips
Pla stic fr a me
Plastic front face
Mains power cable
Mains power connector
mounting plate
