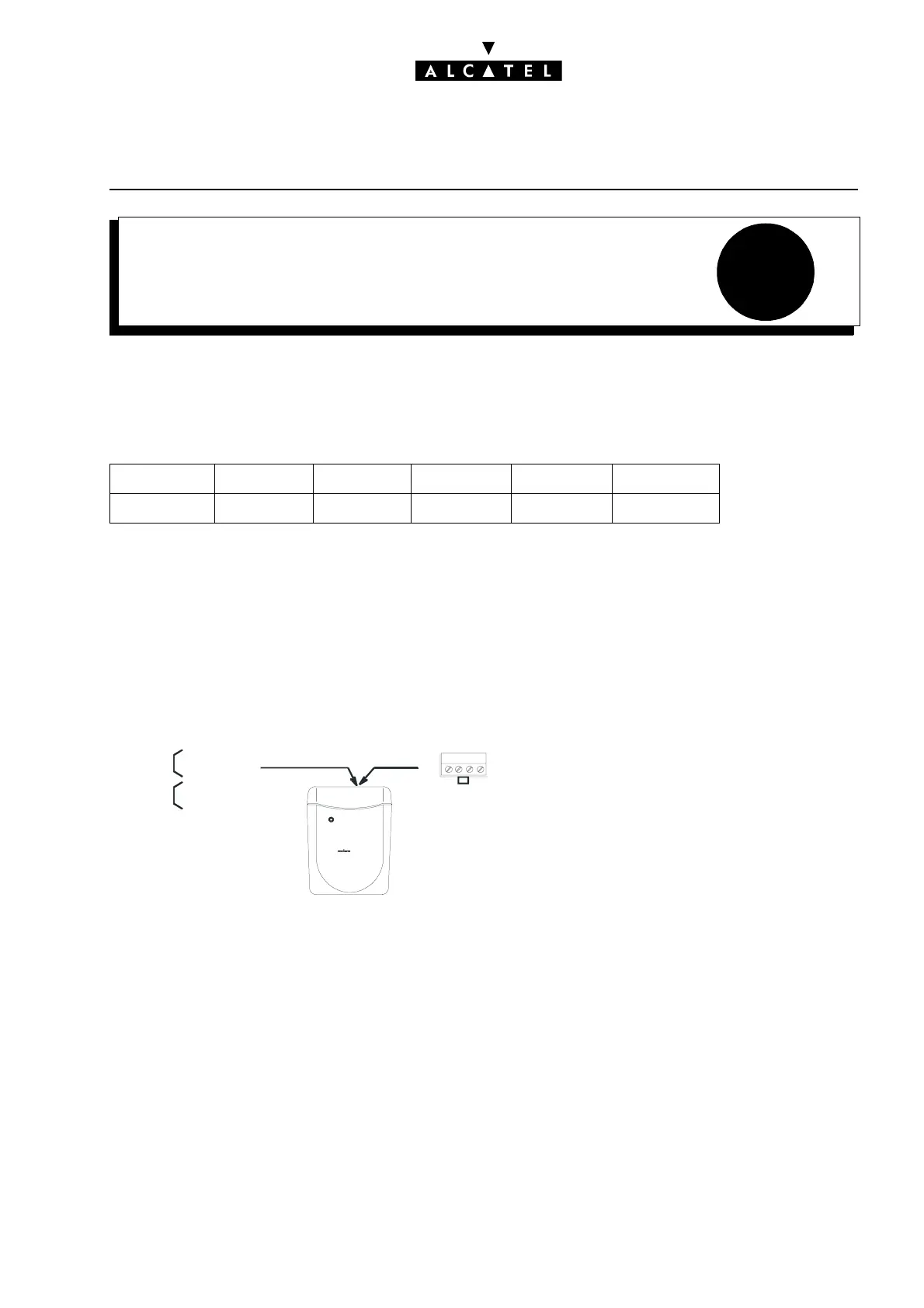

INSTALLING 4070 IO/EO BASE

STATIONS

CALL SERVER : MOBILITY

Ed. 04 1/4Réf. 3EH 21000 BSAA

File

INSTALLING 4070 IO/EO BASE

STATIONS

CAPACITIES

The following limits must be respected (number of bases remotely supplied by the system) for each Al-

catel OmniPCX Office solution:

CONNECTION

The 4070 IO base station is designed for internal installation, and the 4070 EO for external installa-

tion. They are connected up to the RJ45s on the UAI board.

A 4070 IO/EO base station with a single UA link can be connected up to any UAI board interface; the

UA link will be connected to the "master" (wires 1 and 2).

Wiring

Local Power Supply

- The mains adapter serves as a sectioning device

- The surface socket must be installed as close to the base as possible and must be easily accessible.

e-Xs S / e-S M / e-M L / e-L XL / e-XL Max. limits

448204060

Terminal boar

1: L1

2: L2

3: L1

4: L2

To UA 1

To UA 2
