ATA BOARDHARDWARE
Ed. 04 1/4Réf. 3EH 21000 BSAA
File
ATA BOARD
The ATA (Analog Trunk Access) board serves to connect analog trunk lines (TL). 2 board versions are
available:
- ATA-2: 2 trunk lines
- ATA-4: 4 trunk lines

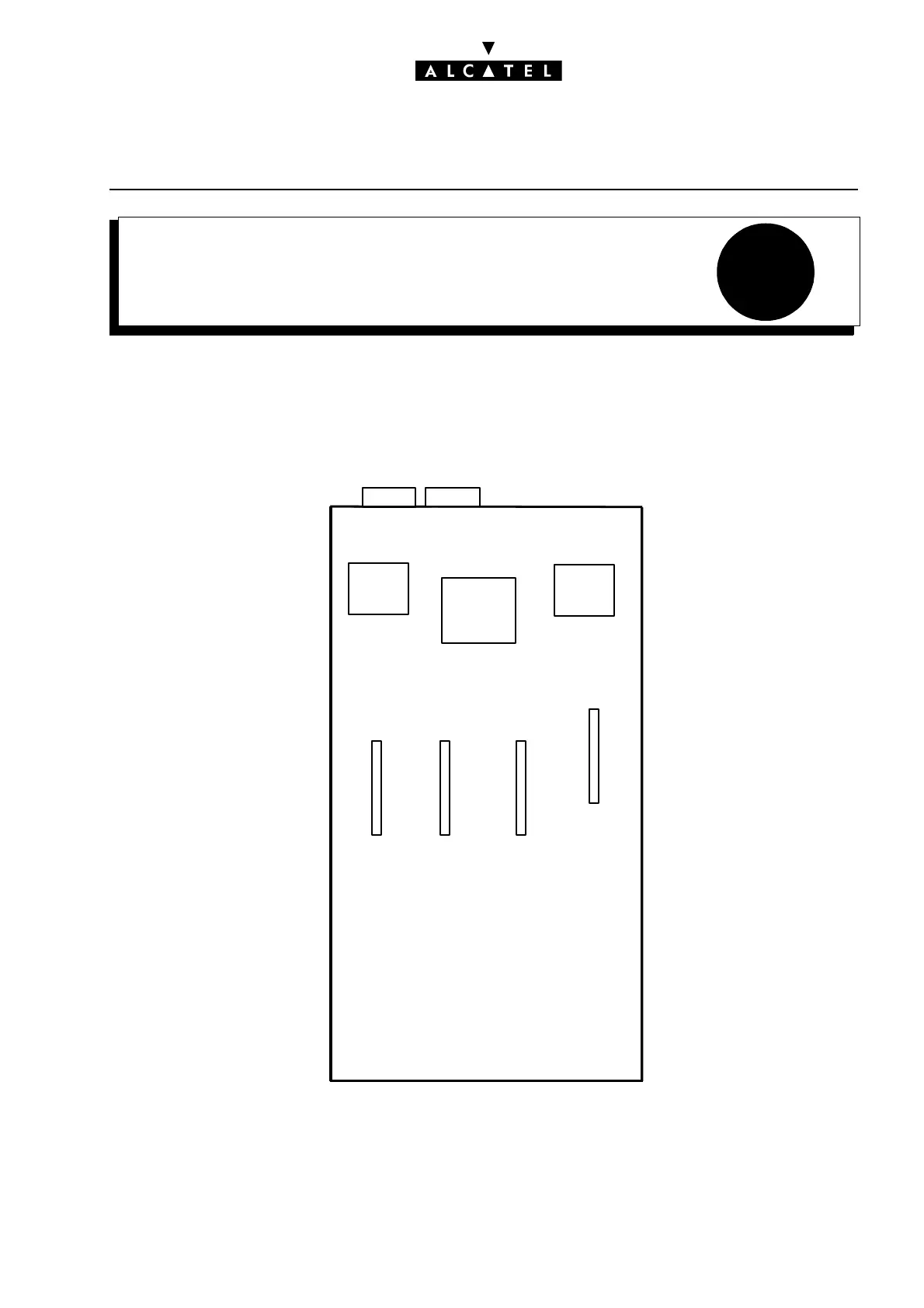

X1, X2, X3, X4: plug-in connectors for MET daughter boards (call charge metering receivers).
DSLAC
P
l
ug-in to BACKX
b
oar
d
OBC
DSLAC
X1
X2
X4
X3
