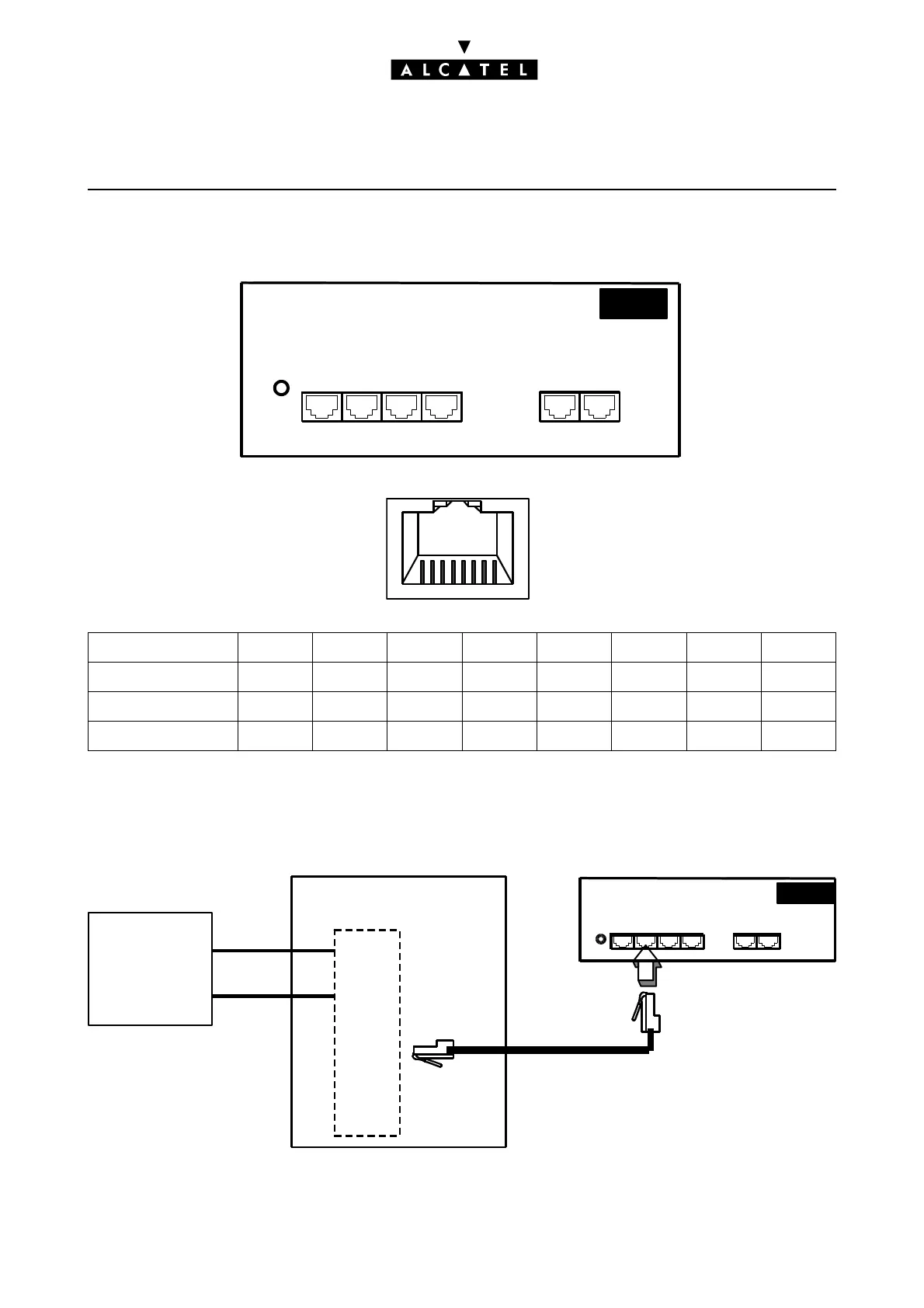

ATA BOARD HARDWARE
Ed. 042/4 Réf. 3EH 21000 BSAA
OUTPUT PORTS (BOARD STIFFENER)
CONNECTING A TL
Without TL forwarding
RJ45 pin 12345678
Outputs 1 to 4 PEA PEB
SLI outputs ZA ZB
PHONE outputs ZSETA ZSETB
12 34
ANALOG TRUNK ACCESS
ATA4
SLI
PHONE
12345678
Female RJ45
,
front
PEB
PEA
Distribution panel
A
NALOG TRUNK ACCESS
ATA4
Analog
Public
Network
