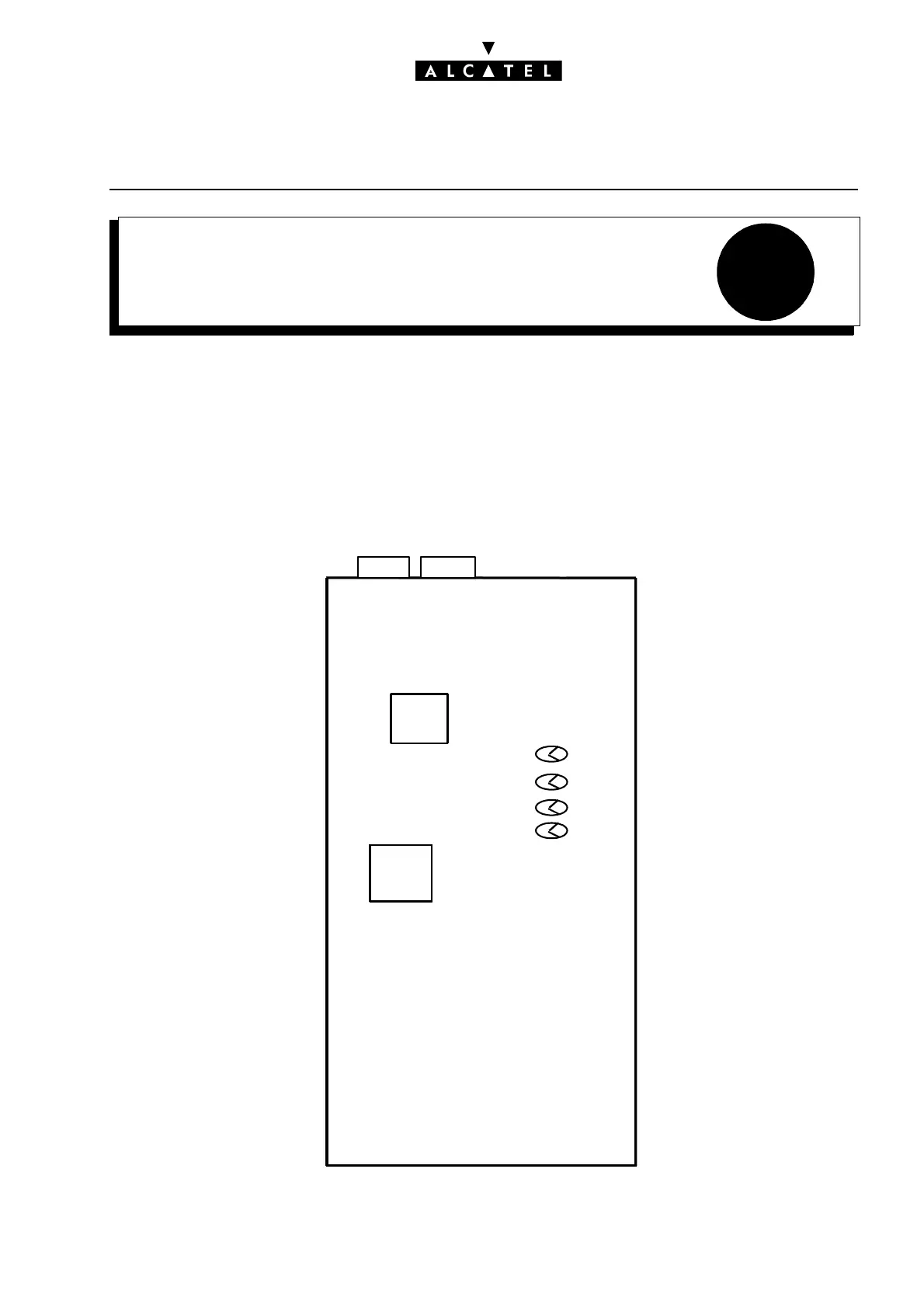

PRA BOARDHARDWARE

Ed. 04 1/4Réf. 3EH 21000 BSAA

File

PRA BOARD

The PRA (Primary Rate Access) board provides 1 primary access for connecting the Alcatel OmniPCX

system to the ISDN digital public network or to private networks:

- PRA -T2, DASS2, DLT2: 30 B-channels + 1 D-channel; 2048 kbps)

- PRA-T1: 23 x 64-Kbps B-channel + 1 x 64-Kbps D-channel

There are several connection options: T2 120-ohm symmetrical pairs and T1 100-ohm symmetrical

pairs. A coaxial 75-ohm connection is available using an external adapter kit.

OBC

ug-in to BACKX

oar

FALC

Citroen straps

(definition of

board type)

Other manuals for Alcatel OmniPCX Office
