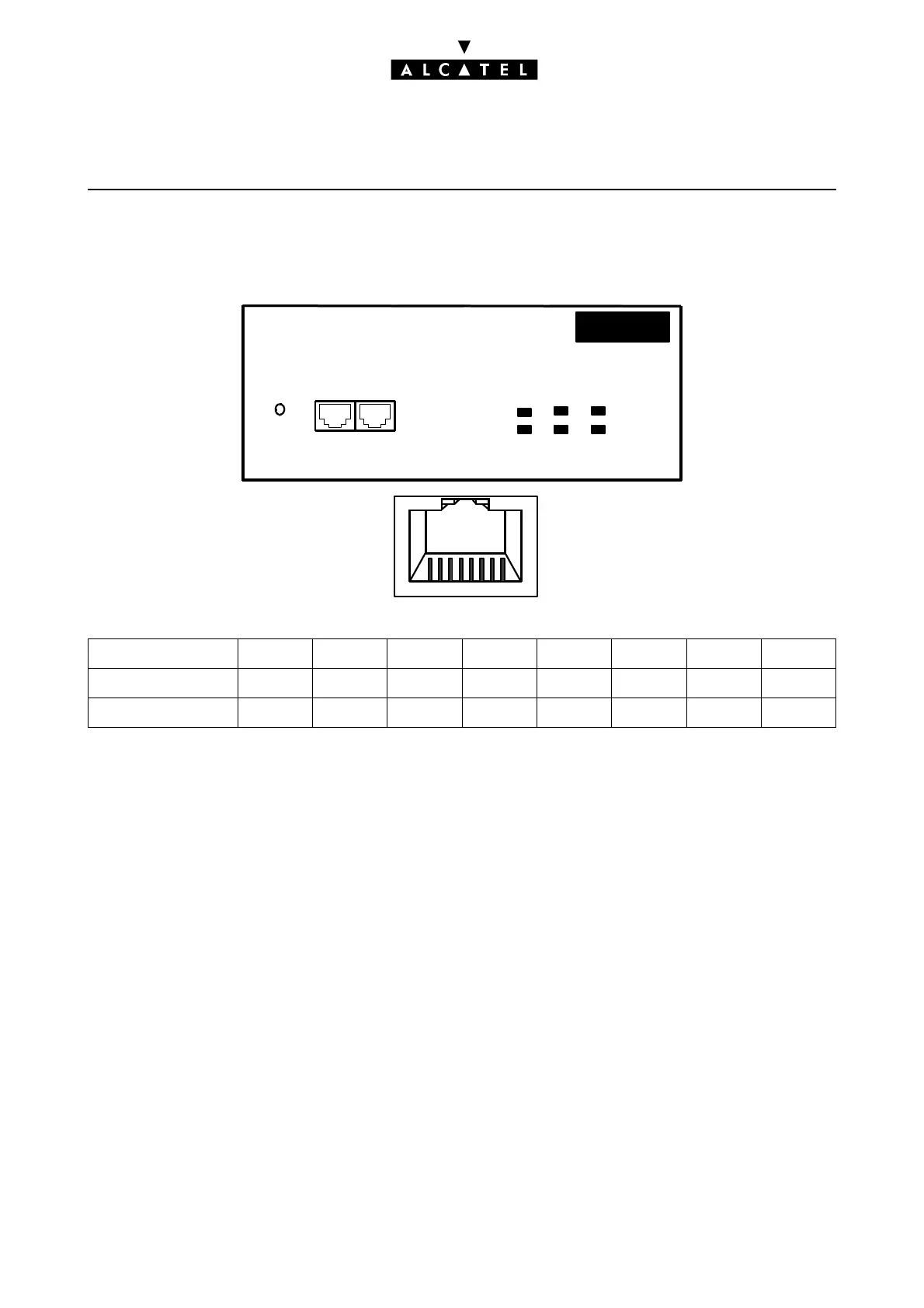

PRA BOARD HARDWARE

Ed. 042/4 Réf. 3EH 21000 BSAA

OUTPUT PORTS (BOARD STIFFENER)

T2 board example

NETW: connection to public network DLT.

PBX: network operation (QSIG).

BOARD TYPE DEFINITION (CITROEN STRAPS)

The board type is defined by the Citroën strap solder:

-T2 (ex-factory) : no solders

- T1 : solder on strap 1

- CAS-T1 : solders on straps 2 and 3

- DLT2 : solder on strap 2

- DASS2 : solder on strap 3

- CAS-T2 : solder on strap 4

RJ45 pin 12345678

NETW outputs RX+ RX- TX+ TX-

PBX outputs TX+ TX- RX+ RX-

ISDN ACCESS - E1

BUSY RAI AIS

NOS CRC LOS

PBX X

NETW II

PRA-T2

12345678

Female RJ45

front
