MIX BOARDHARDWARE

Ed. 04 1/2Réf. 3EH 21000 BSAA

File

MIX BOARD

The MIX board The MIX (Mixed Lines) board serves to connect ISDN basic accesses (T0), Alcatel Re-

flexes stations (UA) and 2-wire analog terminals (Z). 6 board versions are available:

- MIX244: 2 T0 accesses, 4 UA interfaces and 4 Z interfaces

- MIX484: 4 T0 accesses, 8 UA interfaces and 4 Z interfaces

- MIX448: 4 T0 accesses, 4 UA interfaces and 8 Z interfaces

- MIX044: 4 UA interfaces and 4 Z interfaces

- MIX084: 8 UA interfaces and 4 Z interfaces

- MIX048: 4 UA interfaces and 8 Z interfaces

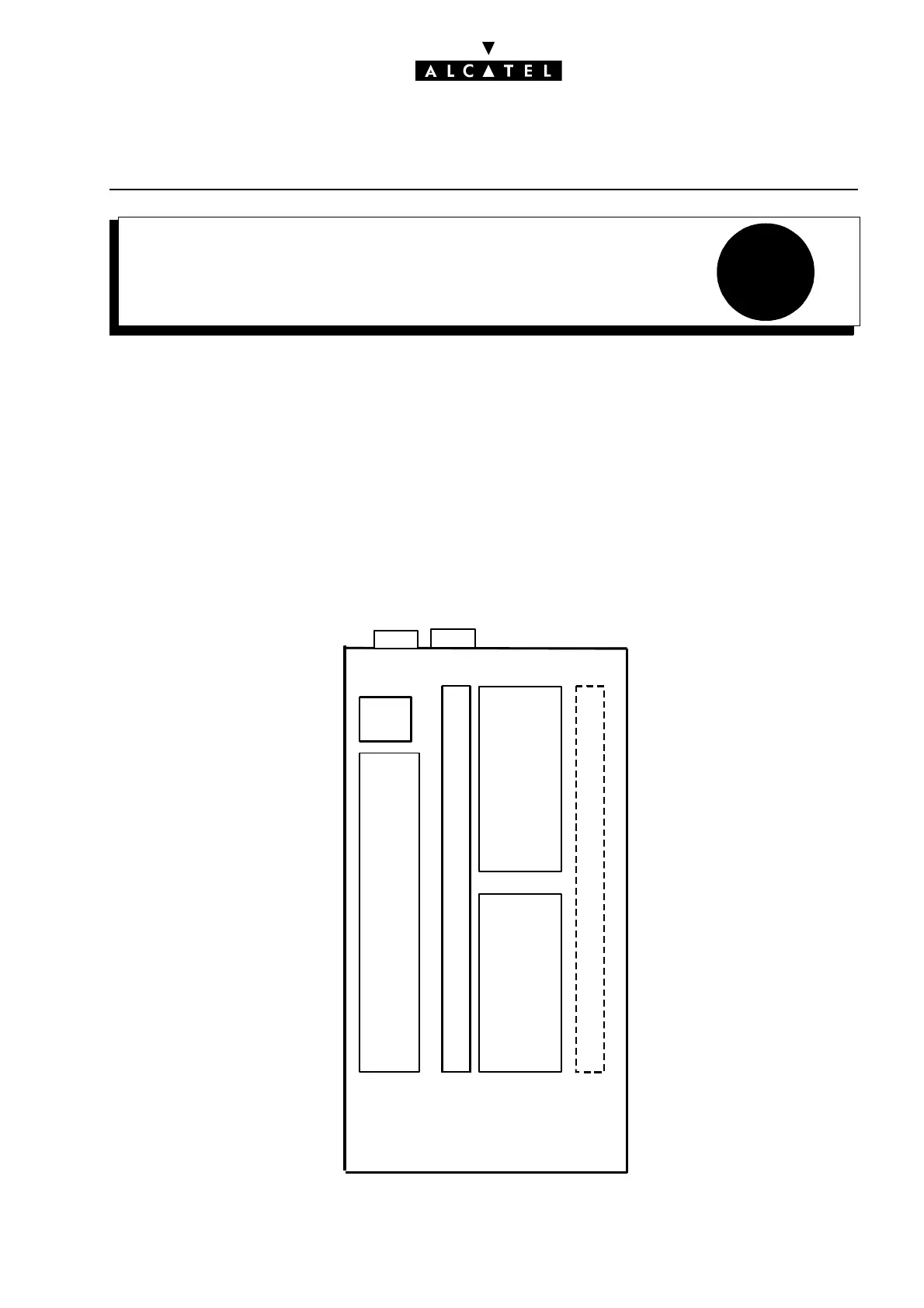

E.g. MIX484 board

OBC

Plug-in to BACKX board

1 to 4

5 to 8

QCIALA (Z1 to Z4 (for X/8/4) or Z5 to Z8 (for X/4/8)

QCIALA Z1 to Z4 (for X/4/8)
