RACK 1 - RACK 2 - RACK 3 MODULES HARDWARE

Ed. 042/2 Réf. 3EH 21000 BSAA

RACK 2 AND RACK 3

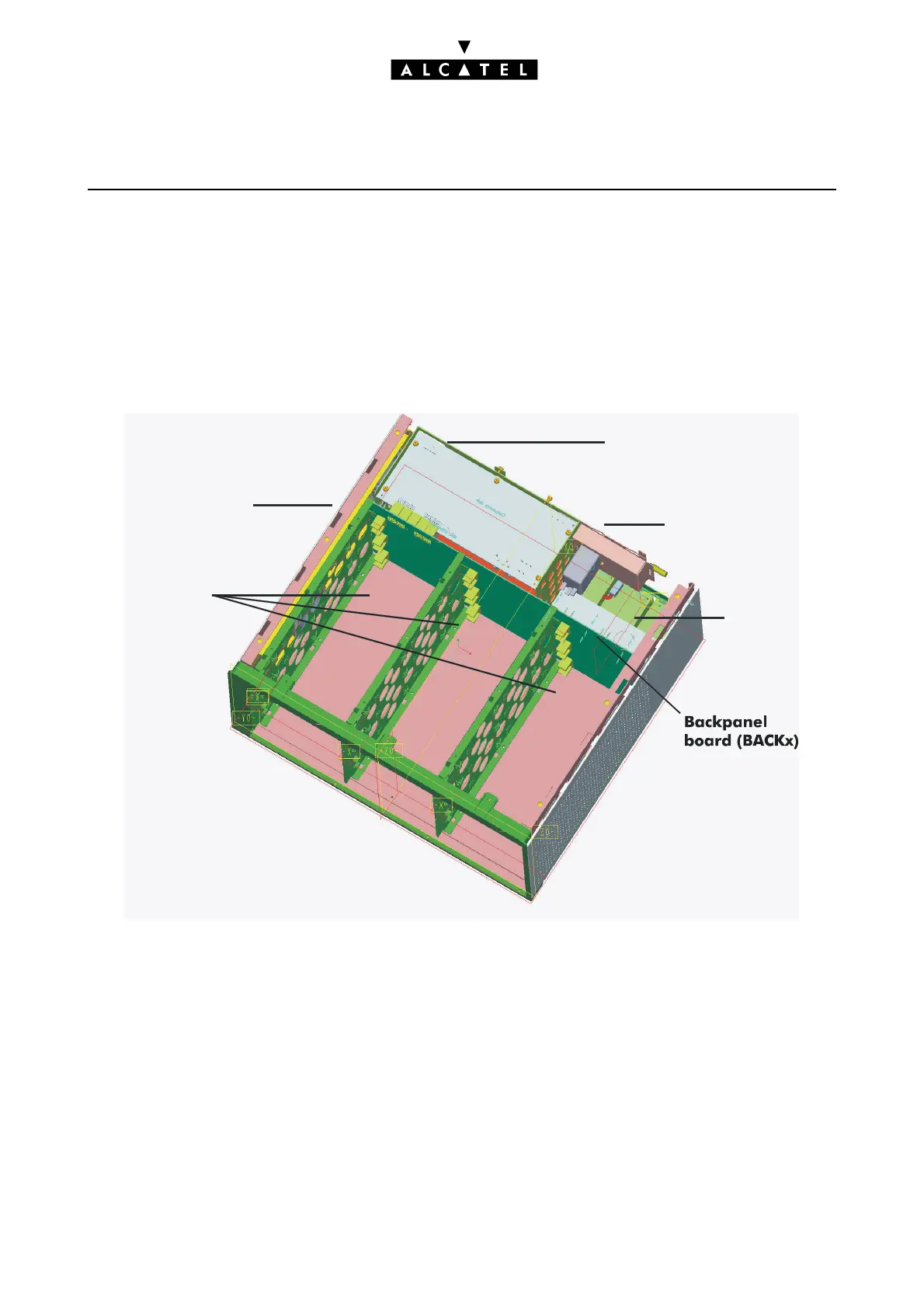

The frame consists of a "U"-shaped sheath closed on the top by a riveted plate. The boards are guided

by 2 (Rack 2) or 3 (Rack 3) rails riveted vertically to the frame.

The enclosure consists of a metal top part, two metal side parts and a plastic front face.

Access to the fans, the power supply module and the batteries is gained by disconnecting the mains

cable and unscrewing the back panel.

Power sup pl y

Cooling zone

(fans)

Mains power

conn e ct or

Ba tter ie

Boa r d

installation

areas
