EARLIER GENERATION SETSTERMINALS
Ed. 04 7/14Réf. 3EH 21000 BSAA
OPTIONS FOR UA 2G SETS
4012, 4034, 5022 and 5028 sets on the Alcatel OmniPCX system can take an optional interface that
plugs into the rear of the set:
- 4083 (or 5083) ASM: V24 - MAC/PC option
- 4083 PCT: PC option
- 4084 (or 5081/5082) IS/ISW: S0 - MAC/PC option
S0 (2 B channels and 1 D channel) is available via a 4084 IS/ISW option installed on a 40XX set
which is connected to a DLC16 board (16, 8 or 4 devices).
S0* (1 B channel and 1 D channel) is available via a 4084 IS/ISW option installed on a 40XX set
which is connected to a DLC4/8 board with an S01B daughter board.
- 4085 (or 5088) AB: Z option
Connecting V24 and MAC/PC terminals
V24 terminals are connected using the X201 connector of board 4083 ASM installed in the set.
MAC/PC terminals are connected using connectors X401, X402 and X403 of boards 4083 ASM and
4084 IS.
Maximum distances between terminal and set:15m at 19200 bps
2 m at 57600 bps
Function Circuit Signal
Protection ground 101 PG
Transmitting data 103 TD
Receiving data 104 RD
Request to send 105 RTS
Clear to send 106 CTS
Data set ready 107 DSR
Signaling ground 102 SG
Carrier detection 109 DCD
Local loop 141 LL
Data terminal ready 108/1, 2 DTR
Call indicator 125 RI
Test indicator 142 TI

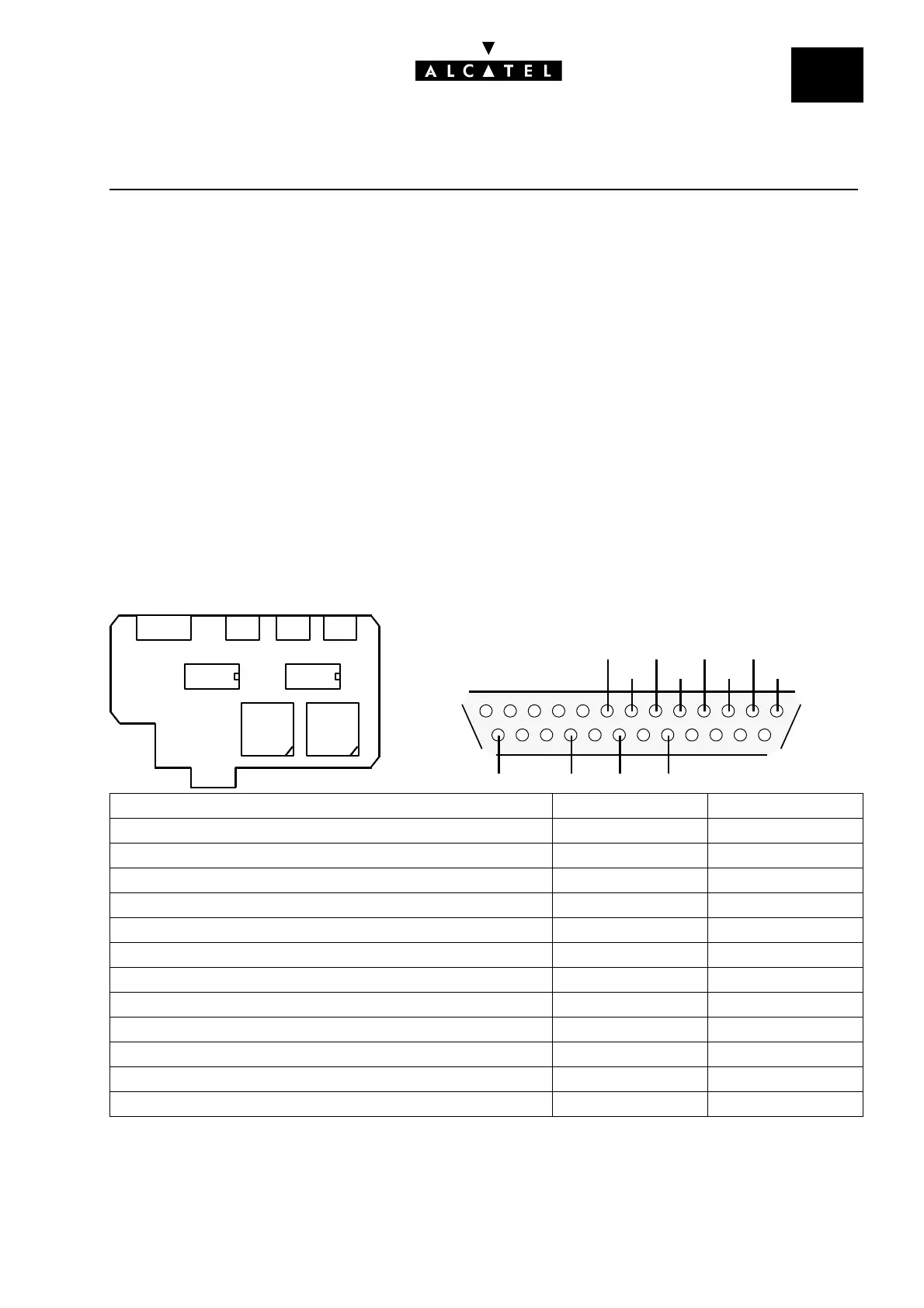

X201 X401 X403 X402
Micro
processor
Micro
processor
REPROM REPROM
U103 U403
U101 U401
4083 ASM
Female outlet
(view from the bottom of the station)
DSR
CTS
RT
S
RD
TD
PG
TI RI
DTR
LL
13
25
1
14
DCD
SG
X201 : V24 output 25-pin SUB D female connector
