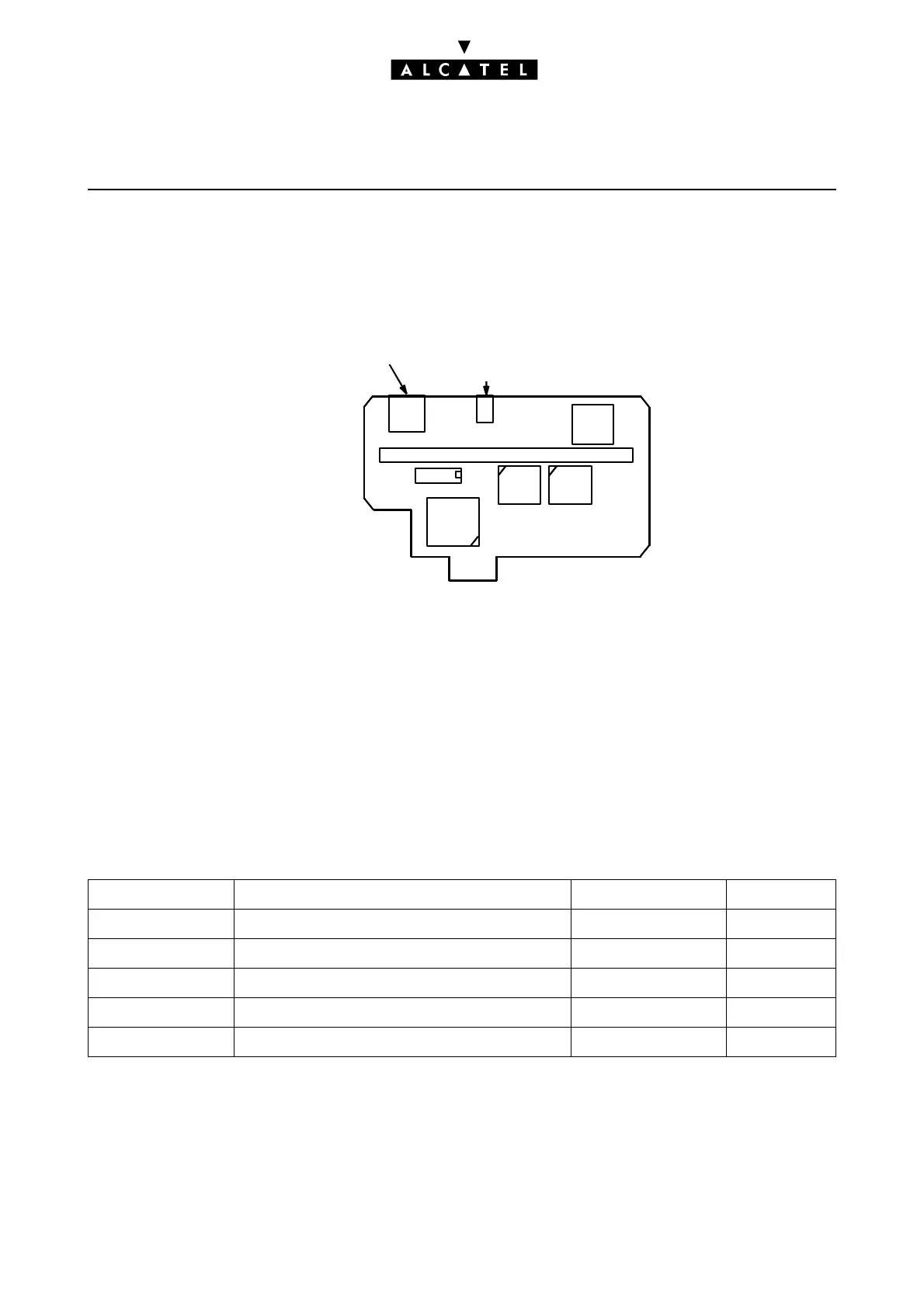

EARLIER GENERATION SETS TERMINALS
Ed. 0410/14 Réf. 3EH 21000 BSAA
Connecting analog terminals
The Z station interface is of type TNV (Telecommunication Network Voltage) with mains supply. The
connection distance of an analog terminal to this interface is limited to 20 meters.
The user of a set connected to this interface has the same operation possibilities as a user using a
classic Z interface (restriction: the set's Message LED cannot be used).
X101: 8 pin modular jack for connection to the analog terminal
- 1: GND - 5: L2 line wire
- 2: not used - 6: not used
- 3: not used - 7: not used
- 4: L1 line wire - 8: not used
X102: connector for the power supply
- 1: - 48 V - 2: + 48V
Various terminal cables
The cables below can be used for connecting terminals to UA sets (references 3AK..... represent the
group of 5 cables described in the table).
CABLE CONNECTORS REFERENCE LENGTH
S0 8 pin modular jack - 8 pin modular jack 1AB 04521 0024 3 m
V24 DCE 25 pin SUBD male - 25 pin SUBD female 1AB 05412 0016 2 m
V24 DTE 25 pin SUBD male - 25 pin SUBD male 1AB 05412 0018 2 m
PC 8 pin mini din male - 9 pin SUBD female 1AB 07871 0003 2 m
MAC 4 pin mini din male - 4 pin mini din male 9191500 2 m
U450
Micro-
processor
CIALA - S
U201
8-pin modular jack for
connection to the analog
Jac
k
f
or connection to t
h
e power supp
l
y
TRANSFO
81
terminal
REPROM
To transformer socket unit
U451
U500
COFIDEC
X102
X101
T350
U502
RMF
4085 AB
