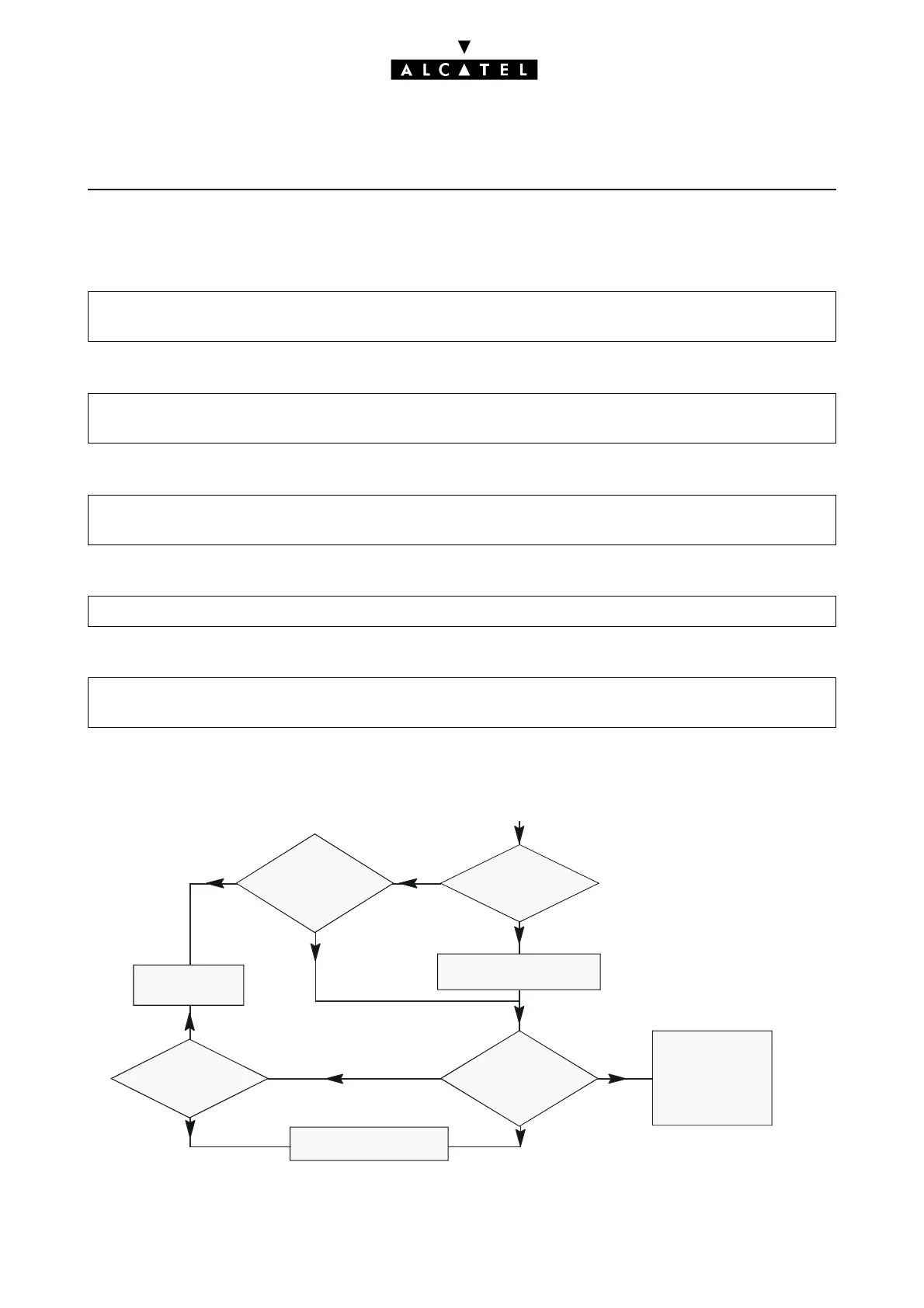

SPLITTING CALL SERVER : TELEPHONE FEATURES
Ed. 042/4 Réf. 3EH 21000 BSAA
CONFIGURATION
T Programming the line seizure type of splitting:
T Programming or modifying the splitting prefix table:
T To modify the pause time-out – MMC-PM5 (Expert View) only:
T To modify the tone detection time-out – MMC-PM5 (Expert View) only:
T To modify the tone non-detection time-out – MMC-PM5 (Expert View) only:
ACTIVATION/USE
- by MMC-PM5 (Expert View): Numbering -> Splitting Table
-by MMC-Station: EODPfx -> EODial -> Split -> TonDet
- by MMC-PM5 (Expert View): Numbering -> Splitting Table
-by MMC-Station: EODPfx -> EODial -> Split -> prefix
External Lines -> Protocols -> Analog Trunks -> Timers -> Modify -> "Pause after Seizure
Trunk", "Pause after Seizure Main/Sat", "Pause Fractioning" (Part 2)
External Lines -> Protocols -> Analog Trunks -> Timers -> Modify -> "Tone Detection"
External Lines -> Protocols -> Analog Trunks -> Timers -> Modify -> "TO if no Tone De-
tection"
The system waits
for the end of the
pause time-out
then continues
transmitting the
dialing
Line seizure
Splitting = TONE or
PAUSE ?
Pause
TONE
Is the tone present
and valid ?
NO
Dialing is transmitted
after time-out
YES
Does the number
contain a splitting
prefix or a "!" ?
YES with
TONE
YES
NO
The system
releases the line
The system continues
transmitting the dialing
with PAUSE
Is the tone present
and valid ?
NO
YES
