TRAFFIC COUNTERSCALL SERVER : MOBILITY
Ed. 04 5/8Réf. 3EH 21000 BSAA

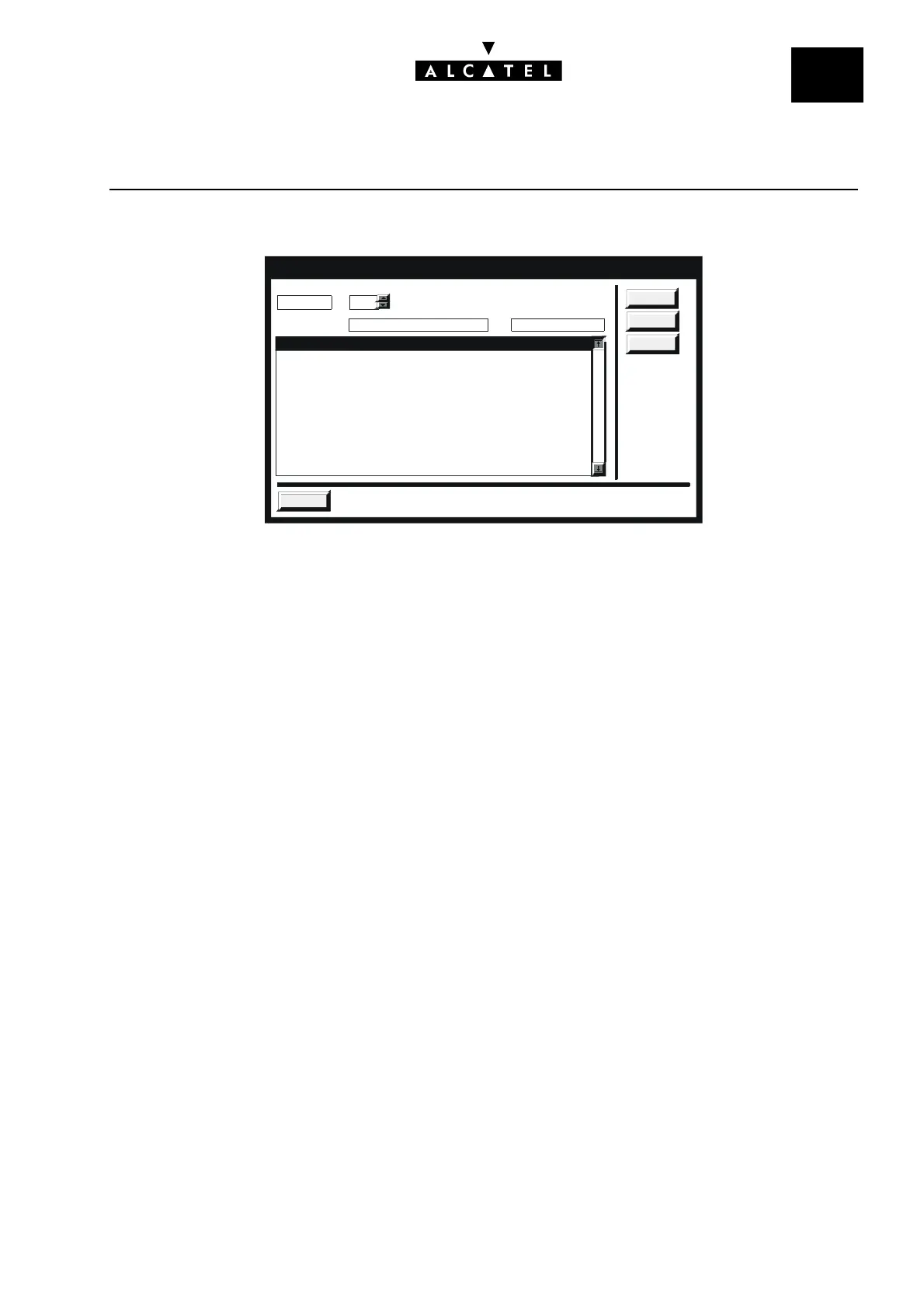

Example: How to read the base station counter table
For the minimum length of the memory area to be listed, assume 18 bytes per base station, hence:
(minimum value to be entered in "Length" field) = 18 x total number of base stations.
In the example, the results recorded for the first base station are as follows:
- board position: 0A hex (10 dec); slot number 6
- device : 01 hex (1 dec); first device on the UAI board
- n° of calls : 03 B2 hex (946 dec)
- n° of simult calls: 00 05 hex (5 dec)
- n° of saturations: 00 02 hex (2 dec)
- saturation time: 00 00 79 3A hex (31.034 seconds)
- n° of inter handovers: 00 83 hex (131 dec)
- n° of intra handovers: 01 4C hex (332 dec)
- n° of links lost: 00 1A hex (26 dec)
Address Len:
005BED0E
512
Write
Read
Return
Modify
0A 01 B2 03 05 00 02 00 . . . . . . .
3A 79 00
00 83 00 4C 01 . . . . . . .005BED16
1A
00 0C 03 43 01 03 00 . . . . . . .005BED1E
00 00 00 00 00 00 22 20 . . . . . . .005BED26
3B
00 0C 00 FF FF FF FF . . . . . . .005BED2E
FF FF FF FF FF FF FF FF
. . . . . . .005BED36
FF FF FF FF FF FF FF FF . . . . . . .005BED3E
FF FF FF FF FF FF FF FF
. . . . . . .005BED46
FF FF FF FF FF FF FF FF . . . . . . .005BED4E
FF FF FF FF FF FF FF FF
. . . . . . .005BED56
FF FF FF FF FF FF FF FF . . . . . . .005BED5E
FF FF FF FF FF FF FF FF
. . . . . . .005BED66
0A 01 B2 03 05 00 02 00 . . . . . . .005BED0E
