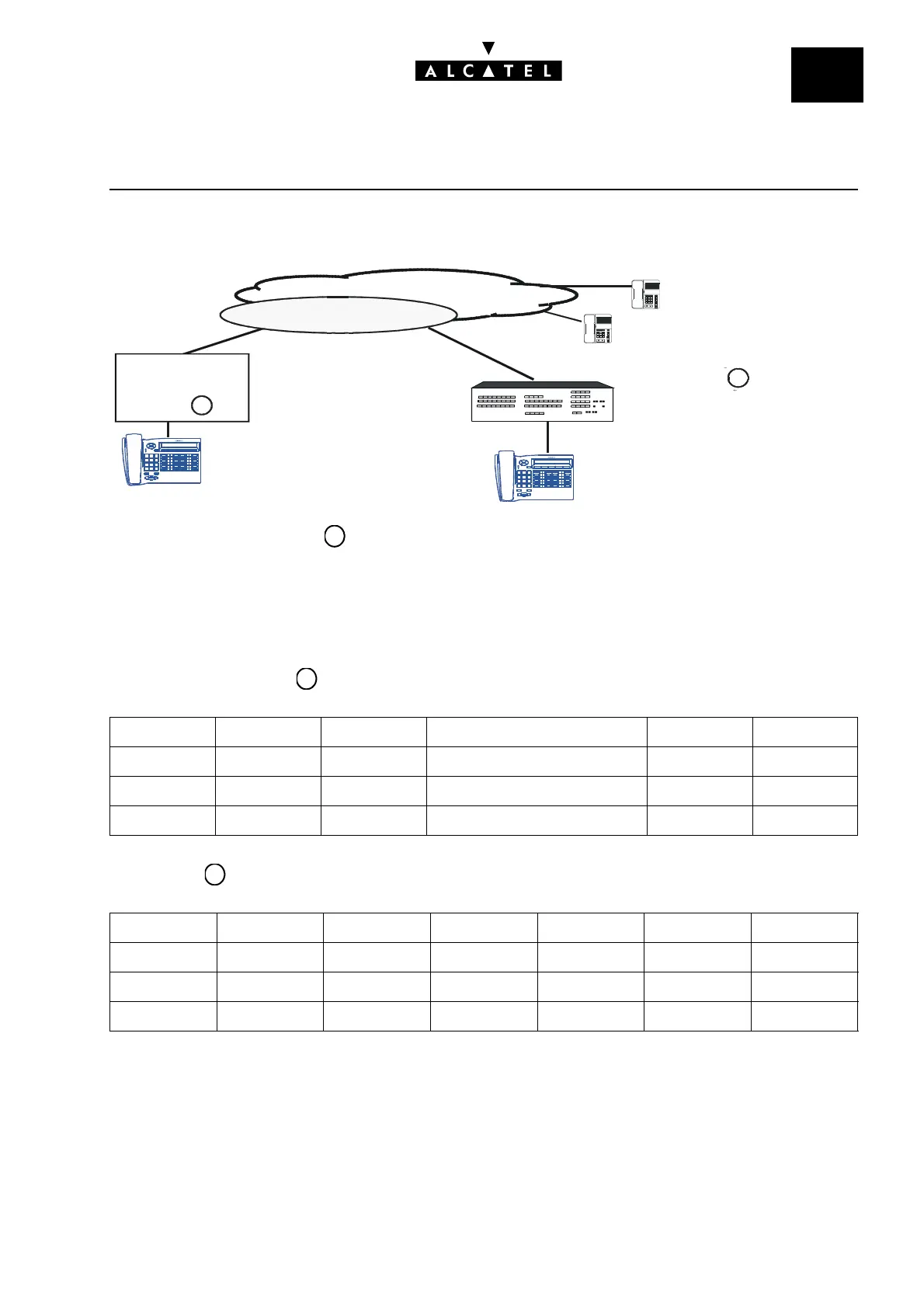

EXAMPLES USING ARSCALL SERVER : PRIVATE NETWORKS
Ed. 04 13/16Réf. 3EH 21000 BSAA
TRANSGROUPE VPN
The Alcatel OmniPCX Office system, as a member of Transgroupe (PIN = 667000) must be con-
figured to:
- make direct private calls without prefix (internal destination).
- make public calls after dialing an outgoing prefix (0) with automatic insertion of the outgoing prefix
on Transgroupe (0).
Main numbering plan of
ARS table of
Start End Base Function NMT Private
0 0 - Main trunk group Absorb No
68 68 - Secondary trunk group Keep Yes
69 69 - Secondary trunk group Keep Yes
Network Prefix Ranges Substitute TrGp list Called/HH User com.
Pub - 0 1 Heterogen.
Priv 68 - 68 2 Heterogen.
Priv 69 - 69 2 Heterogen.
688123
A
667712
B
PUBLIC NETWORK
TRANSGROUPE
PABX
NDI : 88678000
TRANSGROUPE : PIN = 688000
Trun k g ro up s 1 an d 2
Public subscriber
0388697985
Public subscriber known
by the Alcatel OmniPCX Office
system by the VPN number : 69123
4
NDI : 388677700
TRANSGROUPE : PIN = 667000
B
B
B
