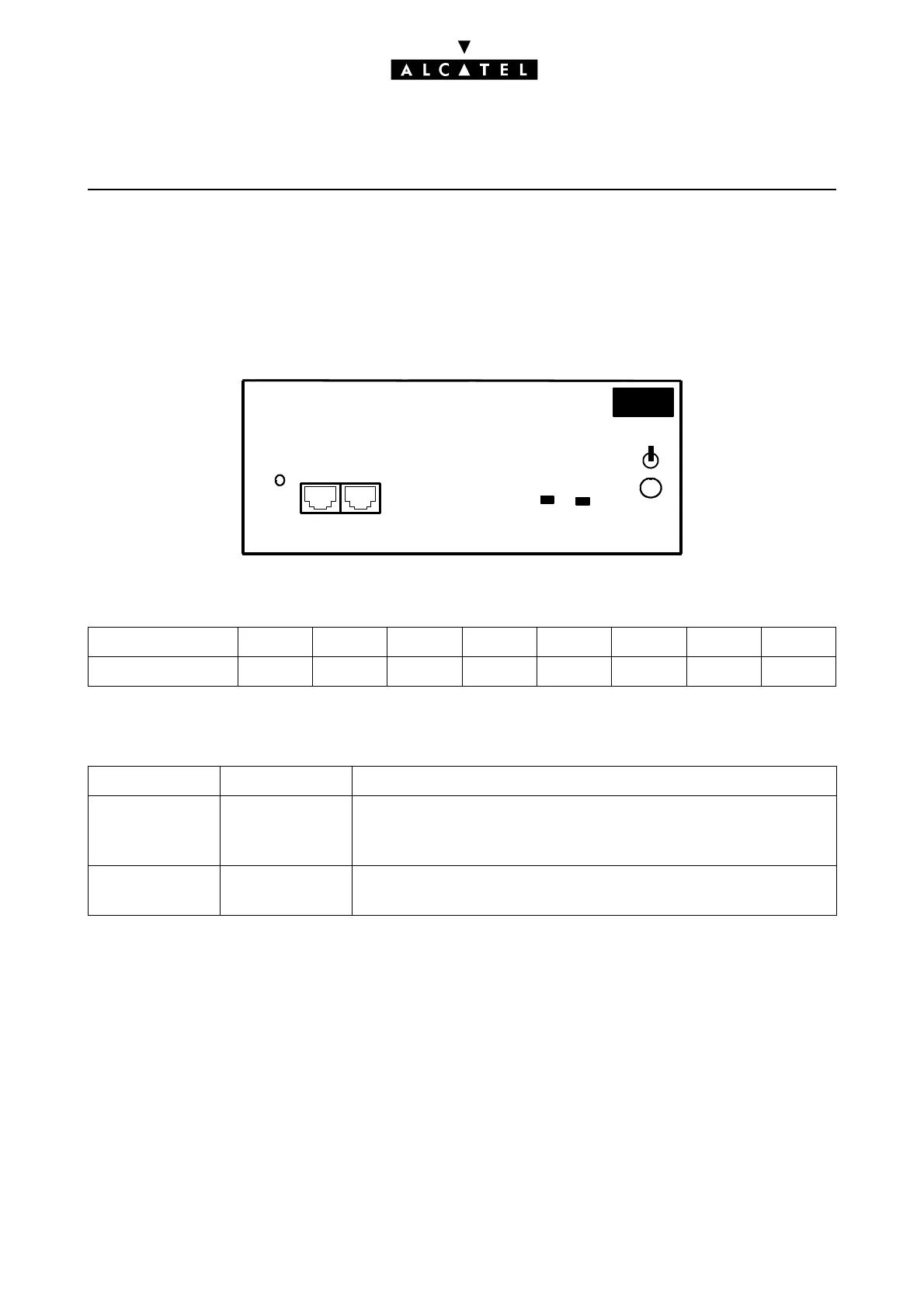

MEX BOARD HARDWARE

Ed. 042/2 Réf. 3EH 21000 BSAA

DAUGHTER BOARD

The MEX board is equipped with an HSL1 (High Speed Link) board for interconnecting with the basic

module.

OUTPUT PORTS (BOARD STIFFENER)

Available functions:

- MAIN: HSL to basic module.

MEANING OF THE LED INDICATIONS

CONNECTION

The MEX board is connected to the MODULE 1 or MODULE 2 connector on the CPU/CPUe board.

See also the General Diagram in the section on CPU-CPUe boards.

RJ45 pin 12345678

MAIN outputs TX+ TX- RX+ RX-

Name Color Function

POWER Red/Green - Mains operation: steady green LED

- Battery operation: steady yellow LED

- Idle: flashing red LED

FAN Red/Green - Both fans functioning: steady green LED

- 1 or both fans down: steady red LED

MAIN

MODULE EXPANSION

POWER

FAN

MEX
