DOORPHONESAPPLICATIONS
Ed. 04 3/8Réf. 3EH 21000 BSAA
- to create specific keys on the set(s) linked to the doorphone
• Supervision keys
• Doorstrike key
- specific programming instances
If the doorphone uses other MF command codes, refer to its instructions.

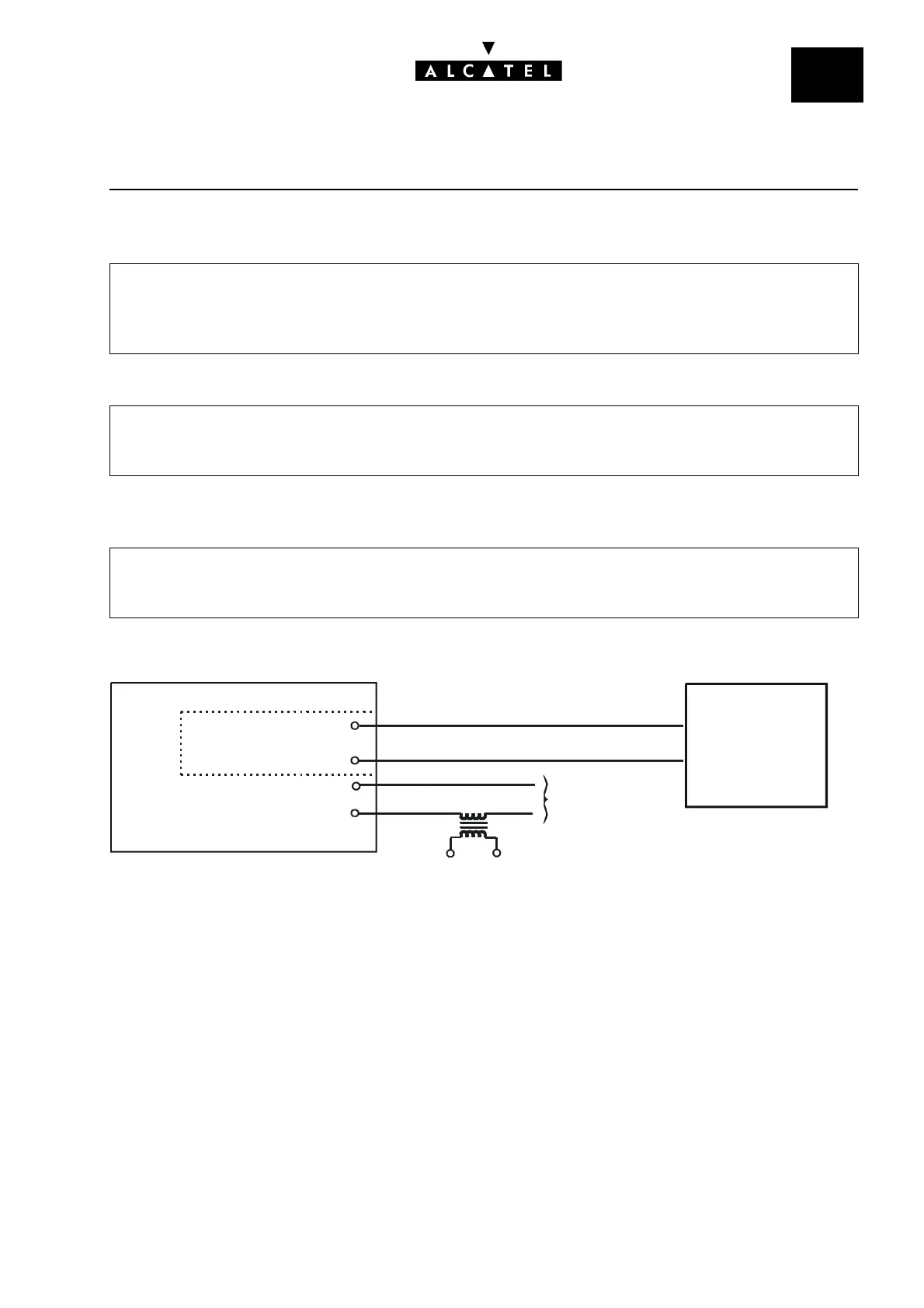

Connection diagram
Functional description
Setting up a doorphone requires a functional analysis of the device (expected signals or tones, system
open to programmable signals), before moving on to the system configuration, or that of the door-
phone.
Nota : It is recommended that you consult the doorphone installation manual.
By MMC-PM5 (Expert View), select:
Subscribers/Basestations List -> Subscribers/Basestations List (select doorphone destination
set) -> Details -> Keys -> select a key -> Type = Resource Key -> Function = RSL -> Num-
ber = 111
By MMC-PM5 (Expert View), select:
Subscribers/Basestations List -> Subscriber (select set) -> Details -> Keys -> select a key -
> Type = Function Key -> Function = Doorphone Unlock
By MMC-PM5 (Expert View), select:
System Miscellaneous -> Doorphone Signals -> change MF code values (start/stop signal),
if desired, add the ringing tone to the doorphone using Alert Signal / Tone
Z station interface
220
V
To ward s the
Door opener command
door opener
TELEMINI
or
UNIVERSAL
DOORPHONE
PABX
(SLI board)
