COCPU - COCPU@ BOARDS HARDWARE
Ed. 044/4 Réf. 3EH 21000 BSAA
CONNECTION
The CoCPU boards are connected either to the CPU board (LAN port) or to a LAN switch port. See
General Diagram in the CPU - CPUe board section.
CONNECTING A HARD DISK
Hard disks are fitted using an XMEM board.
Important : During installation, always take anti-static precautions (wristband, heelpiece, etc.) befo-
re handling the hard disk). Electrostatic discharges can shorten the life of the disk.
When going into stand-by mode, wait for red Power LED to stop flashing before you re-
move the module's CPU board. Extracting the disk before the switch to standby is
completed can destroy part of the disk or damage its contents. Never handle the
hard disk until the motor has stopped completely (about 4 seconds after the red Power
LED stops flashing).
ar
s

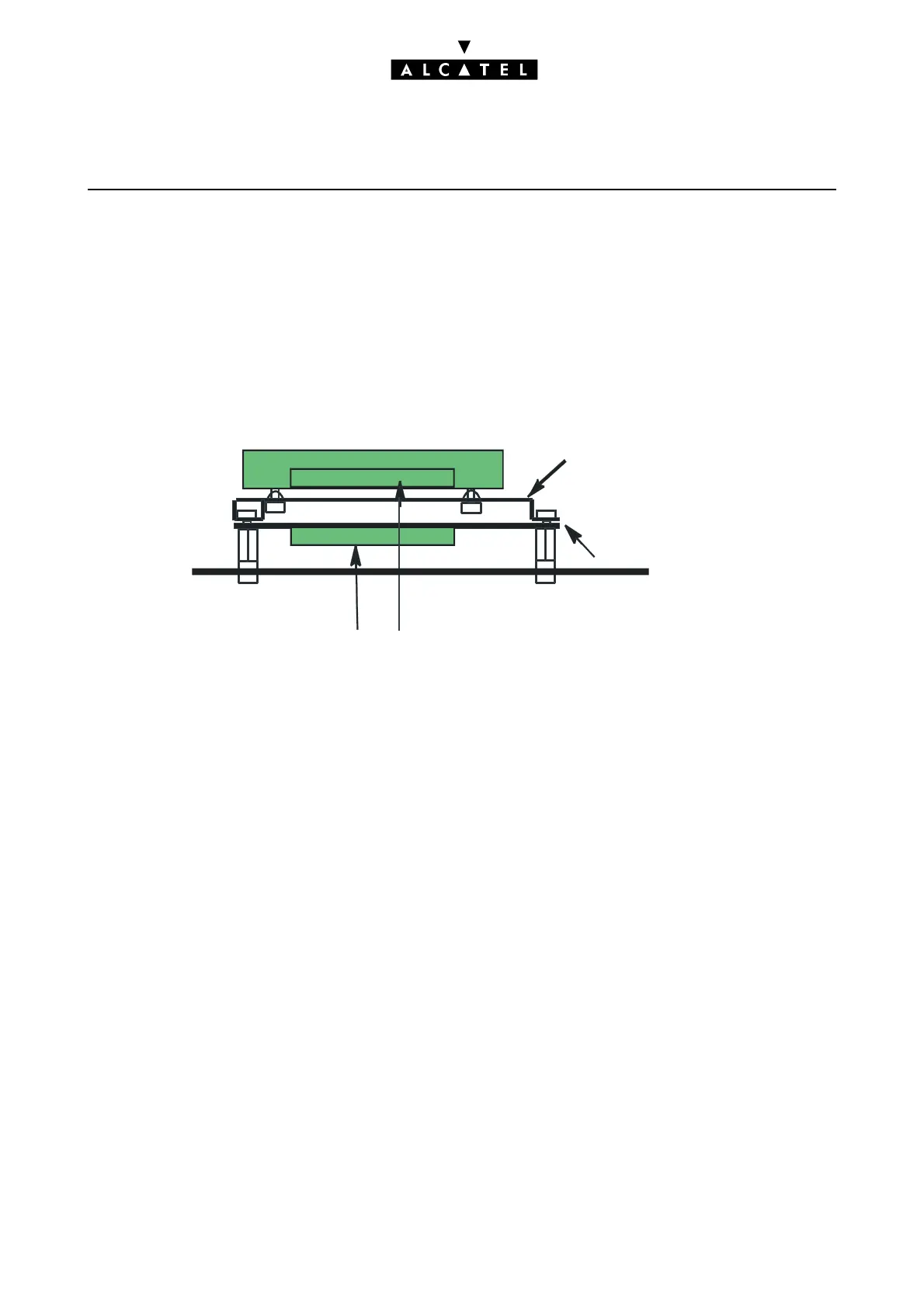

CPU board
XMEM board
44-point connectors connected b
a flat cable
Support
