PERMANENT LOGICAL LINK (PLL) APPLICATIONS
Ed. 042/4 Réf. 3EH 21000 BSAA

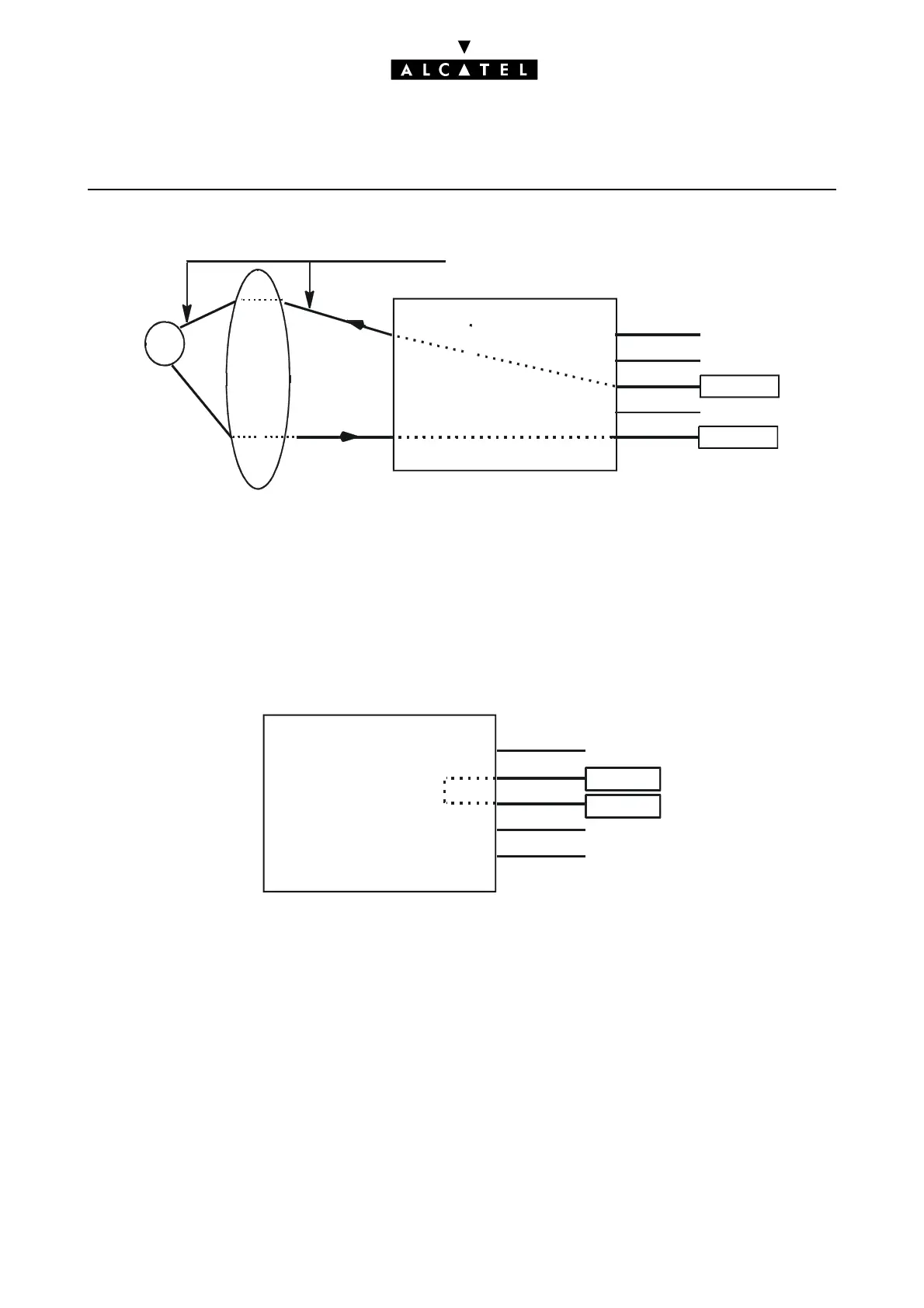

General synopsis of an external PLL
INTERNAL PLLs
The system makes it possible to establish one or several internal PLLs. The following rules apply to in-
ternal PLLs (iPLLs):
- each iPLL associates the trinome [Interface S0, SAPI (16), TEI] with an [Interface S0, SAPI (16), TEI]
trinome.
General synopsis of an internal PLL
S0
S0
S0
S0
S0
T0
T0
PAP
S0 Terminal
I
S
D
N
(fixed 16
sapi, tei)
(fixed 16
sapi, tei)
ePLL
Alcatel OmniPCX Office
S0 Terminal
S0
S0
S0
S0
S0
Alcatel OmniPCX Office
S0 Terminal
(fixed 16
sapi, tei)
(fixed 16
sapi, tei)
PLL
S0 Terminal
