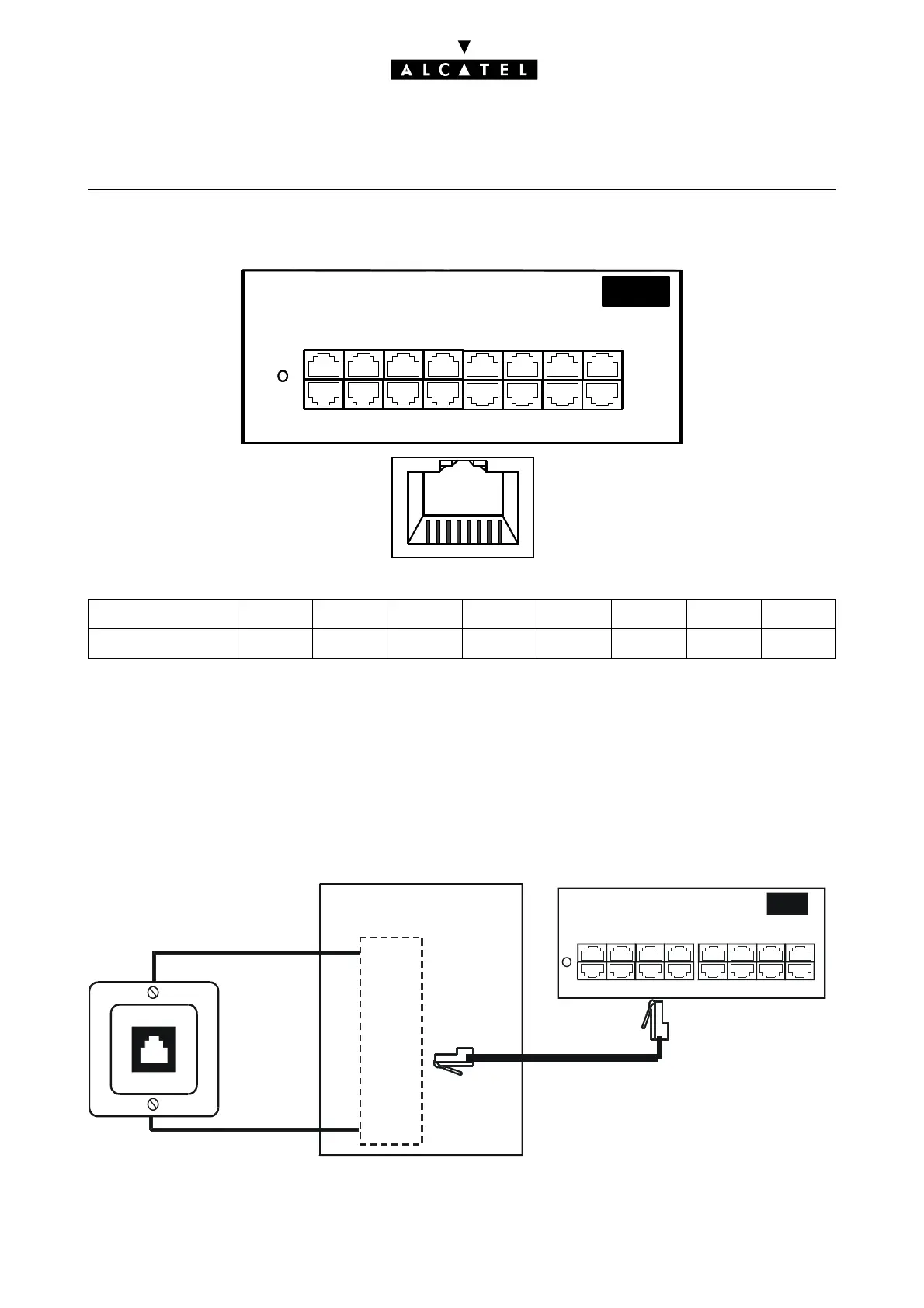

UAI BOARD HARDWARE

Ed. 042/2 Réf. 3EH 21000 BSAA

OUTPUT PORTS (BOARD STIFFENER)

CONNECTING A REFLEXES STATION

The terminals are equipped with a cable and a self-acting switch that plugs into the wall socket. Each

terminal is connected up by a pair of 0.5 or 0.6 mm diameter wires.

System - Reflexes station distances:

- 0.5 mm SYT type cable: 800 m (station without option) or 600 m (station with S0 or Z option)

- 278 type 0.6 mm cable: 1200 m (station without option) or 850 m (station with S0 or Z option)

RJ45 pin 12345678

Outputs L1 L2

12 34

DIGITAL INTERFACES

UAI16

12345678

Female RJ45, front

L2 (5)

L1 (4)

Distribution panel

DIGITAL INTERFACES UAI16

12345678

9 10111213141516
