9. Set the FluxUp, SkipSpeed, VelocityDroop, MaximumFrequency,
MaximumVoltage, and CurrentVectorLimit attributes appropriate for
your application.
See the corresponding section in Appendix D, beginning on page 227
,
for information and configuration examples regarding all of these topics.
10. Click Apply.
11. Select the Motor>Model category.
Motor model attributes are automatically estimated from the
Nameplate/Datasheet parameters. For improved performance, motor
tests can be run.

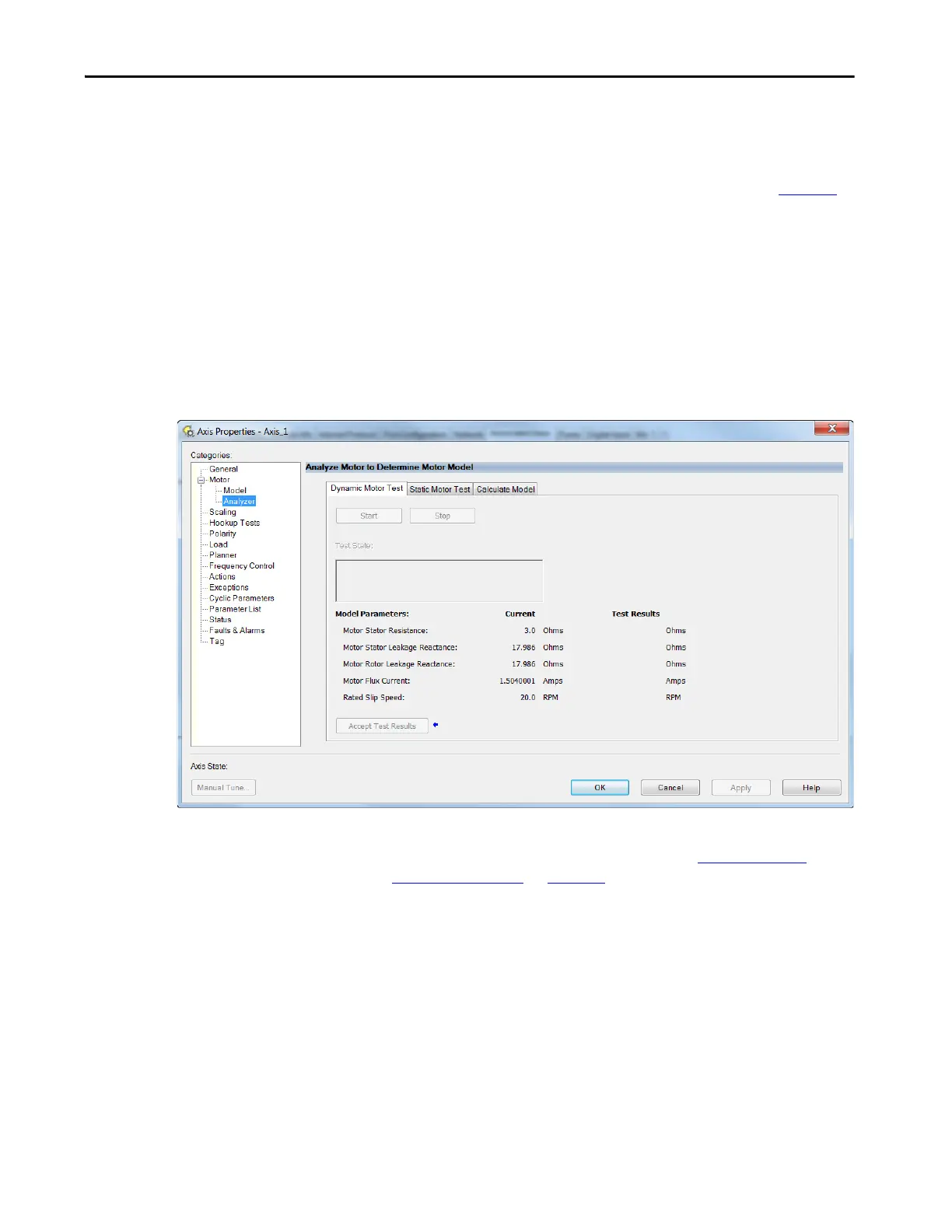

12. Select the Motor>Analyzer category.
13. The Analyze Motor to Determine Motor Model dialog box opens.
14. Click one of the motor test tabs.
In this example, Calculate Model is chosen. See Motor Tests and
Autotune Procedure on page 244 for information about each of the
tests.
15. Click Start.
16. Click Accept Test Results.
17. Click OK.
