54 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019

Chapter 3 Mount the Kinetix 5500 Drive System

These hole patterns apply to standalone drives.

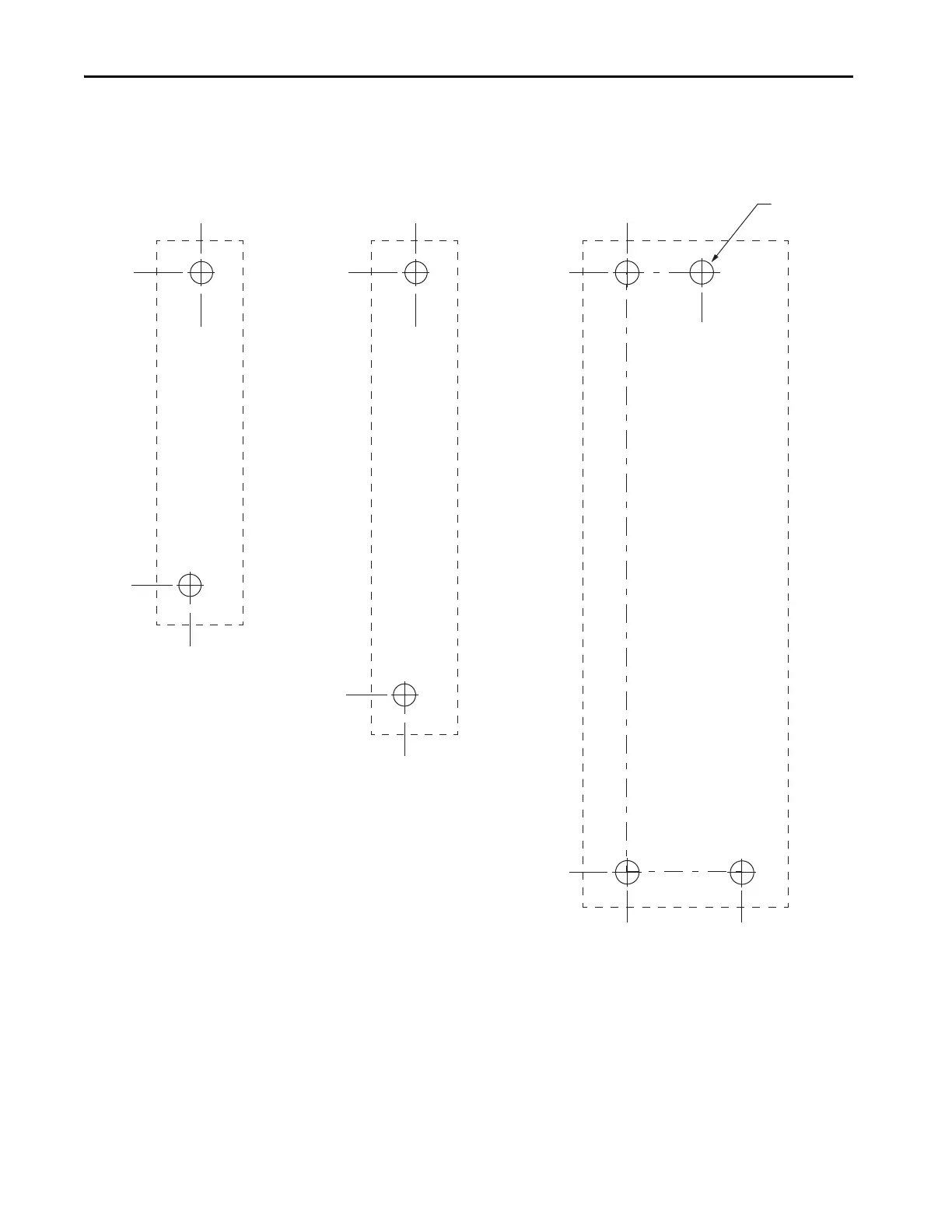

Figure 24 - Frame 1, Frame 2, and Frame 3 Standalone Hole Patterns

243.84

5.00

193.68

4.51

273.70

52.50

34.00

ØM4 (#8-32)

Frame 3

Standalone Drive

Frame 1

Standalone Drive

Frame 2

Standalone Drive

Hole spacing is measured in millimeters and not

converted to inches to avoid errors due to rounding.
