58 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019

Chapter 3 Mount the Kinetix 5500 Drive System

This hole pattern applies when transitioning from frame 3 drives to frame 1

drives. To mount additional frame 1 drives to the right of Axis 2 in this figure,

refer to the frame 1 hole pattern in Figure 25

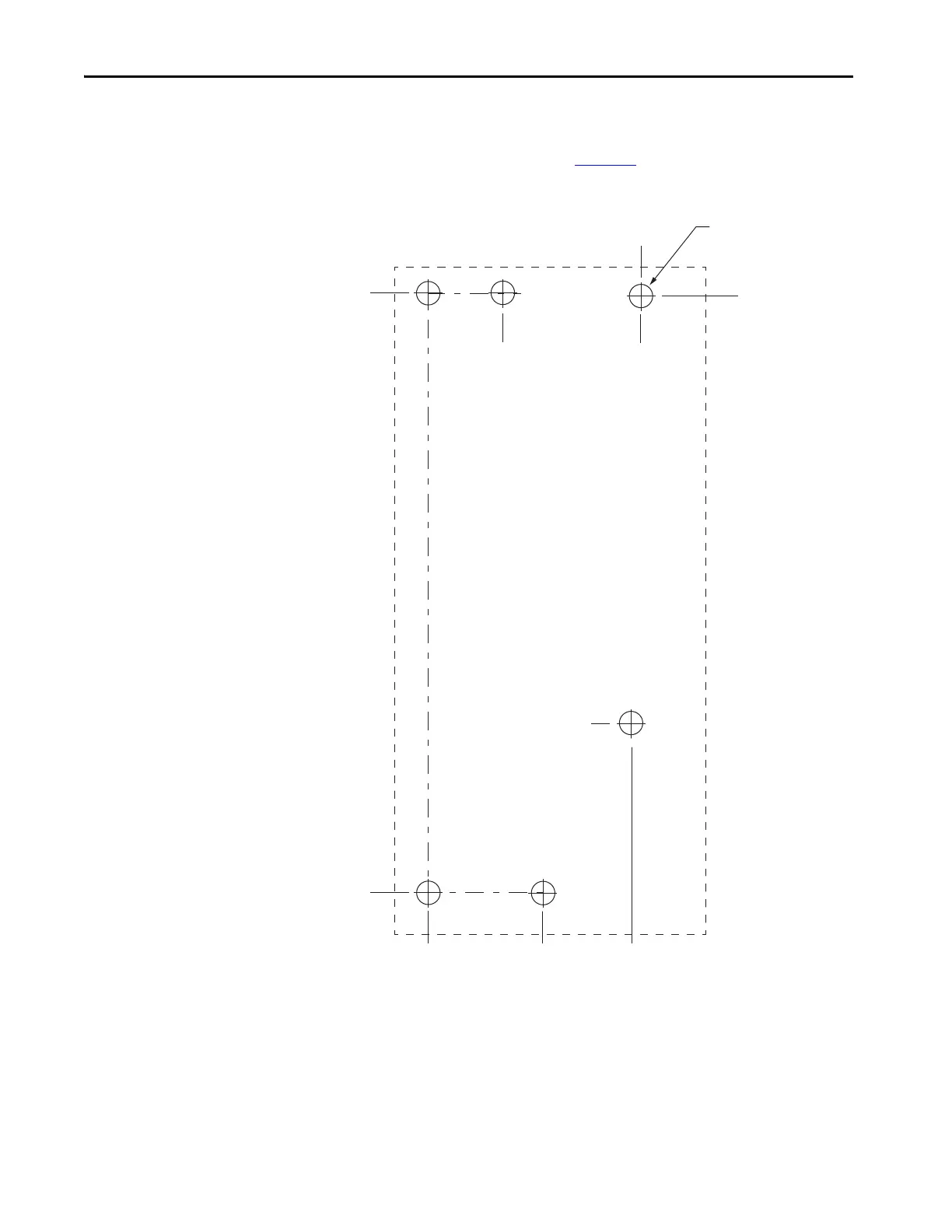

Figure 28 - Frame 3 to Frame 1 Hole Pattern

273.70

52.50

ØM4 (#8-32)

Axis 1

(frame 3)

Axis 2

(frame 1)

272.23

78.55

92.70

97.20

34.00

Hole spacing is measured in millimeters

and not converted to inches to avoid

errors due to rounding.
