3.2 Measuring Waveform
3-9
3
Measurement Examples

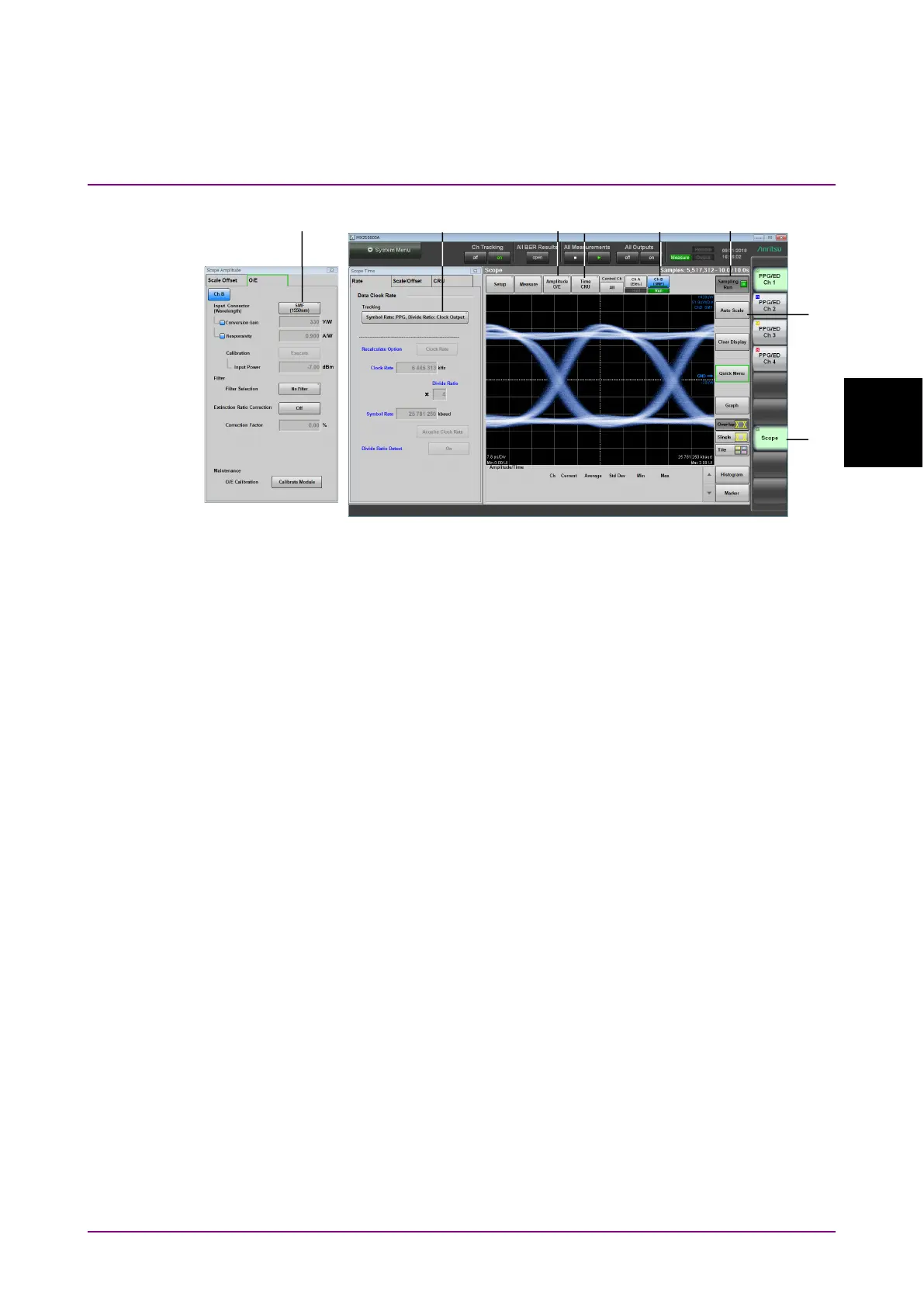

Figure 3.2-6 User Interfaces Used For Operating Scope
(Numbers Shown Correspond to Step Numbers.)
7. Click
Scope. Refer to Chapter 6, “How to Operate Sampling Scope”,
for details of the operation method.
8. Click
Time.
9. Click
Rate and set Tracking.
10. Click
Amplitude O/E.
11. Click
O/E and set Input Connector (Wavelength).
12. Click
Ch B.
13. Click
Sampling, and you will see that Sampling is followed by Run.
14. When the waveform is displayed, click
Auto Scale.
7
10
8
14
12
9
11
13
