5.2 PPG/ED Panel
5-17
5
How to Operate BERT

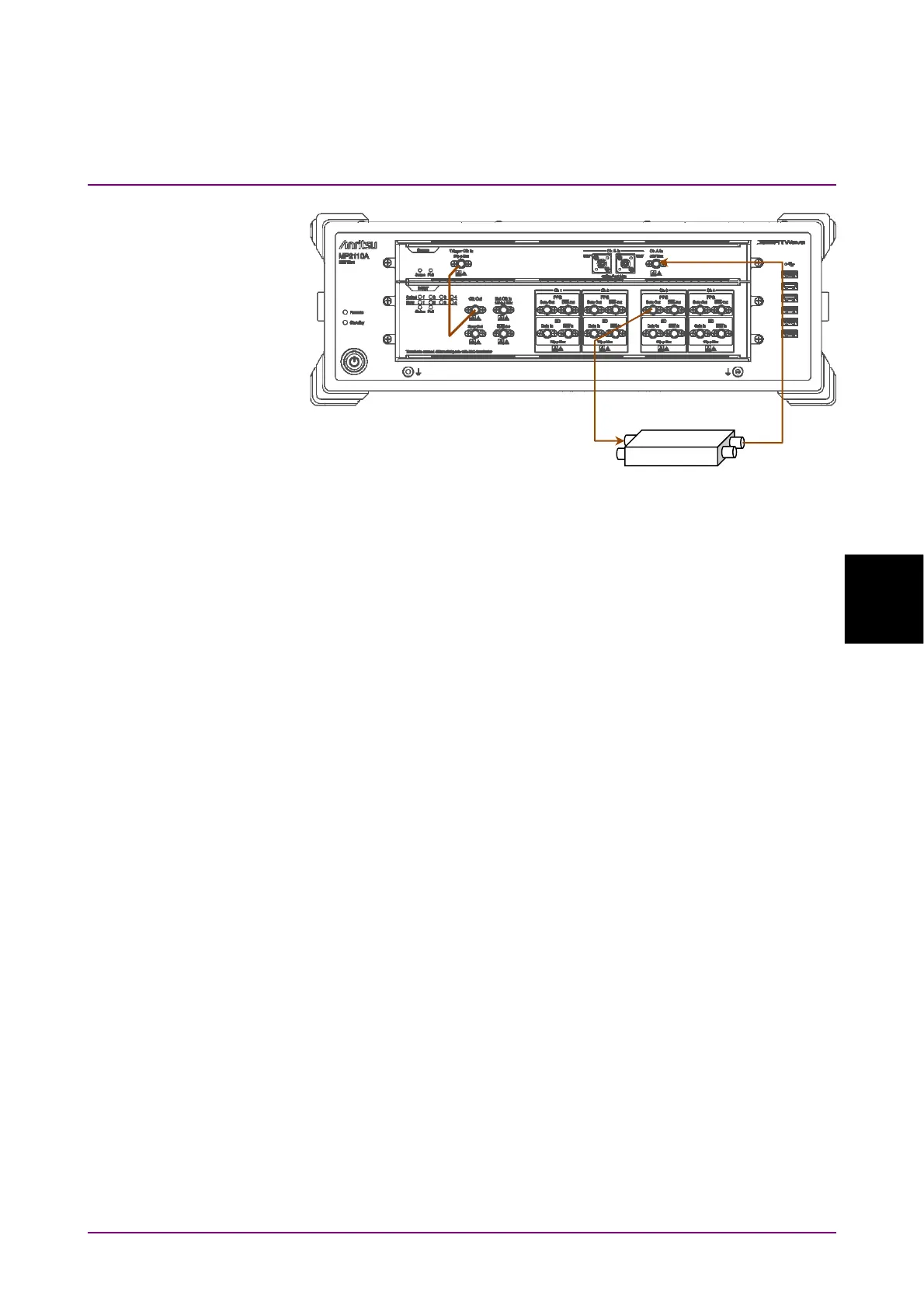

Figure 5.2.6-2 Connection Example When Setting Ch3/4 at Clk Out
5.2.7 Inserting Bit Error
Insert a bit error when confirming whether to detect the bit error at the
ED. The number of bit errors to be inserted at one time is determined
according to the bit rate.
24.3 to 28.2 Gbit/s : 20 bit
9.5 to 14.2 Gbit/s : 8 bit
Inserting bit errors one bit at a time using screen operation
Click Insert Error.
When inserting the bit error, the indicator on the right side of Insert
Error lights red.
To Next Page
