Anritsu MP2110A BERTWave - Amplitude Accuracy

Chapter 7 Performance Test
7-26
7.3.2 Amplitude accuracy
(1) Specification
(–2%–offset amplitude accuracy) to (+2%+offset amplitude accuracy)
The offset amplitude accuracy after calibration is as shown in the
following figure.

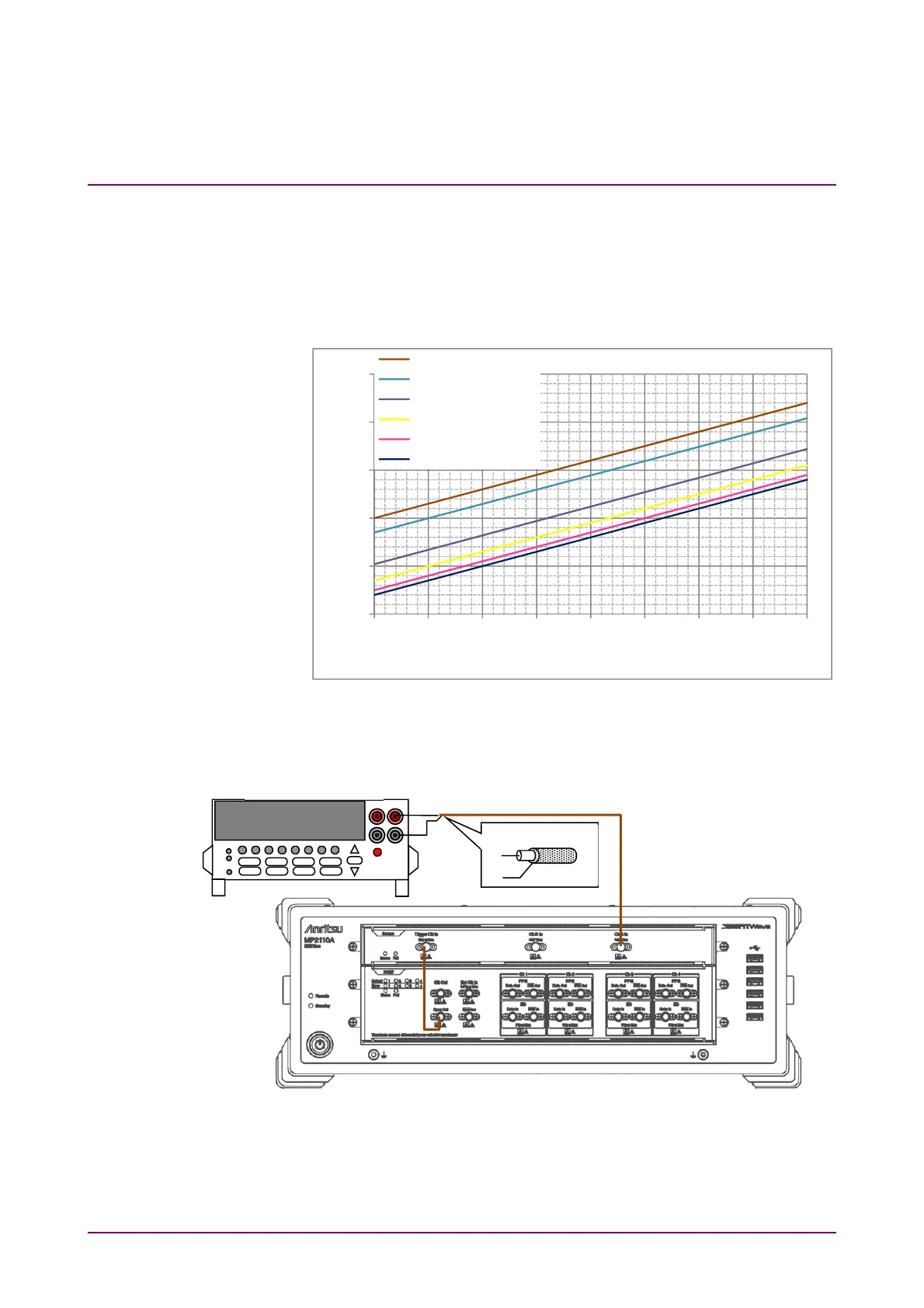

Figure 7.3.2-1 Offset Amplitude Accuracy
(2) Setup
Figure 7.3.2-2 Amplitude Accuracy Test Connection Diagram
(When using a PPG of MP2110A)
0
5
10
15
20
25
0 50 100 150 200 250 300 350 400
Amplitude Accuracy (±mV)
Difference from Offset Voltage (mV)
Scale=250 mV/div
Scale=200 mV/div
Scale=100 mV/div
Scale=50 mV/div
Scale=15 mV/div
Scale=1 mV/div
Coaxial Cable
+
-
DC Power Supply
