7.2 Performance Test for Error Detector
7-13
7
Performance Test
7.2.2 Operating frequency
(1) Specification
Without MP2110A-093:
24.3 Gbit/s –100 ppm to 28.2 Gbit/s +100 ppm
With MP2110A-093:
24.3 Gbit/s –100 ppm to 28.2 Gbit/s +100 ppm,
9.5 Gbit/s –100 ppm to 14.2 Gbit/s +100 ppm
BER 10
–12
or less under the following conditions:

Amplitude: 0.05 Vp-p

Pattern: PRBS2^31–1

Mark ratio: 50%

Single-end

Back-to-back connection
(2) Setup

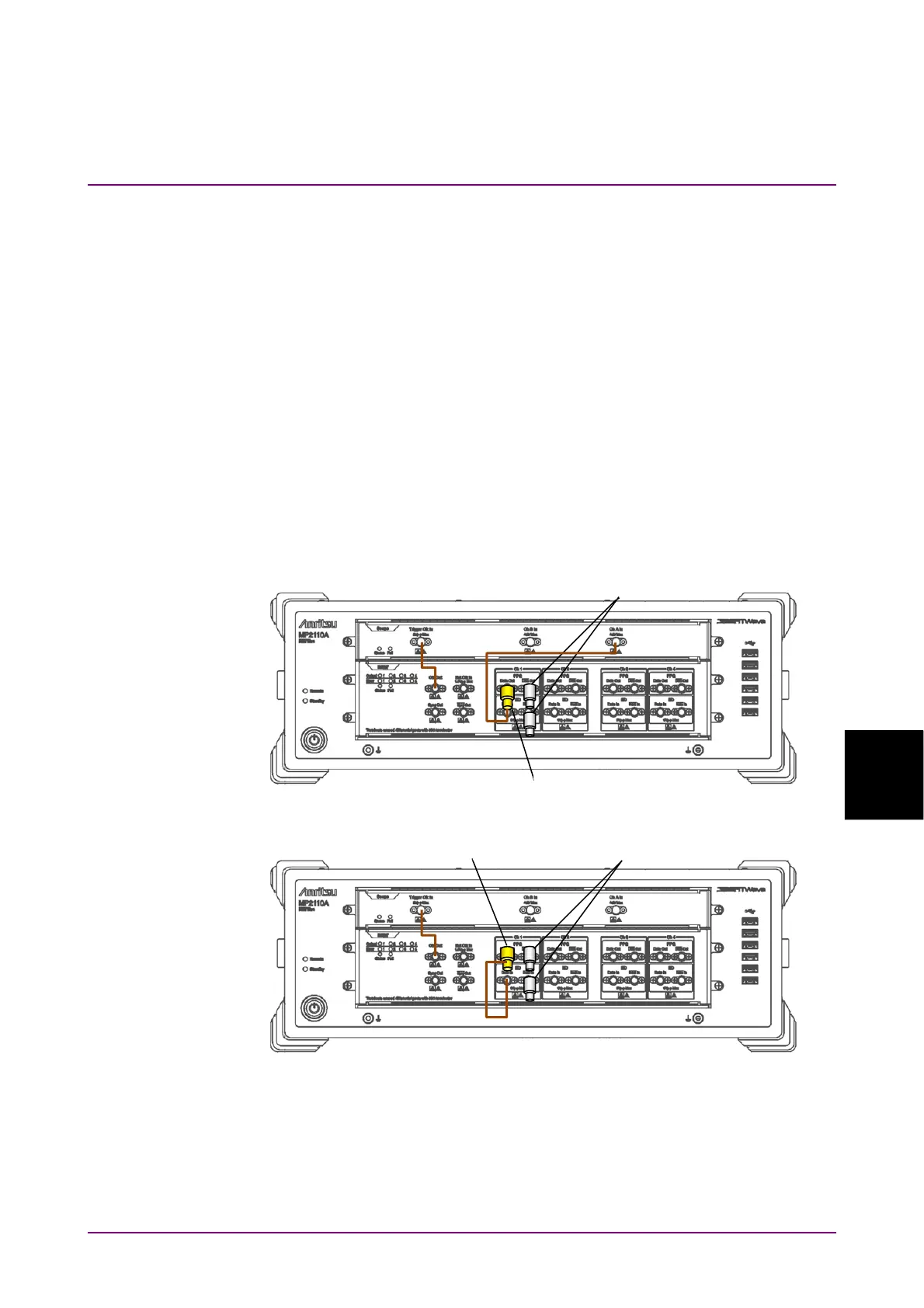

Figure 7.2.2-1 ED1 Data In Input Sensitivity Test Connection Diagram
Coaxial Terminator
Fixed Attenuator
Coaxial Terminator
Fixed Attenuator
(a) Amplitude Check
(b) Input Level Measurement
