4.4 Multi-channel Signal Output
4-19
4
Screen Operation
4.4 Multi-channel Signal Output
The MP2110A can set PPG channels 1 to 4 to On/Off at the same time.
To output signal from PPG:
1. Click
on at All Outputs shown in Figure 4.4-1.
2. The letters of
on turn green and then the Output status indicator
turns green.

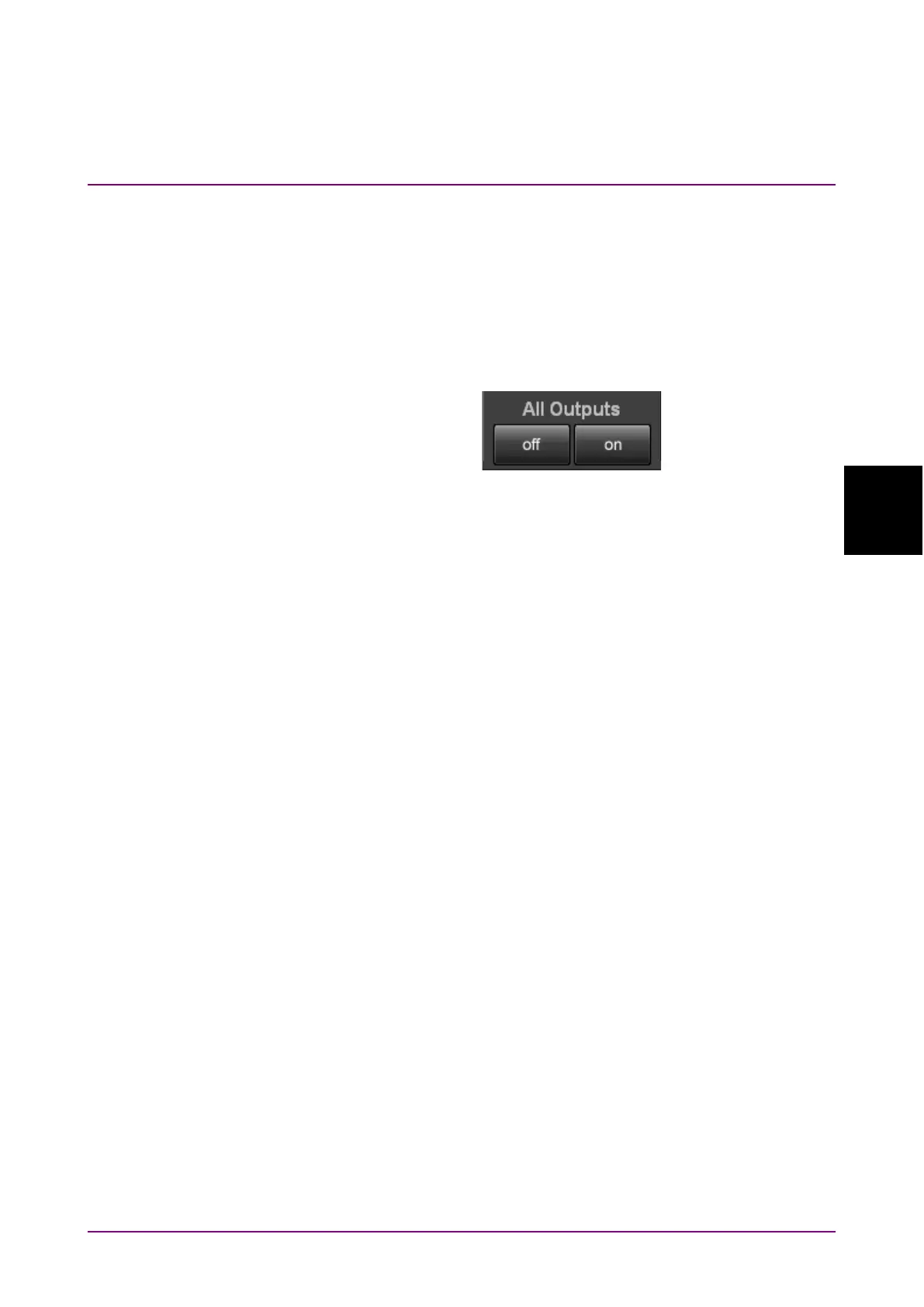

Figure 4.4-1 All Outputs Button
Signals are output from all channels of PPG.
To stop the signal output from the PPG:
1. Click
off at All Outputs shown in Figure 4.4-1.
2. The characters of
on are changed to white and then the Output
status indicator turns off.
The data signal output is stopped for all the PPG channels 1 to 4.
Note:
When you start the MX210000A,
off is set for All Outputs.
