6.7 Collecting Data
6-71
6
How to Operate Sampling Scope
Collecting Data
6.7
The data collection method is composed of the following types.
Data synchronization method: Eye mode, Pulse mode, Coherent eye mode
Cumulative display for waveform: None, Infinite, Limited, Persistency,
Average
Note:
In this document, measurement of one data item on the screen is
described as “data capture” while obtaining one screen of data is
described as “data collection”.
To switch to Eye/Pulse/Coherent Eye mode
1. Click Setup.
2. When MP2110A-095 is installed, click the Signal Type button and
select NRZ or PAM4.
3. In the Setup dialog box, click the Sampling Mode button to change it
to Eye, Pulse, or Coherent Eye.
The Coherent Eye mode is used when calculating the waveform of
Channel A and Channel B.

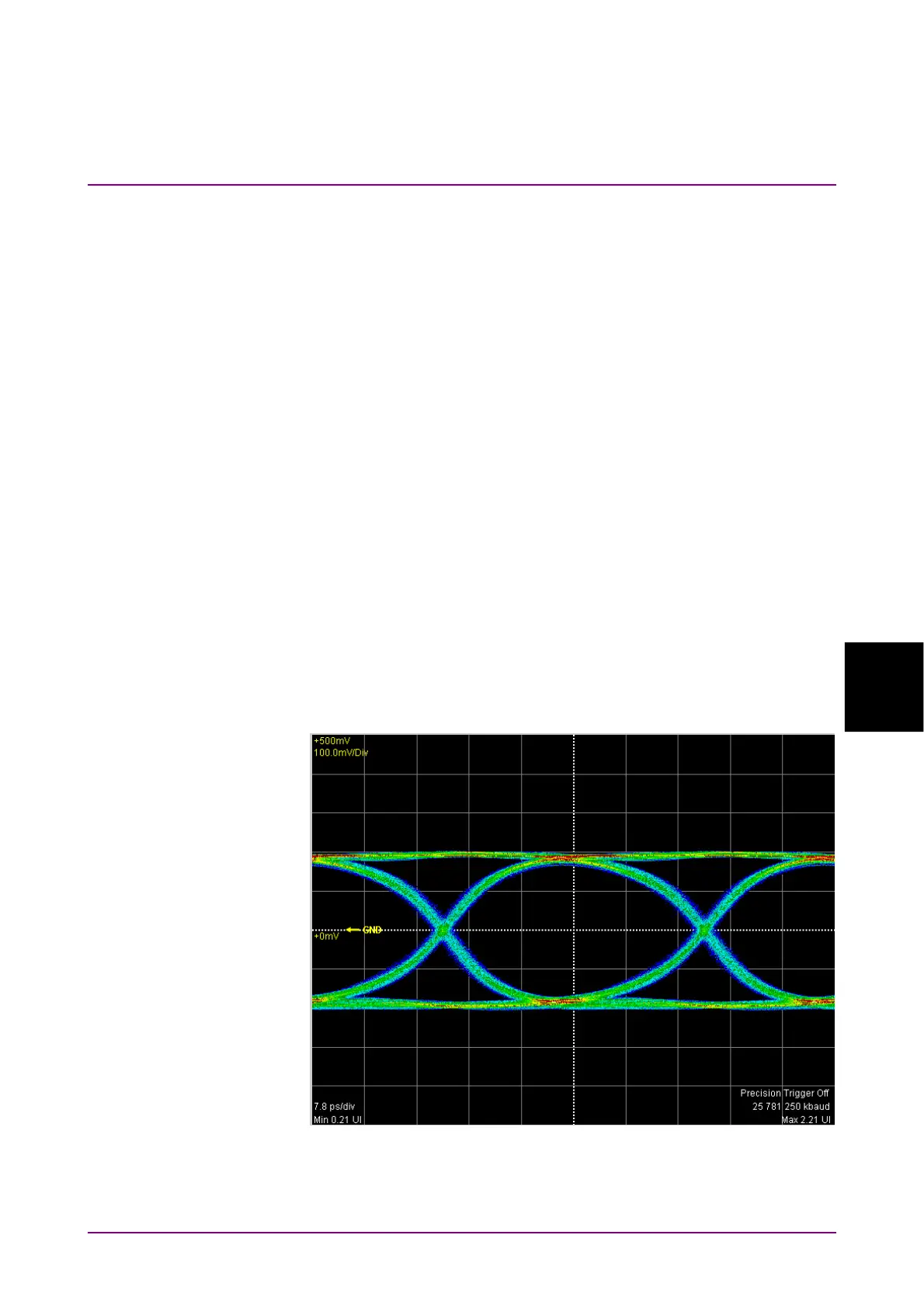

Figure 6.7-1 Eye Mode/Coherent Eye Mode Display Example
