Anritsu MP2110A BERTWave - Error Detector

Appendix A Specifications
A-10
*8: Selecting Clock Source to Ch1/2 when measuring Ch1 and Ch2,
Selecting Clock Source to Ch3/4 when measuring Ch3 and Ch4.
*9: Selecting Clock Source to Ch3/4 when measuring Ch1 and Ch2,
Selecting Clock Source to Ch1/2 when measuring Ch3 and Ch4.
A.2.3 Error Detector

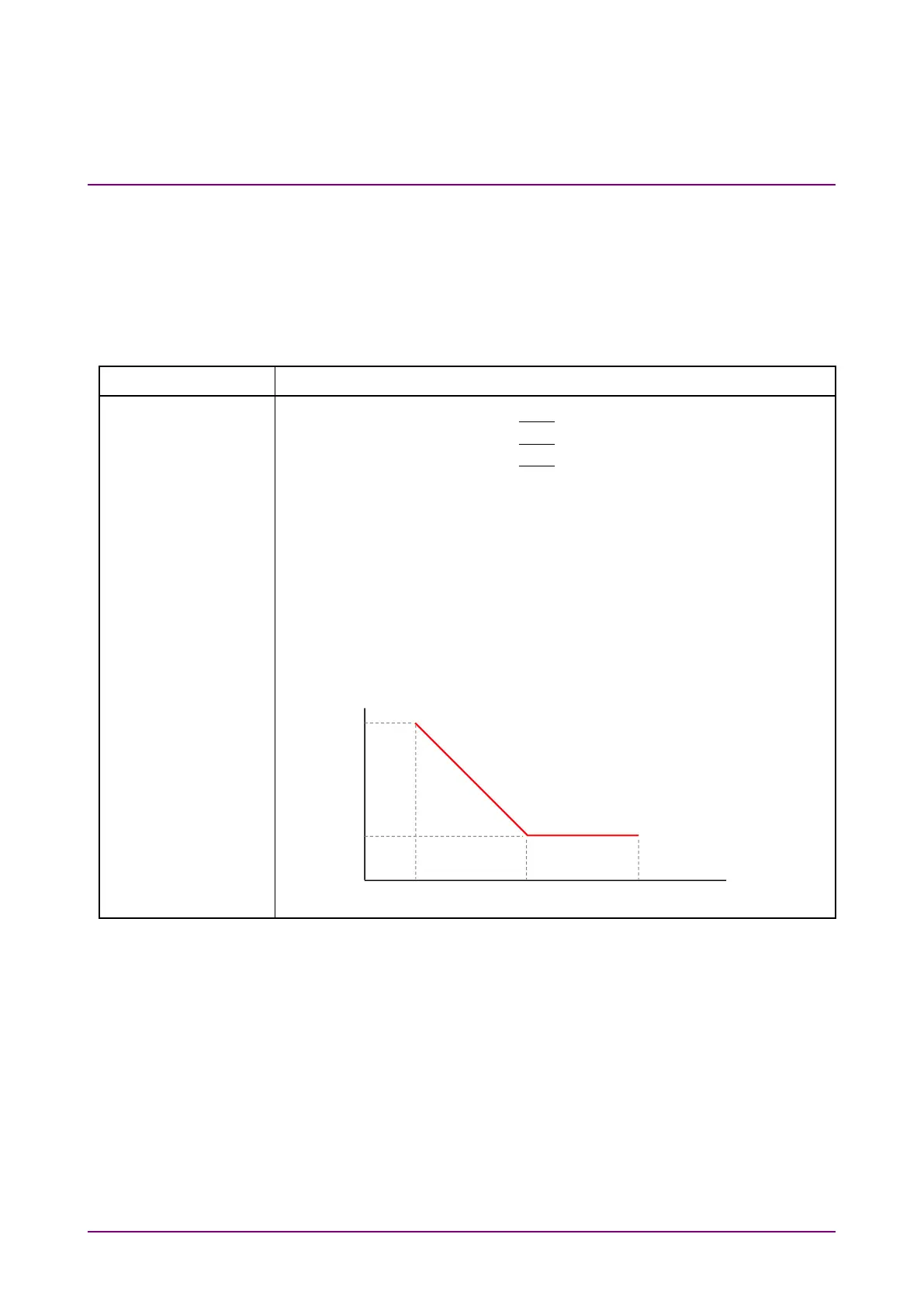

Table A.2.3-1 ED
Item Specifications
Data Input
Number of Input
MP2110A-011: 1 (Data,
Data
) (Single-ended, differential input)
MP2110A-012: 2 (Data,
Data
) (Single-ended, differential input)
MP2110A-014: 4 (Data,
Data
) (Single-ended, differential input)
Data Format
NRZ, Mark ratio 50%, Single-ended or differential input
Amplitude
0.05 to 0.8 Vp-p
Termination
50
Ω
, AC coupled (DC component is terminated to the GND through a
resistance of 50
Ω
.)
Threshold
–0.085 to +0.085 V*
1
, 1 mV resolution
Sensitivity
25 mVp-p*
2,
*
3
, typ. (25±5°C)
40 mVp-p*
2,
*
3
, max.
Connector
K, female
Jitter Tolerance*
2,
*
4
*1: Guaranteed under the following conditions:
• Single-ended
• External attenuator factor 0 dB
*2: Guaranteed under the following conditions:
• Bit rate: 25.78125 Gbit/s
• Pattern: PRBS2^31–1
• Single-ended
*3: Guaranteed under the following conditions:
• Mark ratio 1/2
• Loop-back connection
*4: Amplitude: 50 mV
5 UI
p-p
0.05 UI
p-
p
100 kHz
10 MHz
100 MHz
Sinusoidal jitter
amplitude
