Appendix C File Specifications
C-2
C.1 Mask file Specifications
The mask file specifications reading with Sampling Scope is as follows.
Table C.1-1 Mask File Specifications
Item Specification
Save folder
C:\Users\Public\Documents\Anritsu\MX2
10000A\Userdata\Mask
File extension
txt
The mask file is the text format file.
Describe the coordinates of the mask vertices, in which the mask margins
are 100% (max.), 0%, and –100% (min), in the file.

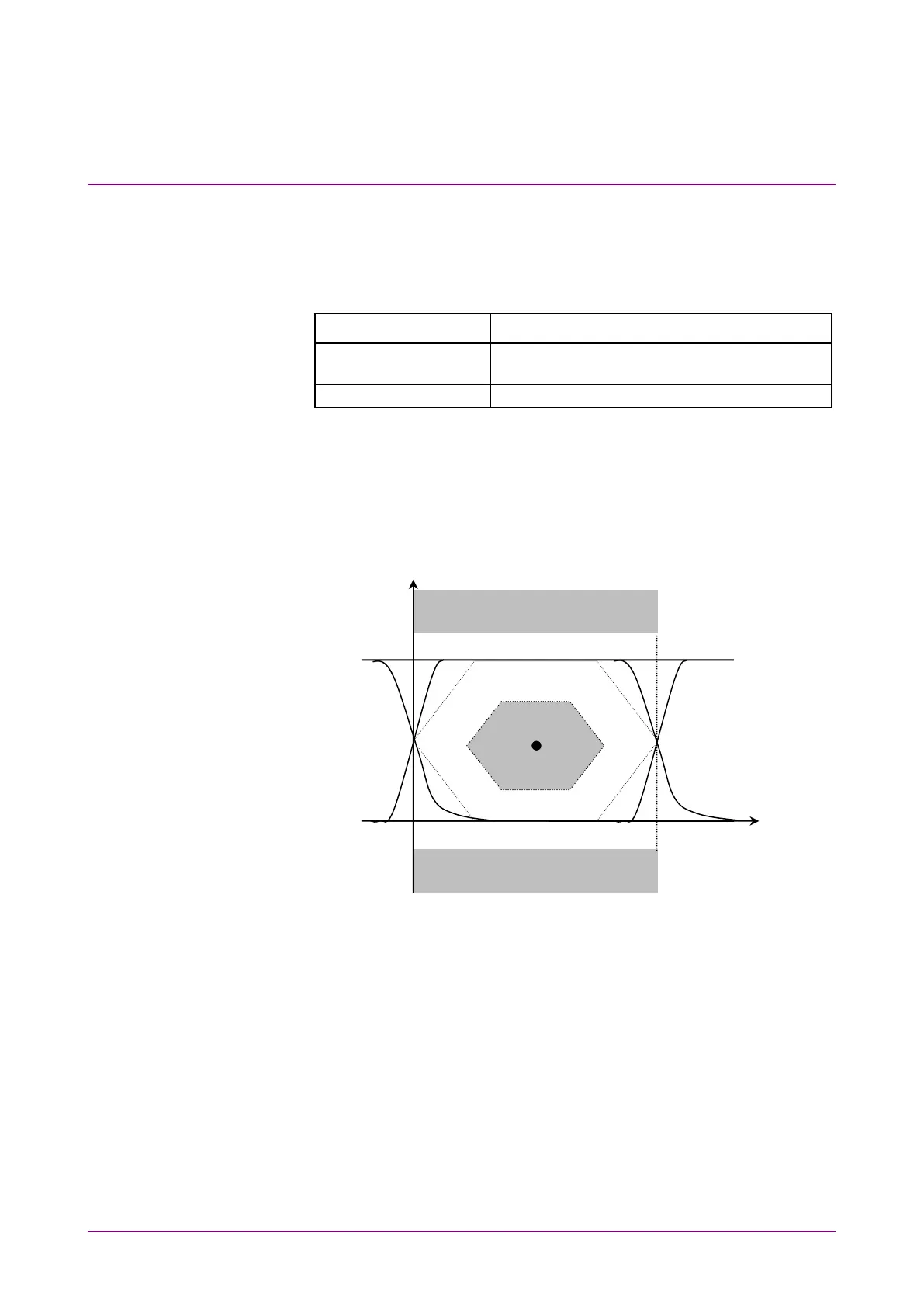

Figure C.1-1 Coordinate System of Mask
1
0
y
Top
Middle
Bottom
x
100% (max.)
–
100% (min.)
0%
–
99
99
1
