Ateis IDA8C User Manual

System Products 157
© 2020, ATEÏS. All rights reserved.

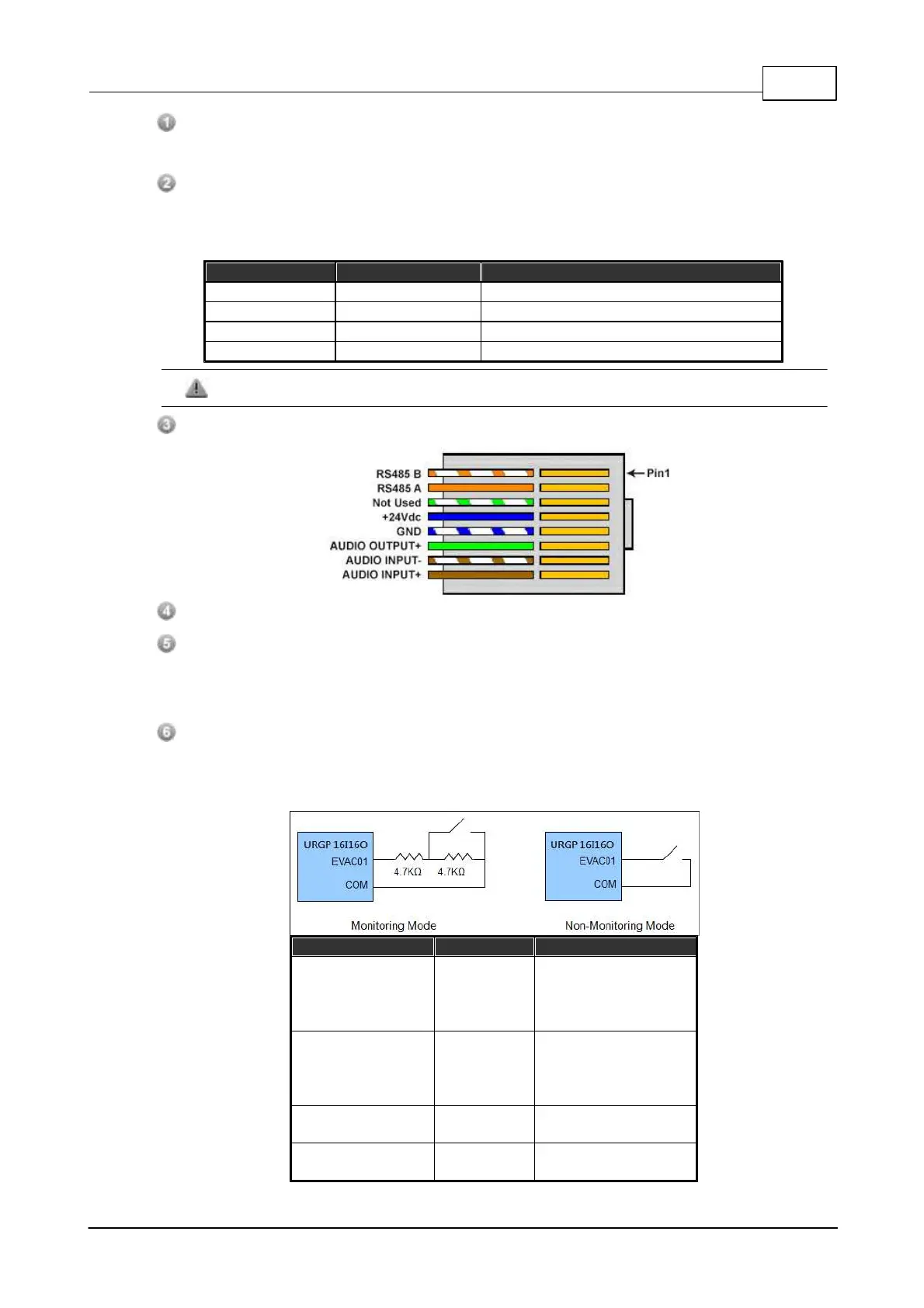

24V DC Input:
Main 24VDC power supply connector.
Fault Inputs:
4 fault inputs received logic signals and used as switches. See the table and figure below:
Definition
Circuit
Status
NO
Open
Inactive
NO
Short
Active
NC
Open
Active
NC
Short
Inactive
Do not input the external power voltage to this connector, it might damage the device.
RS485 Connector: 8C8P RJ45 connector for RJ45 connection.
RS232 Connector
Evacuation Outputs:
When the input pin of URGP16I16O component is logic high, the channel on Evacuation Output
will output 5VDC.
Evacuation Inputs:
16 evacuation contact inputs for expanding the channels for IDA8 system. The following table
and figure show the status of the inputs.
Mode
Definition
Status
Monitoring
NO
Short Circuit
Open: Inactive
Close: Active
Line Open
Monitoring
NC
Short Circuit
Open: Active
Close: Inactive
Line Open
Non-Monitoring
NO
Open: Inactive
Close: Active
Non-Monitoring
NC
Open: Active
Close: Inactive
