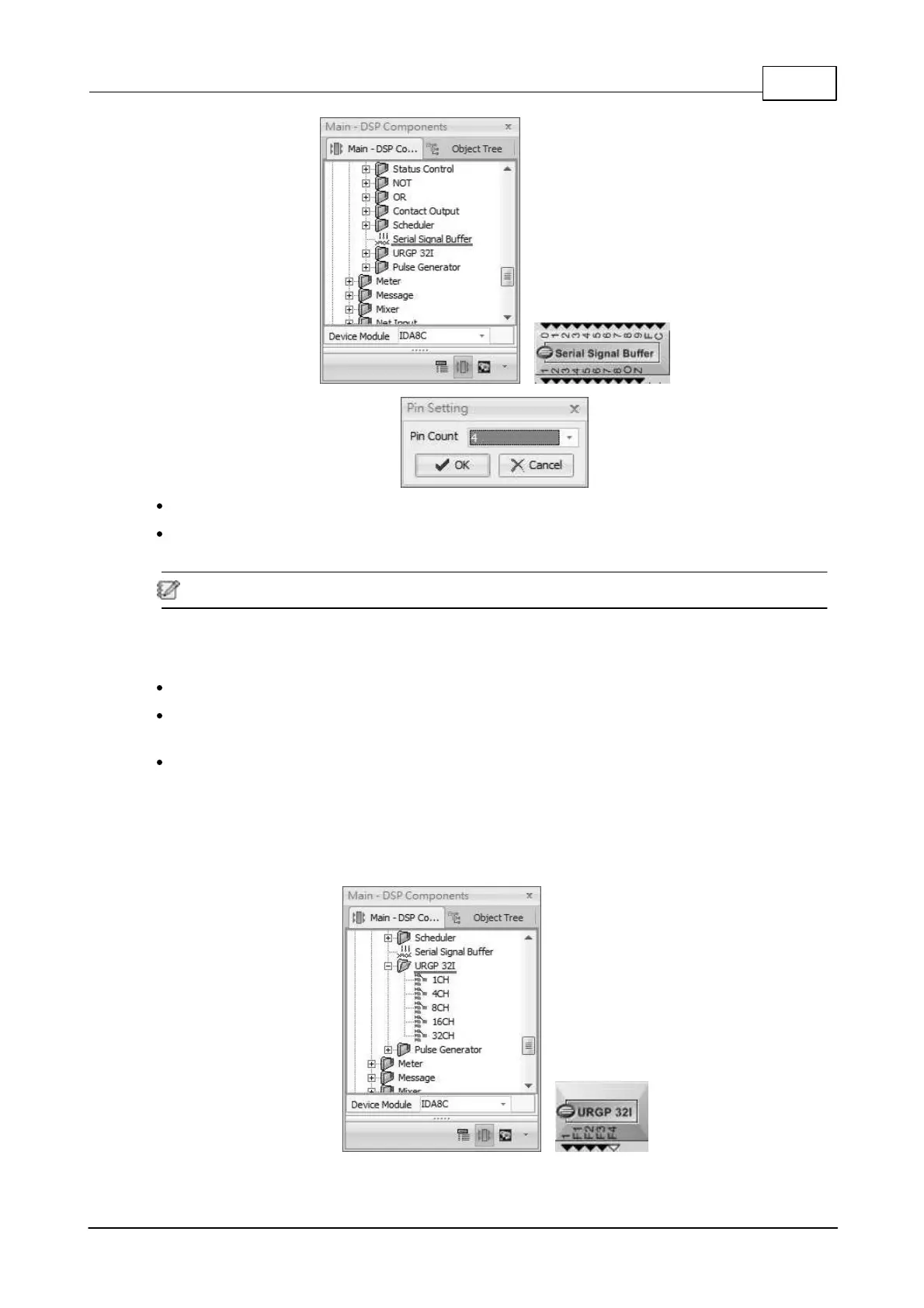

Pin Count: Choose the binary code of the output.
F Pin: Output the binary codes/binary combinations which are converted from decimal codes/
decimal combinations after the F Pin is triggered.
The higher of the Pin count indicates higher priority of decimal codes.
o Pin 1: LSB stands for the first priority of decimal codes.
o Pin 4: MSB stands for second priority of decimal codes.
C Pin (Clear): All the decimal combinations will be 0 (clear away) if the C Pin is triggered.
O Pin (Overflow): If the output range of decimal combinations are more than the range of binary
codes, the O Pin will output a pulse as a warning.
Z Pin (Zero): If the total output of decimal combination is 0, the Z Pin will output a pulse as a
notification.
6.13.25 URGP32I
This component corresponds to URGP peripheral devices, which offers more logic input channels of
audio processor.
