Ateis IDA8C User Manual

System Configuration 249
© 2020, ATEÏS. All rights reserved.

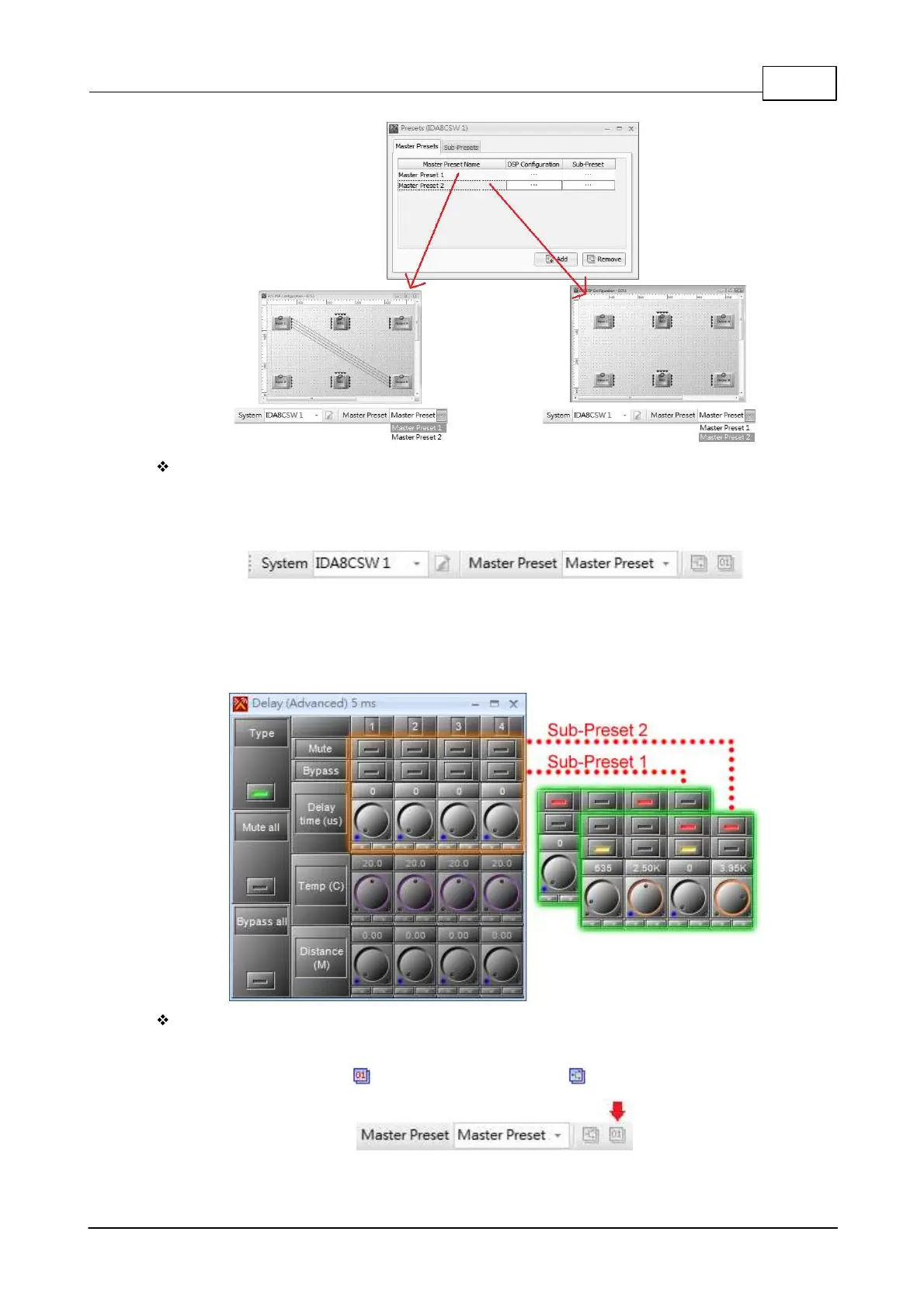

Master Preset Switching: There can only have one master preset active at a time. Therefore, you
can change the master to the other preset you want to edit. At run time, change the master preset
to make the Ateis device working on a different DSP design belong to the master preset.
Click the drop-down box of Master Preset to switch to master presets:
5.2.2 Sub-Presets
The Sub-Preset allows to define and store the values of different component elements(volume gain,
frequency, mute, etc.) you want to associate in one Sub-Preset. By loading a Sub-Preset you
created, all associated elements will adopt the pre-defined values to their target values.
Sub-Preset Management
Create or remove Sub-Presets:
1. In the tools bar, click [ SPreset] button next to the [ MPreset] button.
