IDA8 Global-Net User Manual214
© 2020, ATEÏS. All rights reserved.
o Mono Input/Output: 4 channels audio input and 4 channels
output of digital audio
o Stereo Input/Output: 2 Channels audio input (2 x 2) and 2
channels output of digital audio (2 x 2)
o Duplex Stereo (2 CH for each channel): 4 channels audio
input (1,2 CH) and 2 channels outputs of digital audio (3,4
CH)
Volume display for each channel
Digital transmission can be reach 100 meter

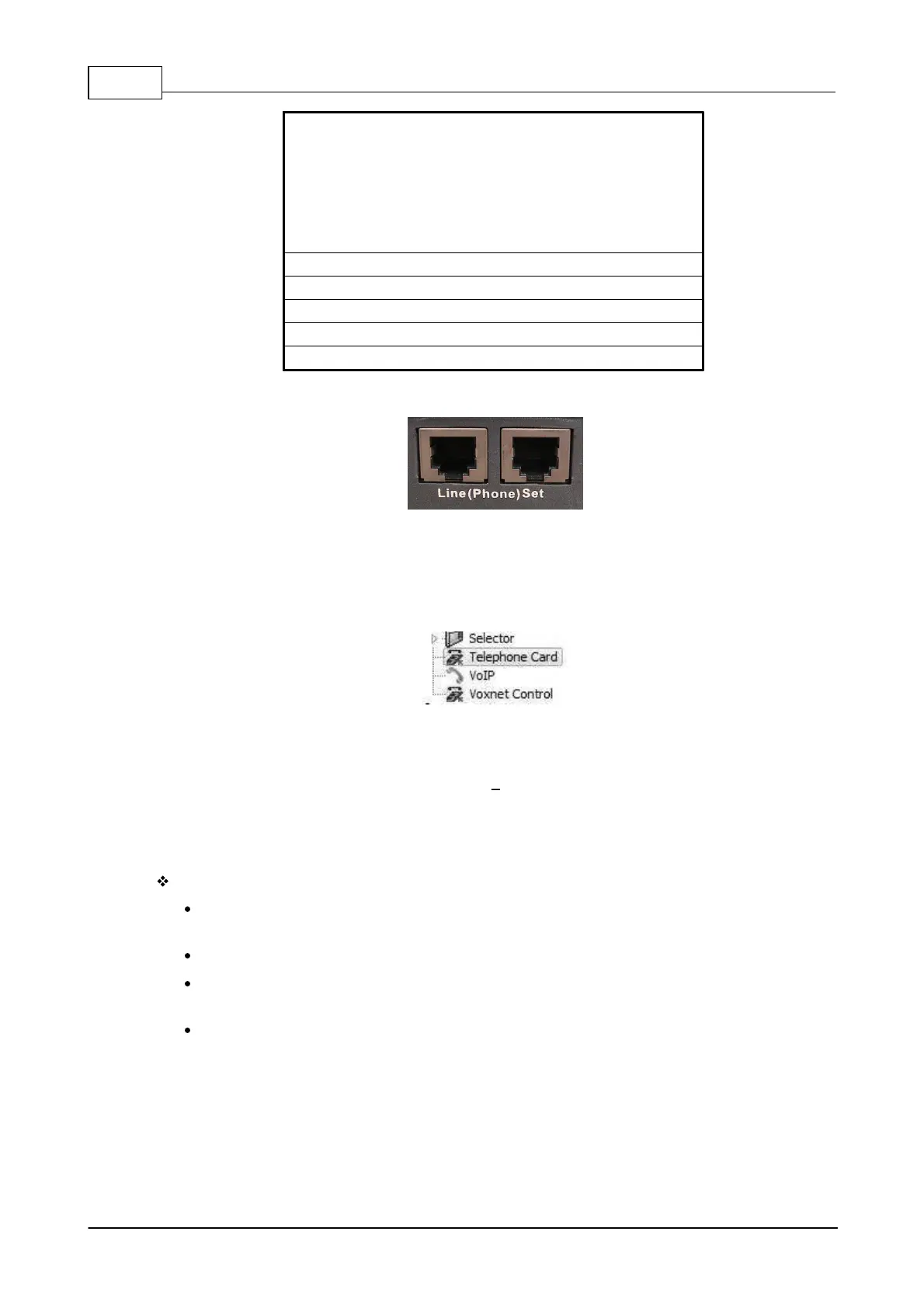

3.6.3 Telephone Card
By linking the "Line" connector of the ECS to a telephone line, and by using a microphone and a
loudspeaker, then you can use the ECS as a telephone interface.
The interface of this telephone is available by using the “Telephone Card” dedicated components, in
Ateïs Studio software, which are TC transmit and TC receive.
In option, you can also connect a telephone to the "Set" connector of the ECS allowing you to have
a physical interface.
The telephone line bandwidth is around 300hz 3.3khz. It's due to its narrow bandwidth we
simulate.
The sound is up to 6.6 kHz for comfortable listening. But there is a distortion resulting in a metallic
sound. You can put a low-pass filer to cut above 3.5kHz, that will help.
Schematic:
Connect the direct telephone line or a line coming from a PABX central to the "Line" RJ11
connector of the ECS.
In option, you can also connect an analog telephone to the "Set" RJ11 connector of the ECS.
Connect a microphone or audio source to an input of the ECS. It will be used as telephone
microphone.
Connect a listening system (loudspeaker) to an output of the ECS. It will be used as a
telephone speaker.
