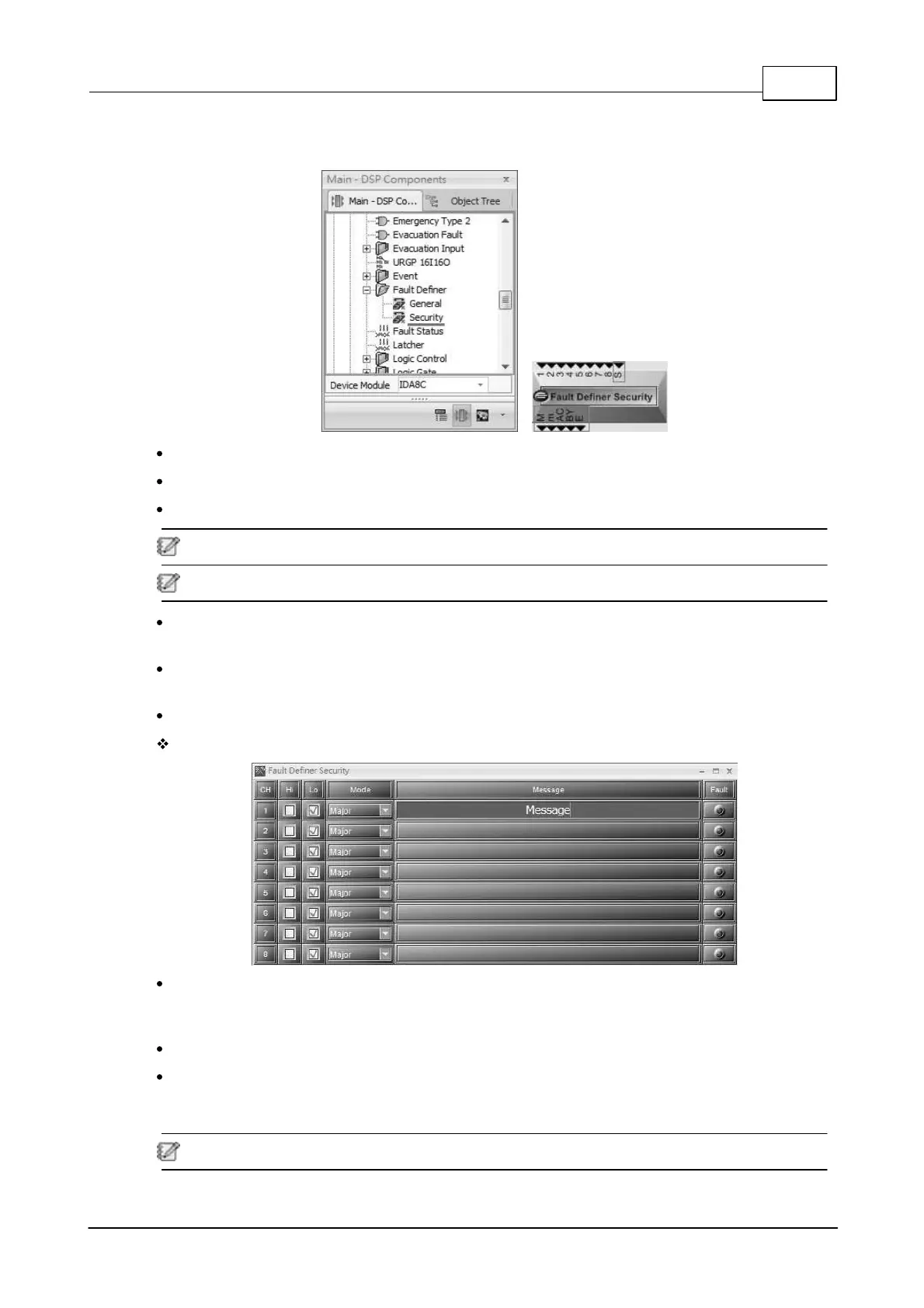

6.13.11.2 Fault Definer Security
Allow to trigger the customized faults in the status of security mode.
S (Security) pin: When the S pin is high, the IDA8 system will enter the security mode.
M (Major) pin: When the system has major fault, the M pin is high.
m (Minor) pin: When the system has minor fault ''only'', the m pin is high.
When the system has no faults, the M pin and m pin is low.
When the system has both major fault and minor fault, please note only the M pin is high.
AC (AC power) pin: When the AC power supply is present, the AC pin is high. On the contrary,
when the AC power is not present, the AC pin is low.
BY (bypass mode) pin: When the system enters the bypass mode, the BY pin is high. On the
contrary, the BY pin is low when the system is not in bypass mode.
E pin: When the evacuation event is triggered by IDA8 system, the E pin is high.
Control window
Hi/Lo checkbox: Define the channel pin either high or low, and the message which users has set
in [Message] field will be displayed on the Fault List of LCD front panel on IDA8C and Ateis Studio
software as the reporting message.
Mode: To define the fault is a major or minor fault.
Message: Define the message as the reporting message when the channel pin is High/Low based
on the [Hi/Lo] settings you set, and this message will be displayed on the Fault List of LCD front
panel on IDA8C and Ateis Studio software.
The maximum length of message is 50 character strings.
