IDA8 Global-Net User Manual188
© 2020, ATEÏS. All rights reserved.

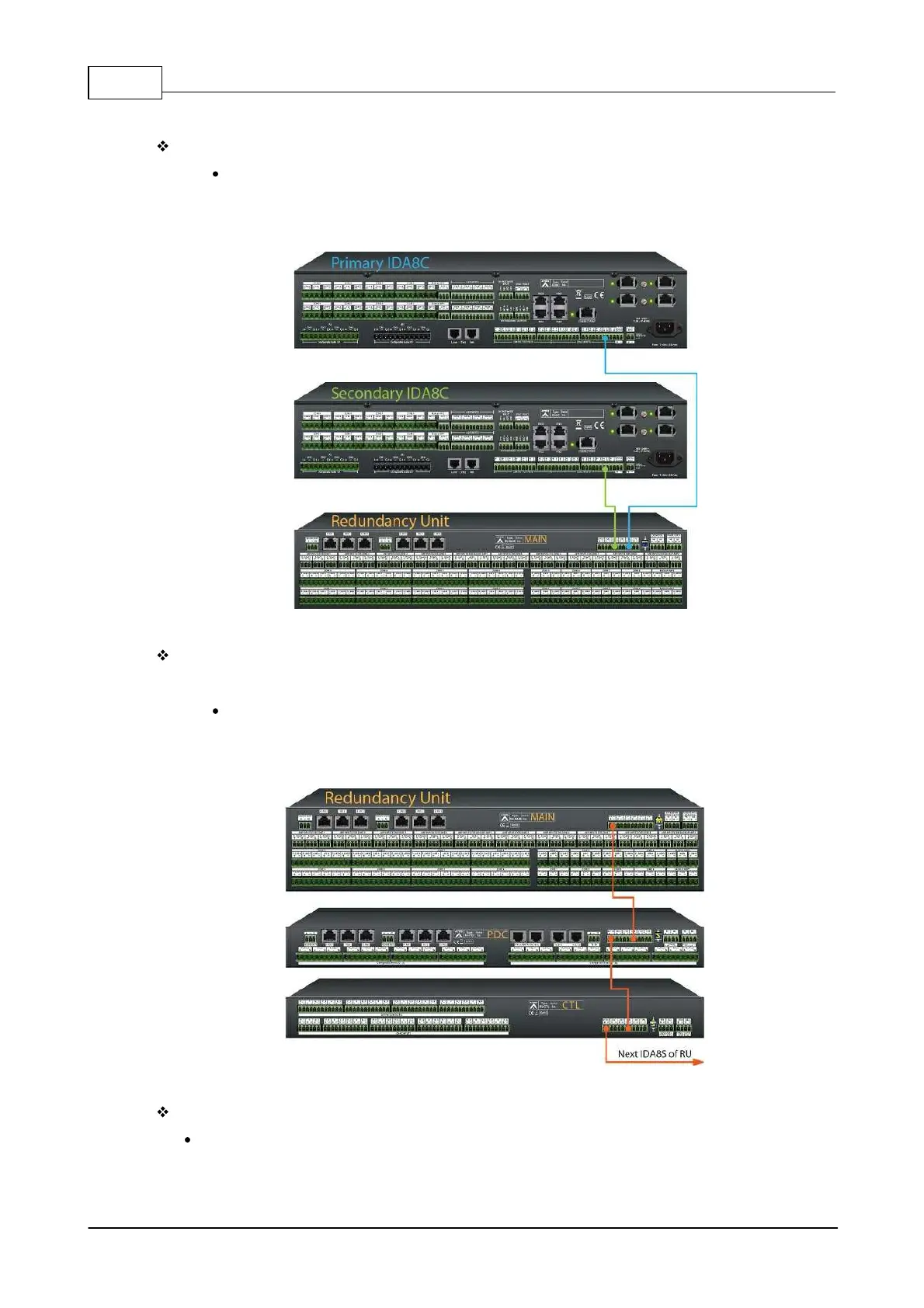

3.3.7.14 External Indication
Full & Partial Redundancy (usually on EVAC Inputs CH8)
From IDA8 to RU-MAIN:
o IDA8: EVAC Inputs CH8.
o RU-MAIN: P_ACT, S_ACT.
3.3.7.15 Expansion Out
Full & Partial Redundancy
Set RU-MAIN as the master unit and RU-CTL/PDC as the slave unit.
From RU-MAIN to RU-CTL/PDC:
o RU-MAIN: EXP_Out
o RU-CTL/PDC: S_WD
3.3.7.16 External Control
Partial Redundancy (usually on Contact Output CH8)
From IDA8 to RU-MAIN:
o IDA8: Contact Output CH8.
