IDA8 Global-Net User Manual312
© 2020, ATEÏS. All rights reserved.

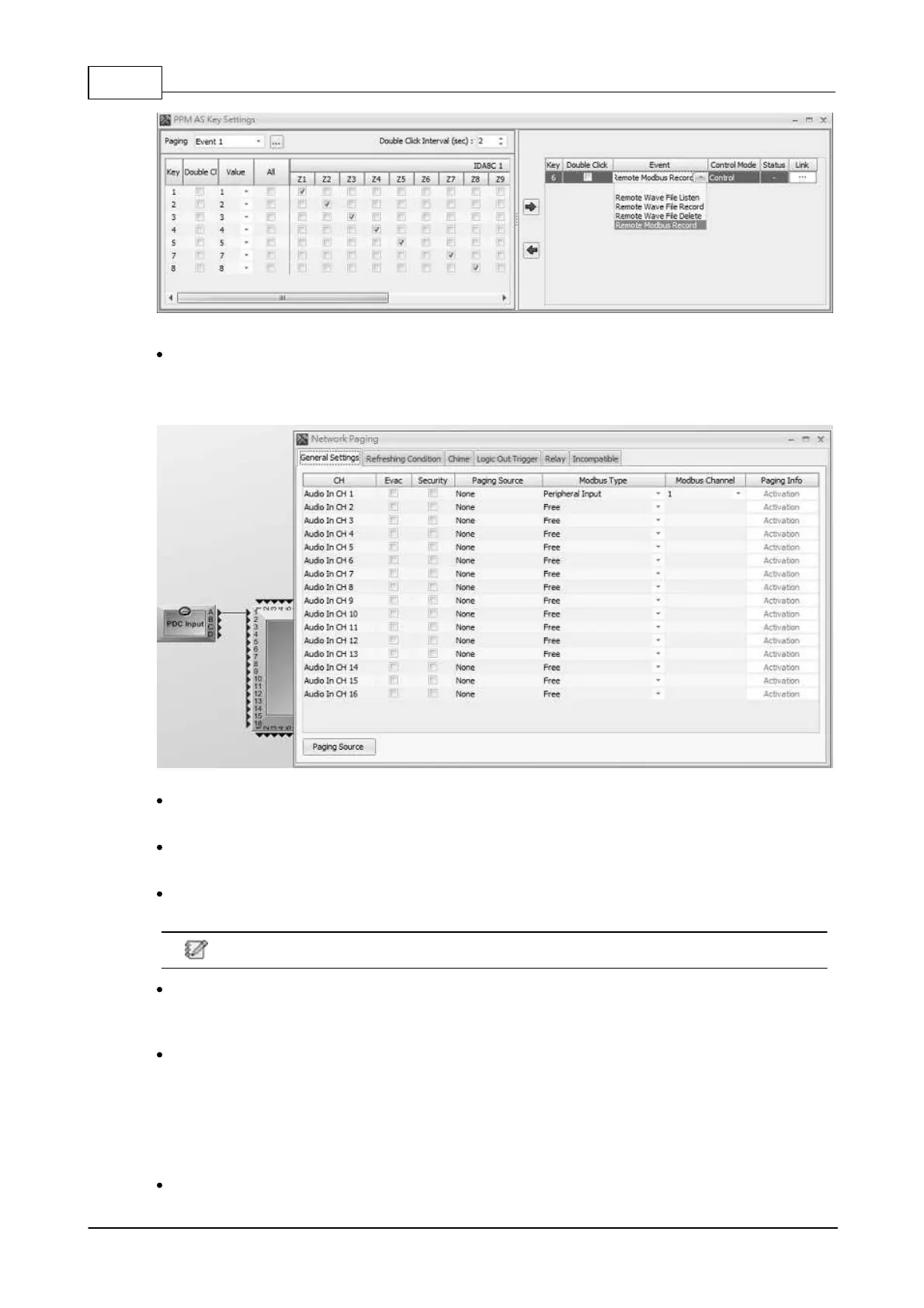

Step 3: Connect the PDC Input component to the Network Paging component, and click Network
Paging component to open its setting window. Select [Peripheral Input] option as the Modbus type
and the Modbus channel that is corresponded to the PDC port on IDA8 processor. Then click
[Compile] and [Store] button.
Step 4: Set the Modbus address as 40007. This indicates the folder of recorded file. Set 1 as the
first folder, and 2 as the second folder, and so on.
Step 5: Set the Modbus address as 40006, the address is using the hex code, therefore, this
indicates the Modbus address will be set a 040x. x stands for Modbus channel.
Step 6: Set the Modbus address as 40015 and 40016. This indicates the duration of the recording
time.
Set the default recording time as 0 to indicate the recording time is as 30 seconds.
Step 7: Now check the connected remote console, you will find the LED of the zone button that is
corresponded to the recording function is flashing, this indicates the remote console is at the
standby status of ready to record the message.
Step 8: Press the zone button that its LED is flashing to start to record, the recording time will be
ended by the duration time you set at Step 6. If you want to stop the message earlier, click the
zone button again or apply 1A00 command.
5.5.2.4 Log Loading
The Modbus client also allows to read all the logs of IDA8 system. See the following steps:
Step 1: Set the Modbus address as 40026, this indicates which IP address of Ateis-Net will be
To Next Page
