Ateis IDA8C User Manual

Technical Data 503
© 2020, ATEÏS. All rights reserved.
Evacuation Inputs (Voltage Mode)
On Voltage
Item
Minimum
Maximum
Unit
High
18
72
VDC
Low
-
0.5
VDC
Contact Outputs + EVAC, Fault State Outputs
Item
Minimum
Maximum
Unit
Voltage
-
100
VDC
Current
-
0.5
ADC

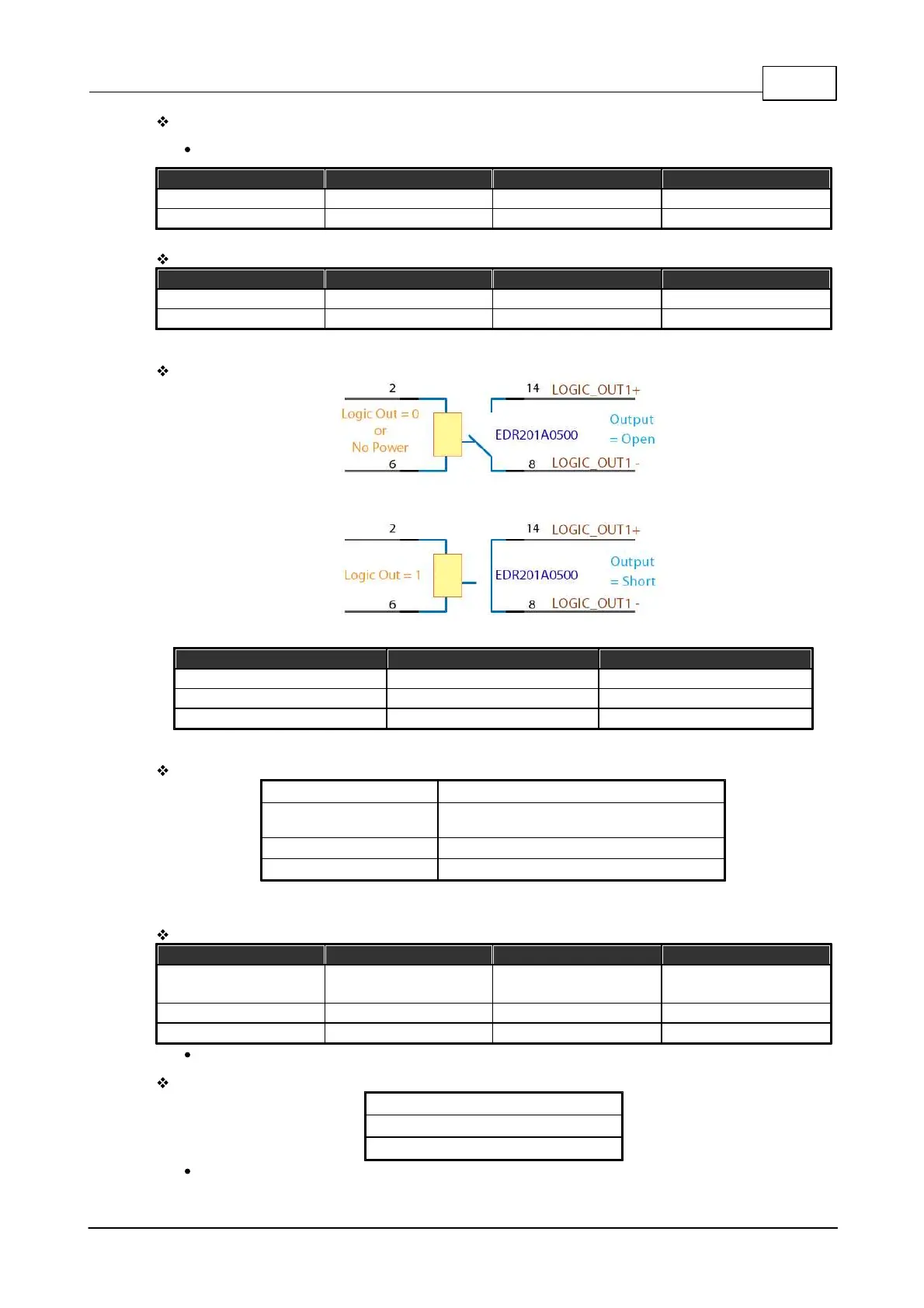

Contact Output Relay
Contact Output
Contact Form
Maximum
Unit
Carry Current
1.0
ADC
Maximum Voltage
100
VDC
Electrical Life
1 x 10^8 (Ref 10VDC, 10mA)
-
Mechanical
Dimensions(W x H x D):
436mm (W) x 44mm (H) x 285mm (L)
Weight:
4.2Kg
Colour:
RAL7016
Operating Temperature:
0°C ~ 40°C
9.1.5 IDA8C-SW
Electrical
Item
Voltage
Current Consumption
Comment
AC Input
115V~230V
1.6A@100V,
0.7A@240V
Frequency:50Hz~60Hz
DC Input
18V~30V, Typical 24V
2A
-
DC Output
18V~30V, Typical 24V
0.5A
-
AC Maximum Consumption: 48W
Amplifier Zone Outputs
Maximum level: 14 dB
Output Impedance: 50 Ohm
Bandwidth: ±1dB@ 20Hz ~ 20kHz
THD+N (Total Harmonic Distortion plus Noise)
