Signal Path Temporary :

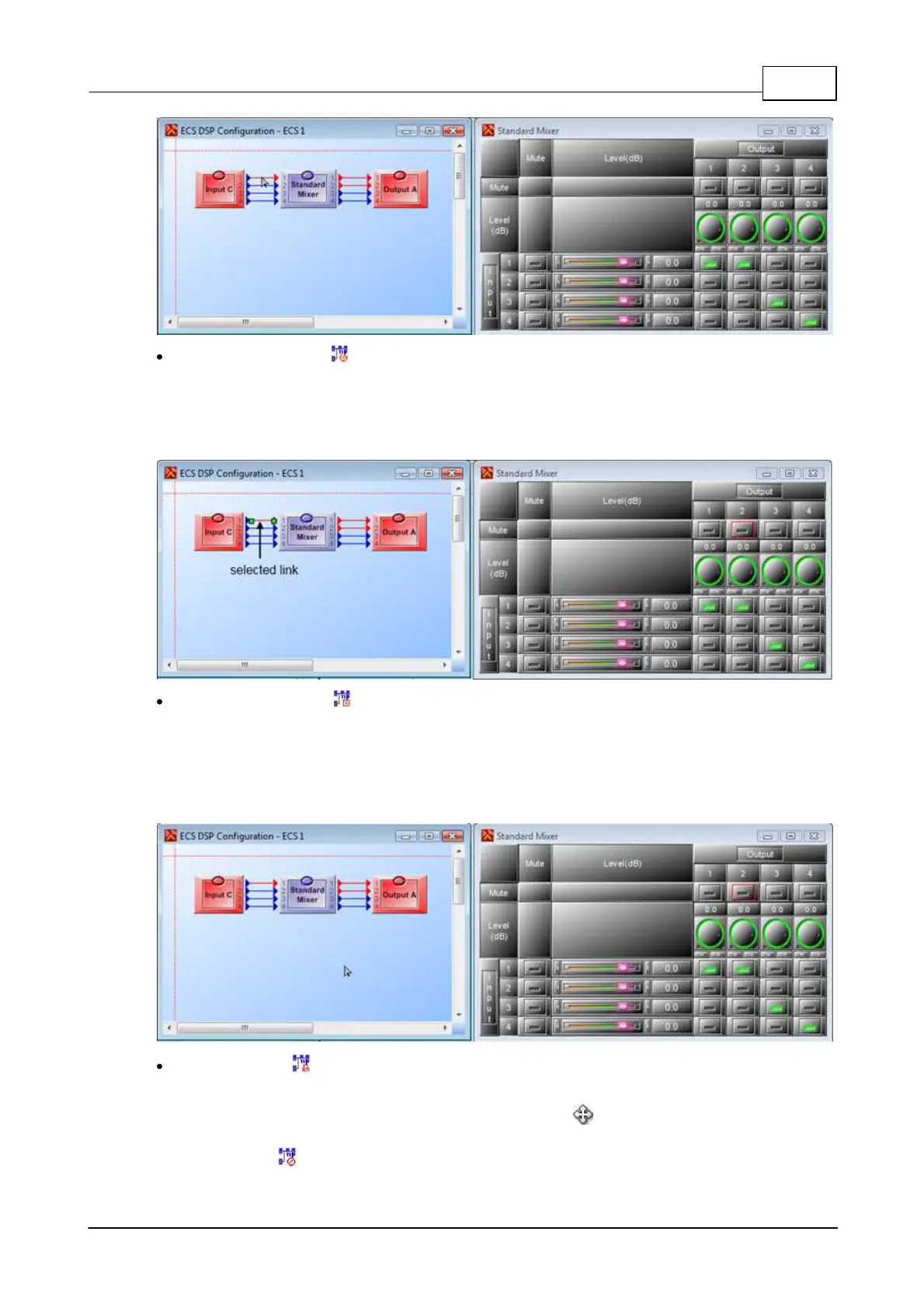

In this mode, by selecting a signal link, the signal link and the entire signal path will be
highlighted in red. If you click in a free zone, the signal path will be canceled. In the example
below, input C1 is routed in the matrix to the output 1 and 2. If you place and select the link of
channel 1, the signal path on outputs 1 and 2 will be displayed in red.
Signal Path Path Fixed :
In this mode, by selecting a signal link, the signal link and the entire signal path will be
highlighted in red. The signal path is fixed, therefore, to cancel the fixed path, click another link
or component which is not on a free zone). In the example below, input C1 is routed in the
matrix to outputs 1 and 2. If you place and select the link of channel 1, the signal path on
outputs 1 and 2 will be displayed in red.
Signal Path Lock :
In this mode, by selecting a signal link, the signal link and the entire signal path will be
highlighted in red, then the mouse cursor will change into to ask you to select the link again,
after selecting the link,the signal path will be locked. To cancel the locked path, select "Signal
Path Disable ". In the example below, input C1 is routed in the matrix to outputs 1 and 2. If
you place and select the link of channel 1, the signal path on outputs 1 and 2 will be displayed
