Ateis IDA8C User Manual

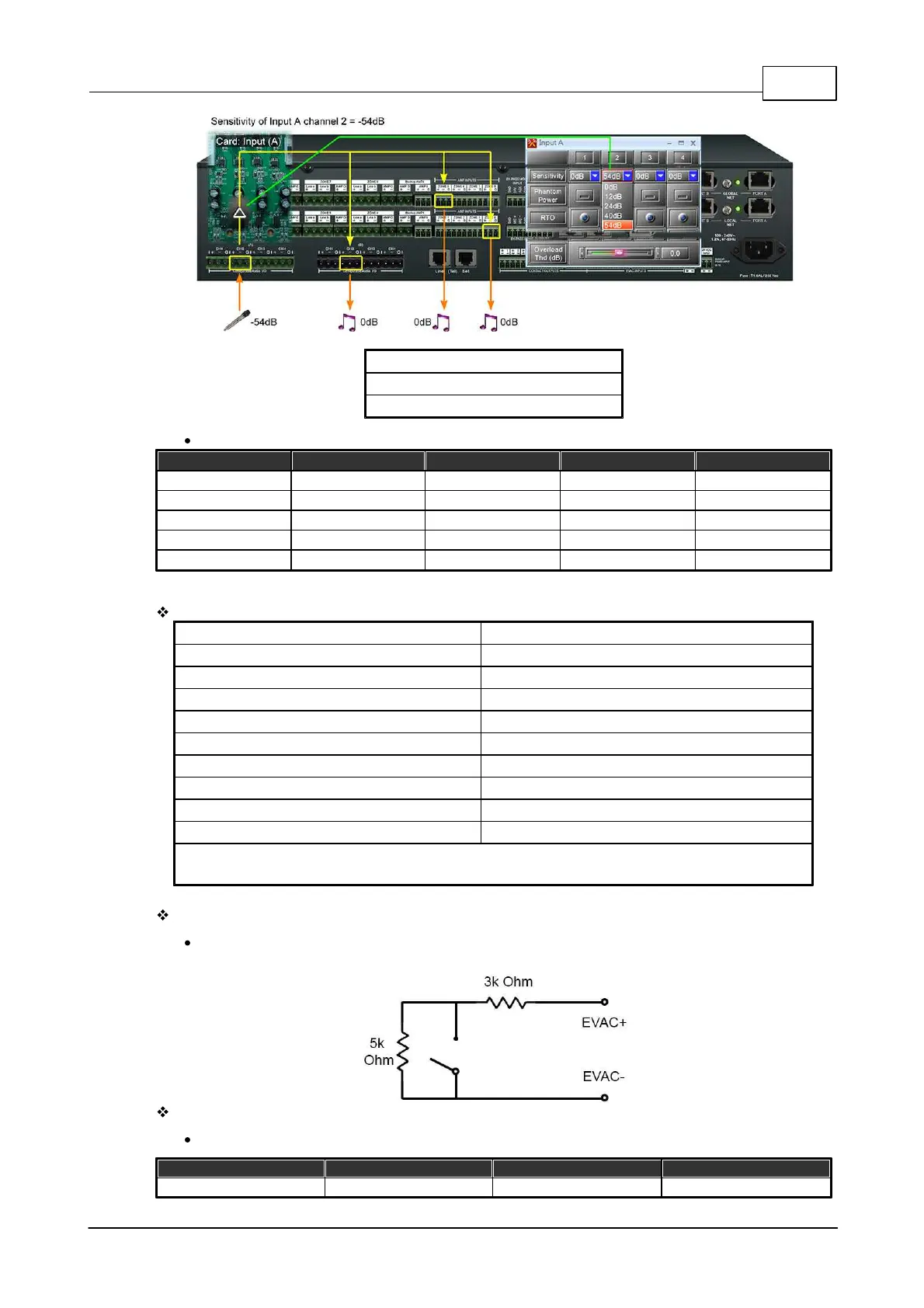

Technical Data 505
© 2020, ATEÏS. All rights reserved.
Maximum level = 14 dBu
Output Impedance =10k Ohm
Bandwidth =±1dB@ 20Hz ~ 20kHz
THD+N(Total Harmonic Distortion plus Noise)
Sensitivity
Minimum
Maximum
Unit
Frequency
0dBu
-
0.04
%
20~20kHz@+4dBu
-12dBu
-
0.06
%
20~20kHz@-2dBu
-24dBu
-
0.06
%
20~20kHz@-14dBu
-40dBu
-
0.06
%
20~20kHz@-30dBu
-54dBu
-
0.06
%
20~20kHz@-44dBu
PDC
Maximum Output Level:
10 dBu
Output Impedance:
300 Ohm
THD:
@ 1kHz at output < 0.02
Bandwidth:
@ -3dB at output = 20Hz ~ 20kHz
Noise:
@ 22Hz ~ 22kHz = -85dBu
Maximum Input Level:
16 dBu
Input Impedance:
11k Ohm
THD:
@ 1kHz at input < 0.02
Bandwidth:
@ -3dB at input < 20Hz ~ 22kHz
RS232 voltages
-6.5/+6.5
Distance up to 1000 meters for using external power supply.
Note: The distance using internal power supply is differ from each product.
Evacuation Inputs (Contact Mode)
4 status: On, Off, Open and Short
Evacuation Inputs (Voltage Mode)
On Voltage:
Item
Minimum
Maximum
Unit
High
18
72
VDC
