Autonics krn100 series User Manual

8 Parameter detail setup
68 © Copyright Reserved Autonics Co., Ltd.

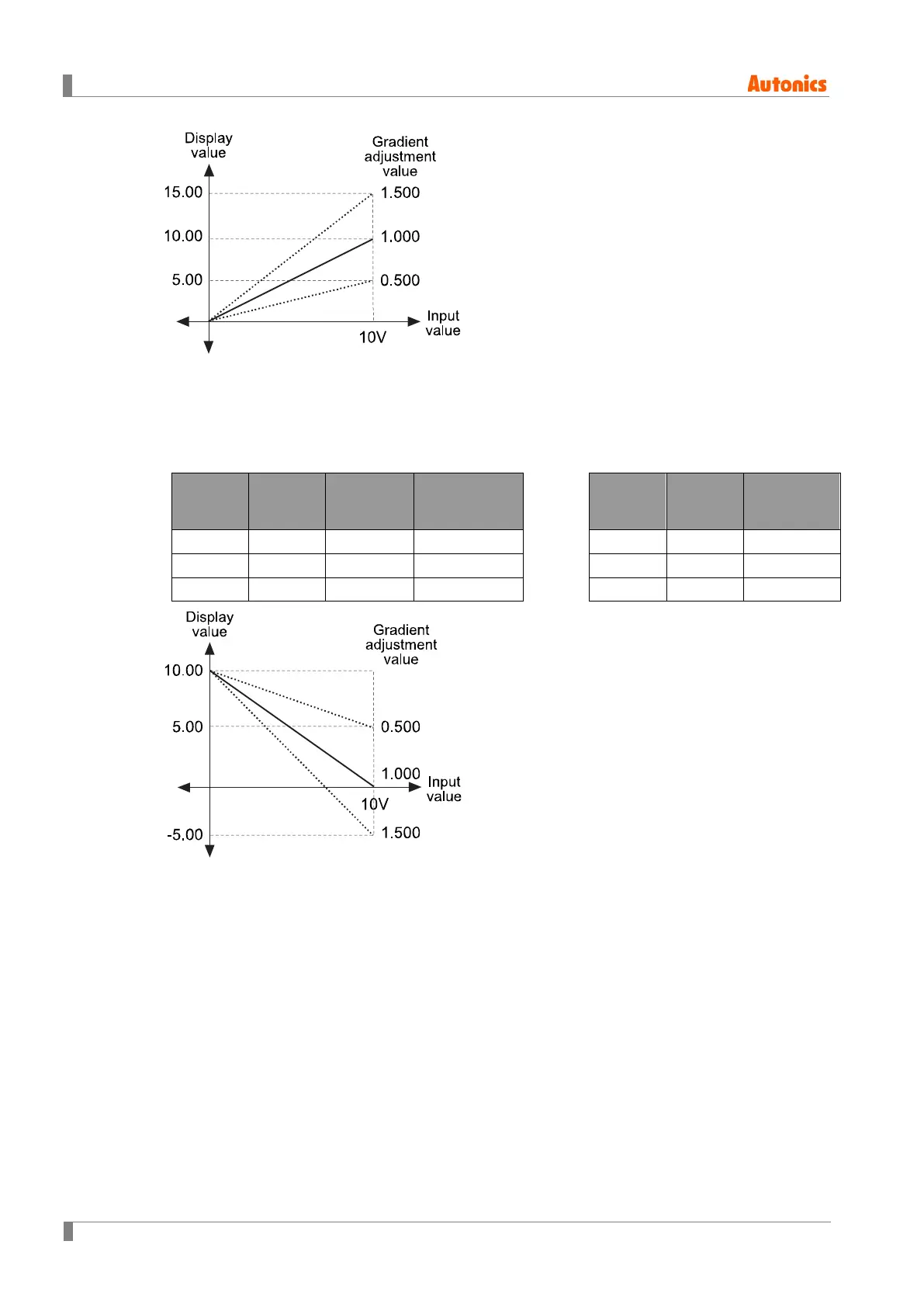

In case Low Scale(Lower limit scale value) and High(Upper limit scalevalue) are fixed, and Span
(Gradient adjustment) is only set (reverse gradient). When Input range is 0-10V, Low
Scale(Lower limit scale) value is 10.00, High Scale(Upper limit scale) value is 0.00.
If changing gradient adjustment value as 0.500, 1.000, or 1.500, display value by each changed
gradient adjustment value is below.
Lower
limit scale
value
Upper
limit scale
value
Gradient
adjustment
value
Range of
display value
Same
result
=
Lower
limit scale
value
Upper
limit scale
value
Gradient
adjustment
value
10.00 0.00 0.500 10.00 to 5.00 10.00 5.00 1.000
10.00 0.00 1.000 10.00 to 0.00 10.00 0.00 1.000
10.00 0.00 1.500 10.00 to -5.00 10.00 -5.00 1.000
