4-50 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter
Setting a 2-stage ow rate alarm
The rst alarm will be output when the instantaneous percent ow rate exceeds the
preset rst high or low limit. The second alarm will be output when the ow rate
exceeds the second high or low limits.
Important
This function can be used when the 2-stage high/low limit alarm is selected in the
contact output function.
Default setting
HI-ALM1, HI-ALM2 +115% LO-ALM1, LO-ALM2 -115%
Setting range
HI-ALM1, HI-ALM2 -115 to +115% LO-ALM1, LO-ALM2 -115 to +115%
Step

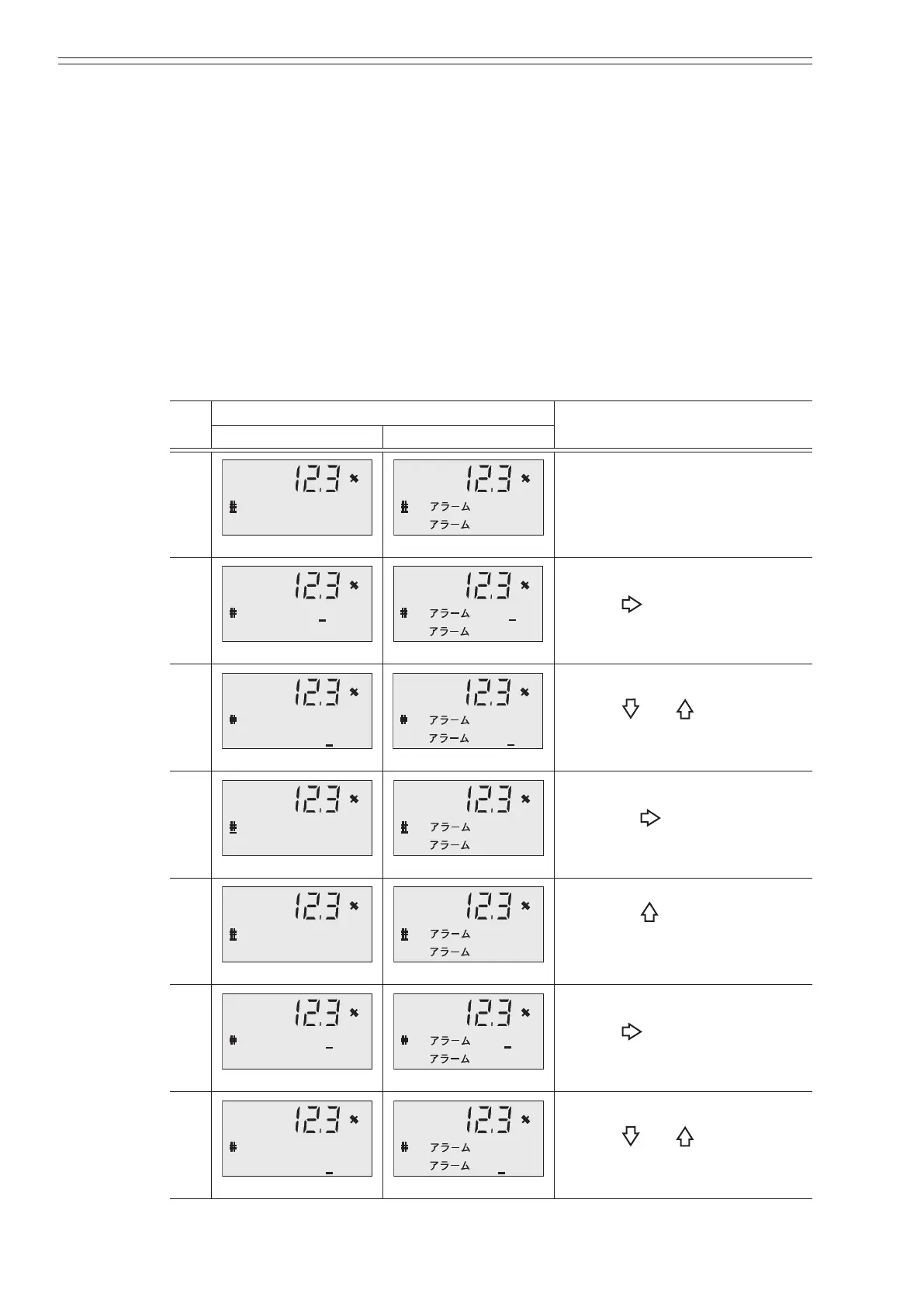

Screen
Procedure
(English) (Japanese)
1
HI-ALM1 + 100 %
LO-ALM1 - 100 %
HI 1 + 100 %
LO 1 - 100 %
Open the 2-stage high/low
limit alarm setup screen by
following the steps to enter the
engineering mode.
2
HI-ALM1 + 100 %
LO-ALM1 - 100 %
HI 1 + 100 %
LO 1 - 100 %
Use the key to move the
cursor to the desired digits.
3
HI-ALM1 + 020 %
LO-ALM1 + 010 %
HI
1 + 020 %
LO 1 + 010 %
Use the and keys to
change the numbers.
4
HI-ALM1 + 020 %
LO-ALM1 + 010 %
HI 1 + 020 %
LO 1 + 010 %
Touch the key to move the
cursor to the “#”.
5
HI-ALM2 + 100 %
LO-ALM2 - 100 %
HI 2 + 100 %
LO 2 - 100 %
Touch the key to set the
2-stage high limit alarm in the
same way.
6
HI-ALM2 + 100 %
LO-ALM2 - 100 %
HI 2 + 100 %
LO 2 - 100 %
Use the key to move the
cursor to the desired digits.
7
HI-ALM2 +090 %
HI-ALM2 - 20 %
HI 2 + 090 %
LO 2 - 20 %
Use the and keys to
change the numbers.
