Azbil Corporation Using the display panel
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-39
The high/low limit alarm can be set to ST.OUT1 and the range switching output
to ST.OUT2.
B: Range switching output and counter preset status output (2-contact output)
The range switching output can be set to ST.OUT1 and the preset status output to
ST.OUT2.
C: Range switching output and (self-check result output or empty detection)
(2-contact output)
The range switching output can be set to ST.OUT1 and the output when either a
self-check result or empty detection abnormality occurs to ST.OUT2.
D: Alarm contact output and counter preset status output (2-contact output)
The alarm contact output can be set to ST.OUT1 and the counter preset status
output to ST.OUT2.

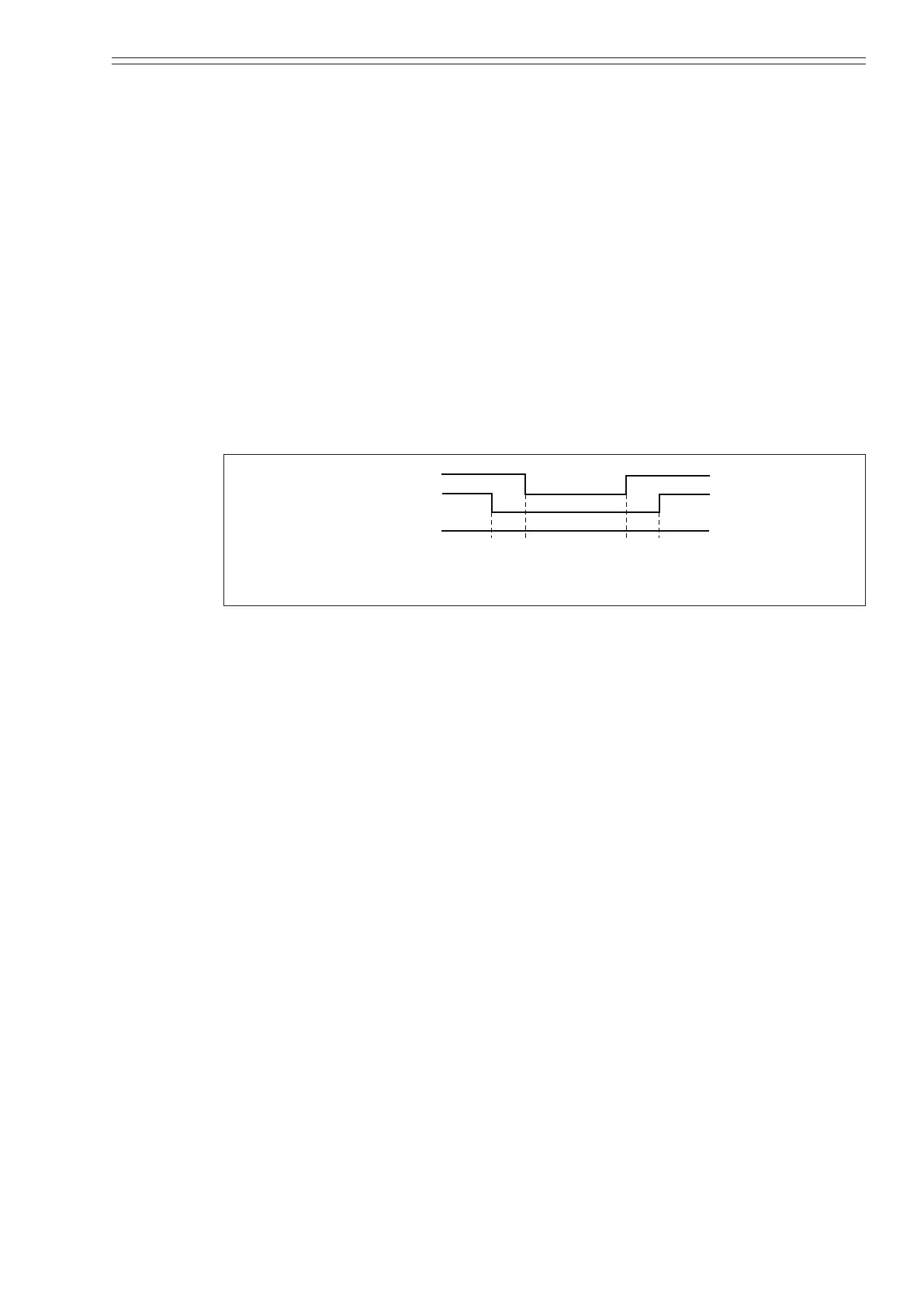

E: 2-stage ow rate alarm output
The high/low limit alarm can be set to ST.OUT1 and the 2-stage high limit alarm
or 2-stage low limit alarm to ST.OUT2.
LL LHHH
ST.OUT1
ST
.OUT2
Figure 4-4 2-stage ow rate alarm output
F: Counter preset status output and self-check result output (2-contact output)
The counter preset status output can be set to ST.OUT1 and the self-check result
output can be set to ST.OUT2.
G: Counter preset status output and empty detection function
The counter preset status output can be set to ST.OUT1 and empty detection
function can be set to ST.OUT2.
H: Range switching output and High/low limit alarm output
The range switching output can be set to ST.OUT1 and High/low limit alarm can
be set to ST.OUT2.
I: Self-check result output and empty detection function
The self-check result can be set to ST.OUT1 and empty detection function can be
set to ST.OUT2.
J: Self-check result output and High/low limit alarm
The self-check result can be set to ST.OUT1 and the high/low alarm can be set to
ST.OUT2.
K: Empty detection function and High/low limit alarm
The empty detection function can be set to ST.OUT1 and the high/low limit alarm
can be set to ST.OUT2.
