Installation Azbil Corporation
2-20 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter
To set the write protection level:
1. Remove the four screws holding the display cover to the main body of the
converter and remove the cover.
2. Locate the write protection switch.
Empty detection function switch
Write
protection
switch
Main card
C
ommnication
switch

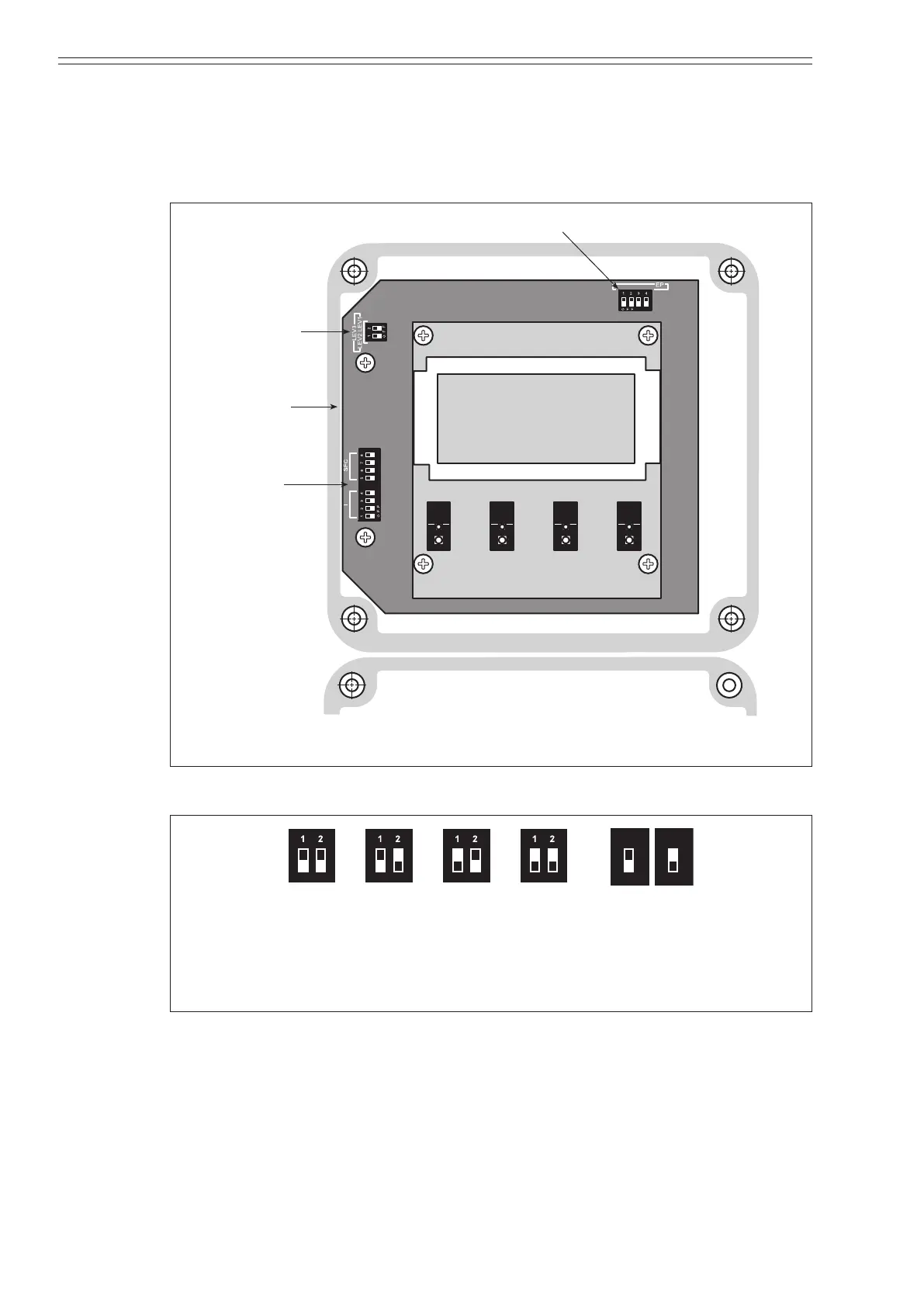

Figure 2-20 Switch locations on main card
3. Set the write protection switch positions to the required level of protection.
Write
protect
Level 0
Write
protect
Level 1
Write
protect
Level 2
Write
protect
Level 3
OFF
ON
(Move the switches to the white positions)
Figure 2-21 Write protection switch positions
