Setting the contact output status
This is used to set the contact output status for normal operation.
Important
This function is displayed when contact output has been selected.
Default setting
“CLOSE”
Setting range
“CLOSE”, “OPEN”
<For 1-contact input and 1-contact output>

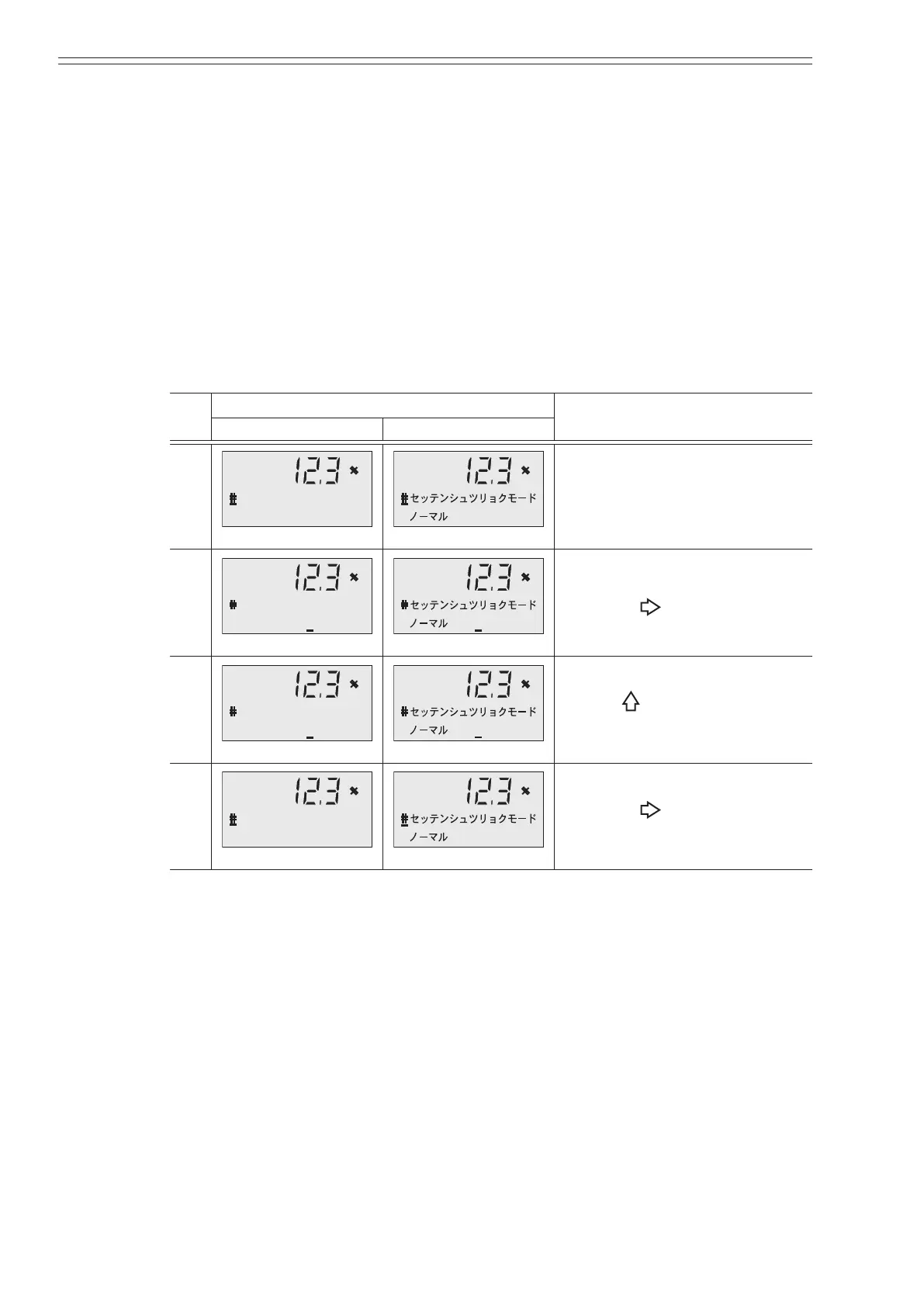

Step
Screen
Procedure
(English) (Japanese)
1
ST. OUT MODE
NORMAL CLOSE
CLOSE
Open the contact output status
setup screen by following the
steps to enter the engineering
mode.
2
ST. OUT MODE
NORMAL CLOSE
CLOSE
Touch the key
3
ST. OUT MODE
NORMAL OPEN
OPEN
Use the key to set the contact
output status.
4
ST. OUT MODE
NORMAL OPEN
OPEN
Touch the key to move the
cursor to the “#”.
